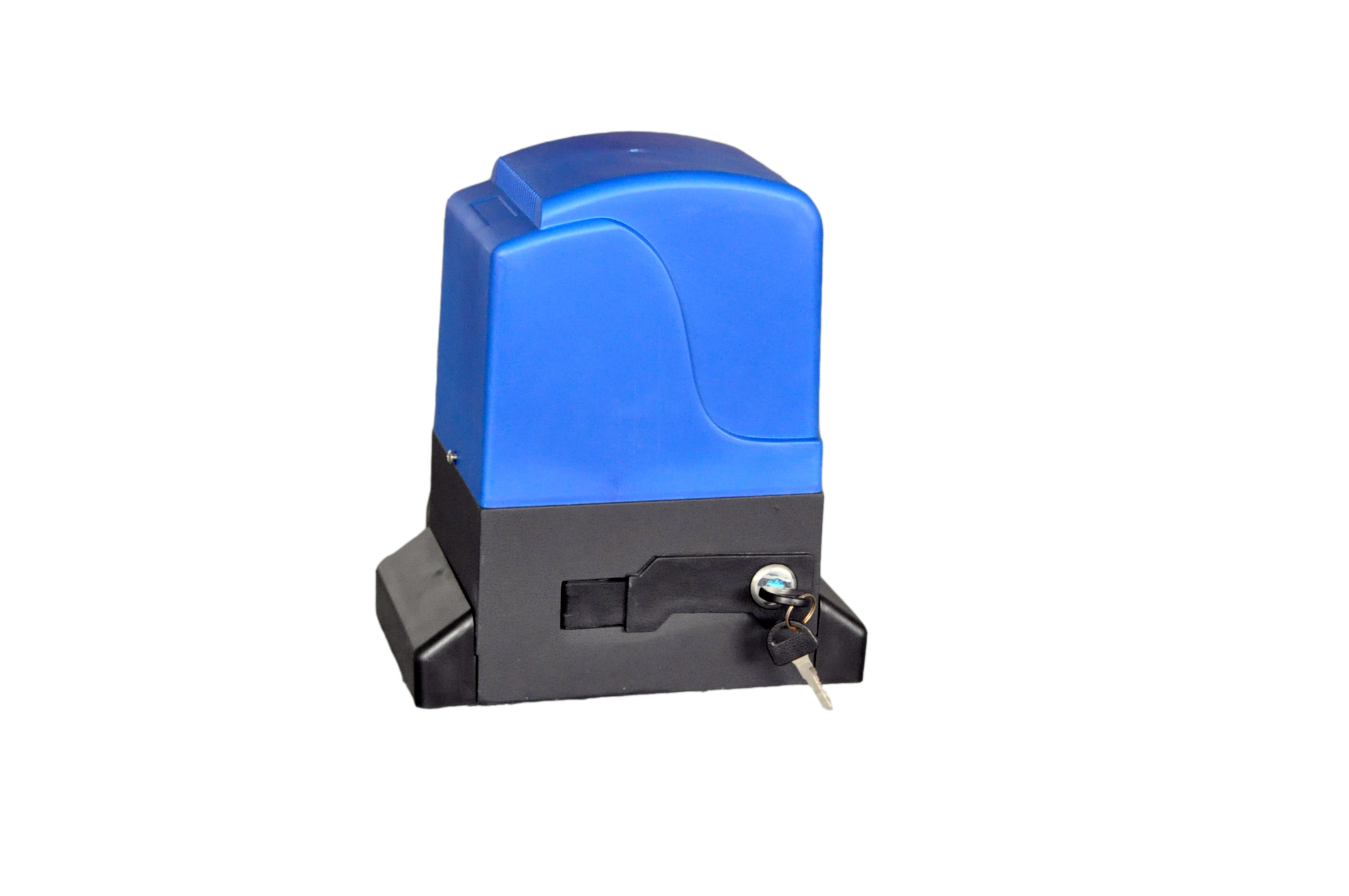

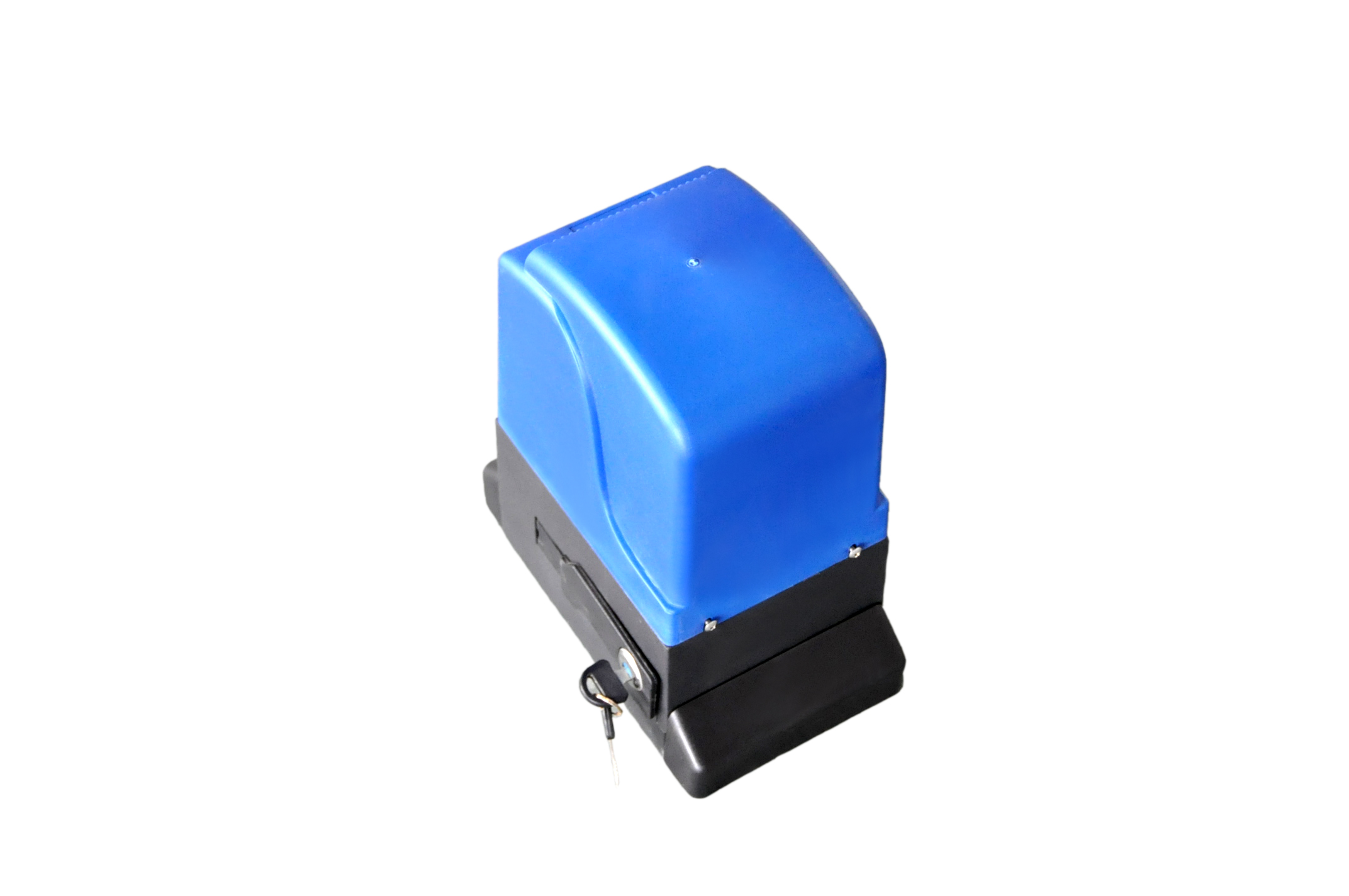

G15

Residential sliding gate operators

Up to 1500kg


  GATECH operators supply Sliding  gate motors  up to 1500Kg,

    available in 230V 110V. GATECH operators are provided with

   built-in control panel with integrated 433 MHz and

  electromechanical or magnetic limit switches.

  Reliability and safety characterize  to keep

  this operators superior quality .





De@net 2 years warranty

Remote control sliding gate motors Automatic sliding gate motorsAutomatic gate motorsRemote control gate openers


                                ►230V/50HZ◄


    ►230/50HZV single-phase with encoder for position management  and obstacles detection

   ►Self-locking operators with electromechanical or magnetic limit switches

   ►  Speed adjustment and slowdown in opening and closing

   ► Soft start and soft stop for all versions

   ►Internal fan to ensure an intensive use


15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg






                                   ►110V/60HZ◄


    ►110V/60HZ  single-phase with encoder for position management  and obstacles detection

   ►Self-locking operators with electromechanical or magnetic limit switches

   ►  Speed adjustment and slowdown in opening and closing

   ► Soft start and soft stop for all versions

   ►Internal fan to ensure an intensive use




15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg





                         Automatic sliding gate operators 1500kg




Model No

G15

Power supply

220V or 110V+/-10%50Hz-1 Phase

Power of Motor

500W

Output Pinion

19 Tooth Mod 4

Operating Speed

12m/min

Motor Thermal Protection

Electronic

Maximum Gate  Length

20m

IP Rating

44

Shipping Mass of Unit

17kg

Working environment

-35℃~65


15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg







                            Gate operators accessories



image.png                                                      DSC08040.jpg

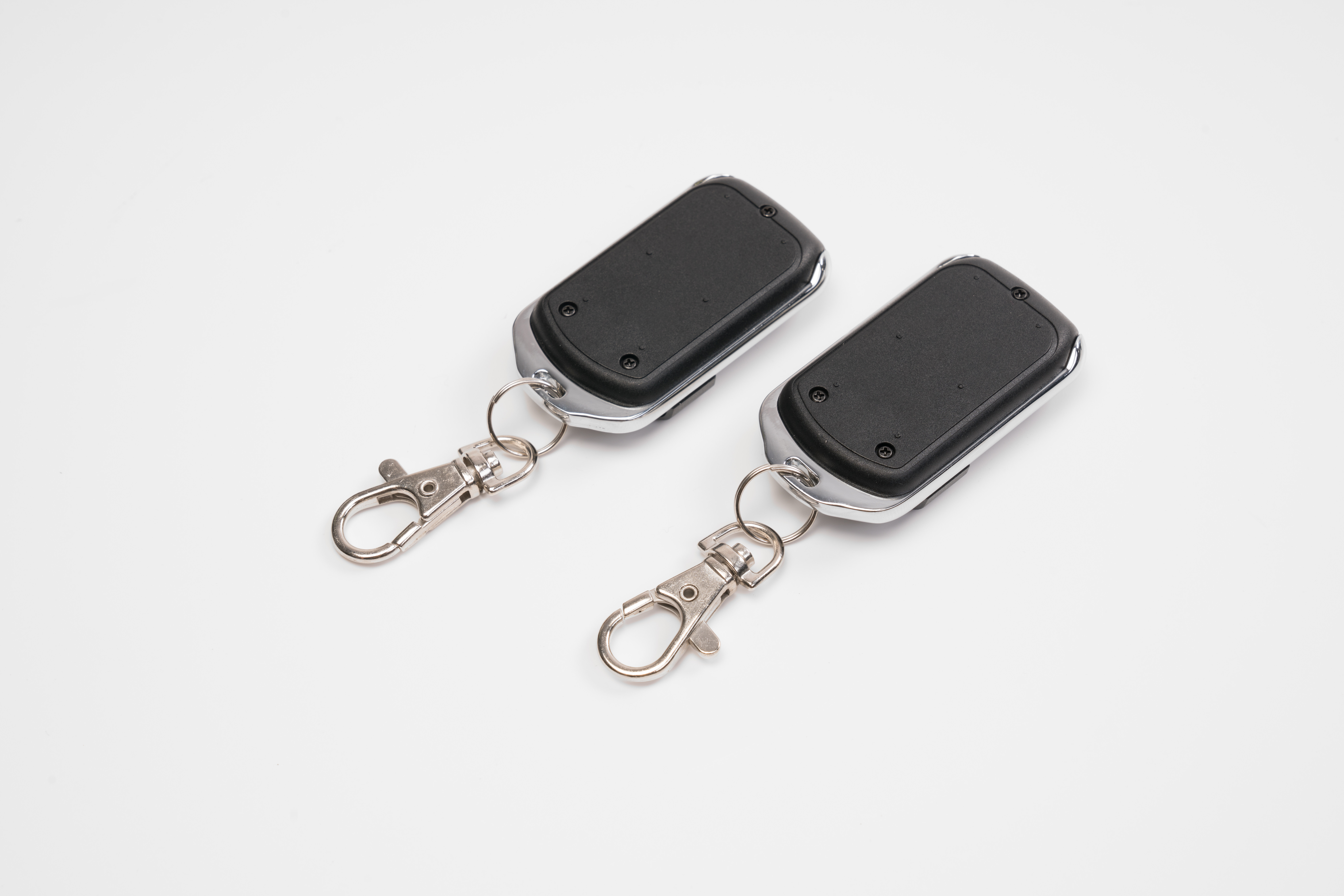

       Photocell                                                                 Transmitter




image.png                                                         DSC_0816.JPG

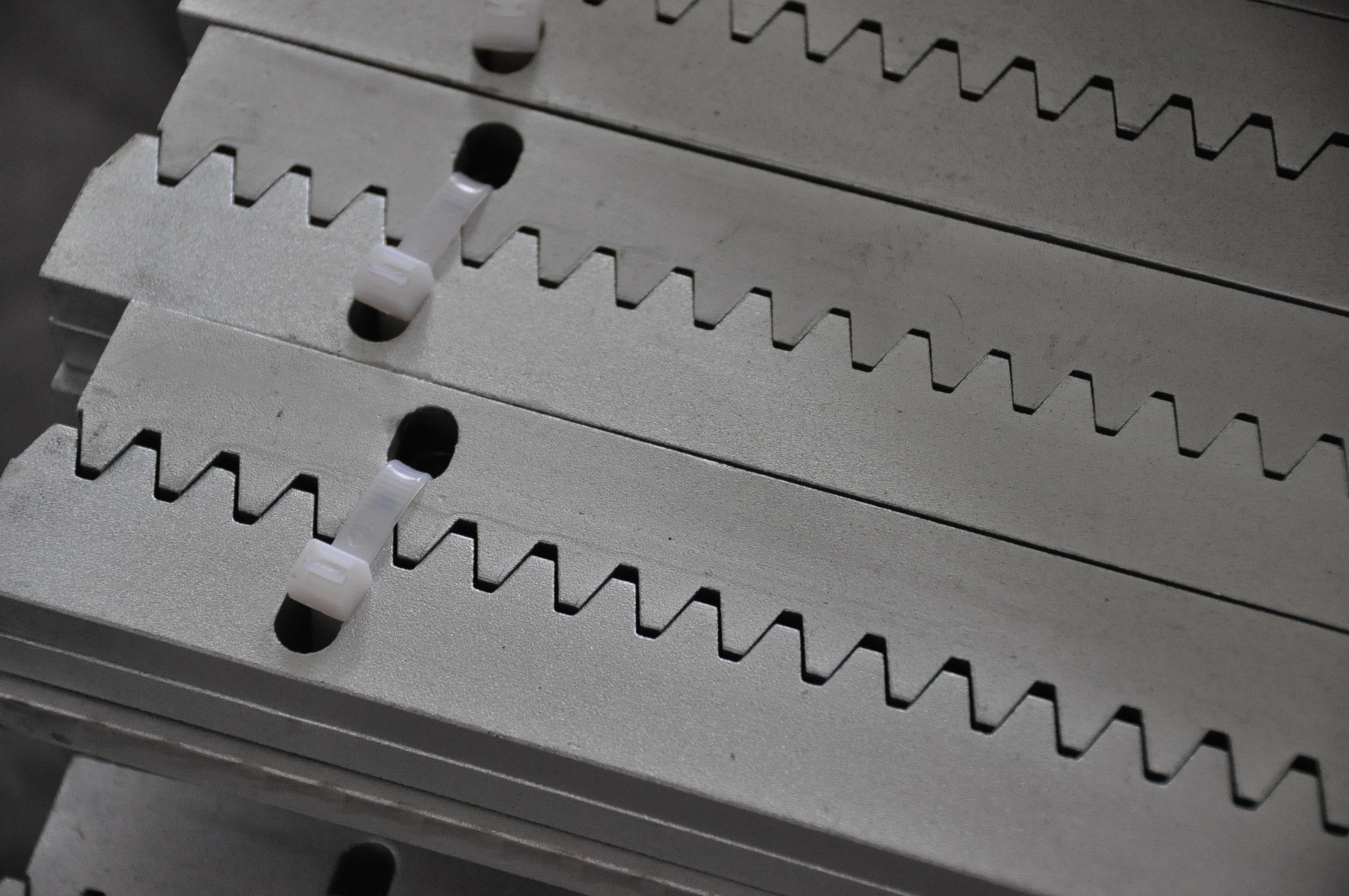

     Flash lamp                                                                           Gear rack 1000*30*8MM /1000*30*10MM/1000*30*12MM

   220V /24V /12V                                                                  1000*22*22MM  2000*22*22MM

15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg

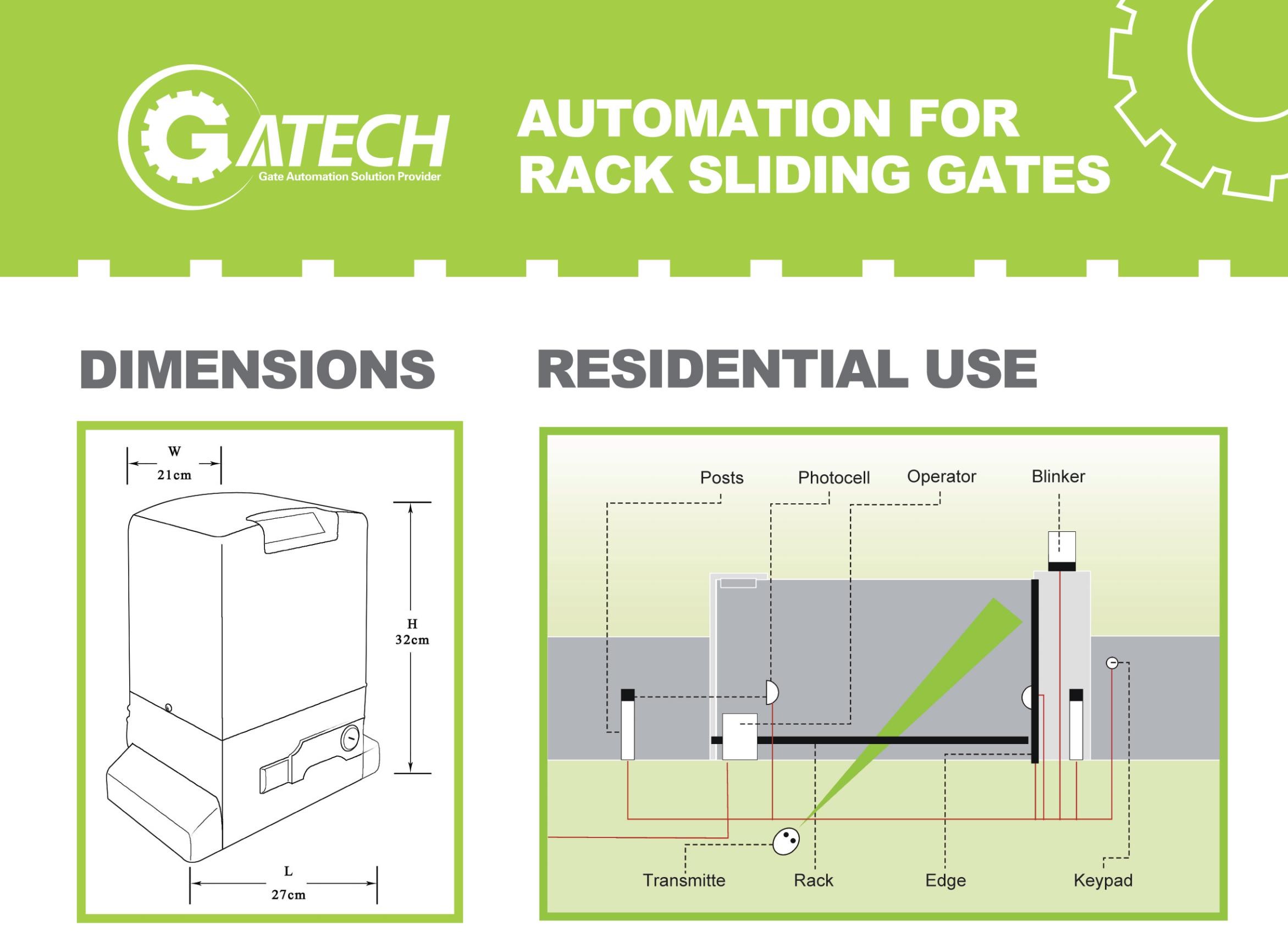

Typical installation
Documents

G15   Residential sliding gate operators
