GR10

Residential Rolling shutter motors

Up to 1000kg

Rolling shutter motor are suitable for  industrial, residence, shop and so on.

► Selected elements ensure safe working and reliability

 Simple pleasing design of structure

► Safety Device in of chain-break

 Good drive/size ratio

►Small oscillation

 Low noise

 Lightweight

De@net2 years warranty

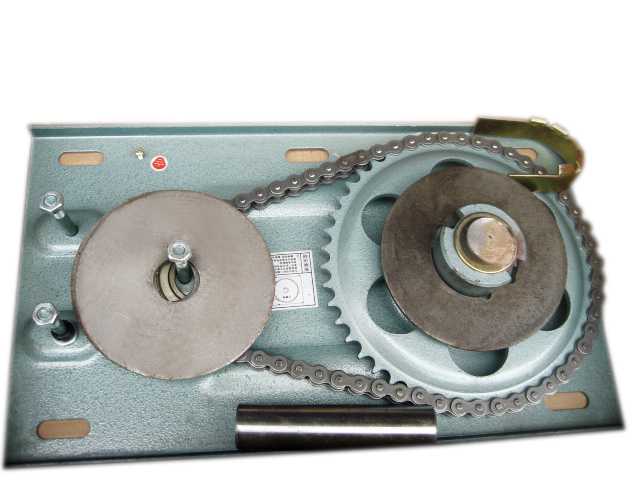

1000kg rolling shutter motors steel base for rolling shutter motorsspare parts for rolling shutter motorsrolling doors for rolling shutter motors


                 ►230V/50HZ◄


Simple pleasing design of structure Good drive/size ratio

Selected elements ensure safe working and reliability Low noise ,Small oscillation ,Small consumption

Light weight ,small size, easy installed,long life,stable function. Safety Device in of chain-break

Easy manual operation when power off Protect high current when the motor working

Including remote control device, can long distance remote operation Including reserved power( two 12V/4.5Ah battery), when

   the city electricity cut off, .can be automatically converted and supply power to ensure the motor can up and down normally about 20 times

Infrared protection device can be connected

Motor drived by DC 24V, makes safer and more reassured



15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg





               ►110V/60HZ◄


Simple pleasing design of structure Good drive/size ratio

Selected elements ensure safe working and reliability Low noise ,Small oscillation ,Small consumption

Light weight ,small size, easy installed,long life,stable function. Safety Device in of chain-break

Easy manual operation when power off Protect high current when the motor working

Including remote control device, can long distance remote operation Including reserved power( two 12V/4.5Ah battery),

when the city electricity cut off, .can be automatically converted and supply power to ensure the motor can up and

down normally about 20 times

Infrared protection device can be connected

Motor drived by DC 24V, makes safer and more reassured



15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg





                   Rolling shutter motors 1000kg


Rated output torque

809(N.M)

Rated output speed

4(r/min)

Motor power

400(w)

Rated  voltage

220/50(V/HZ)

Rated current

4.9(A)

Continus working time

8(min)

Durm dube outer diameter

165(mm)

Max lifting force

1000(kg.f)

Max lifting height

8(m)


15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg





                  Rolling shutter motors accessories

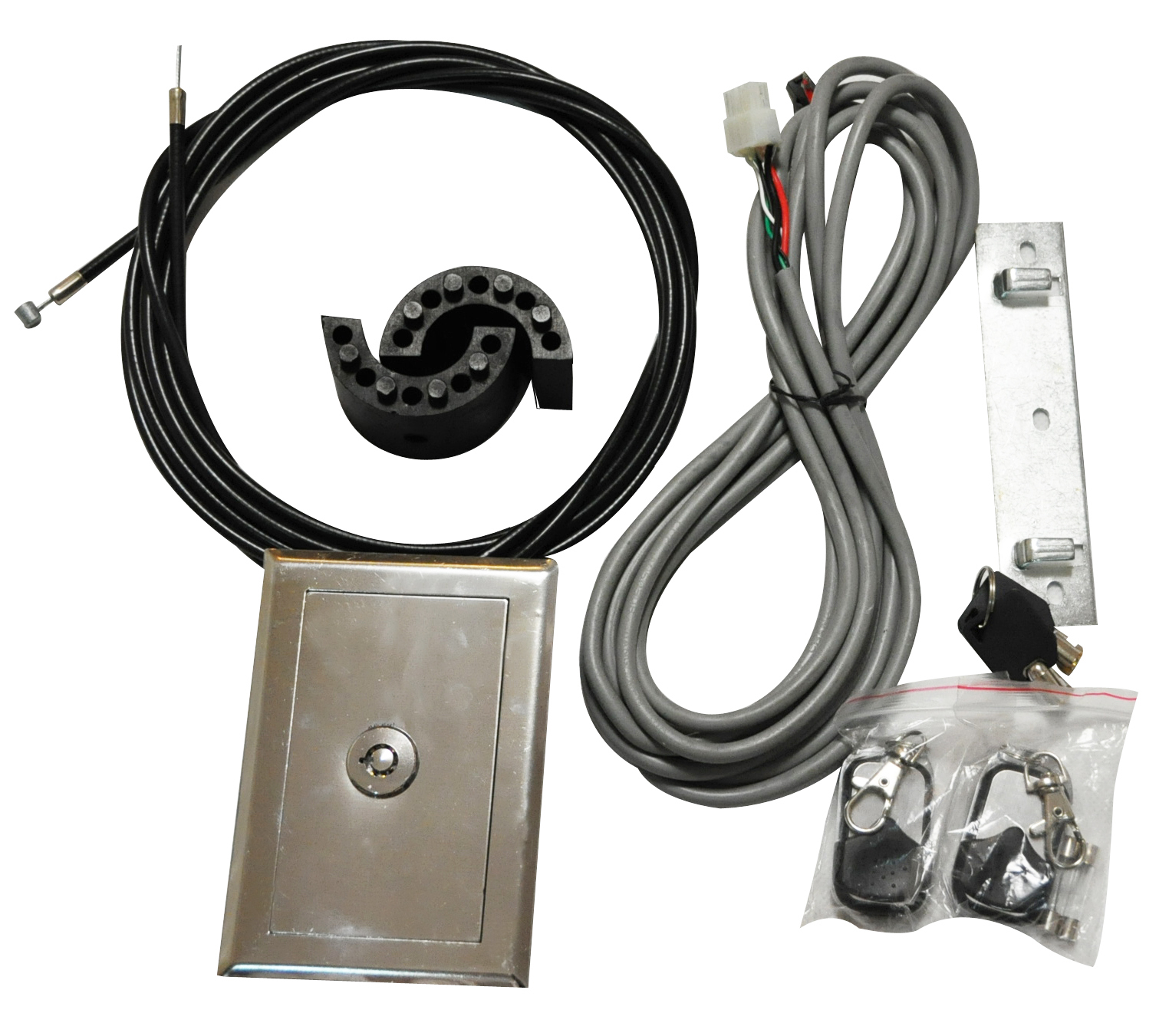

Remote controls and control box










15653332227067442.png 15653322025801817.jpg 15653321966830137.jpg

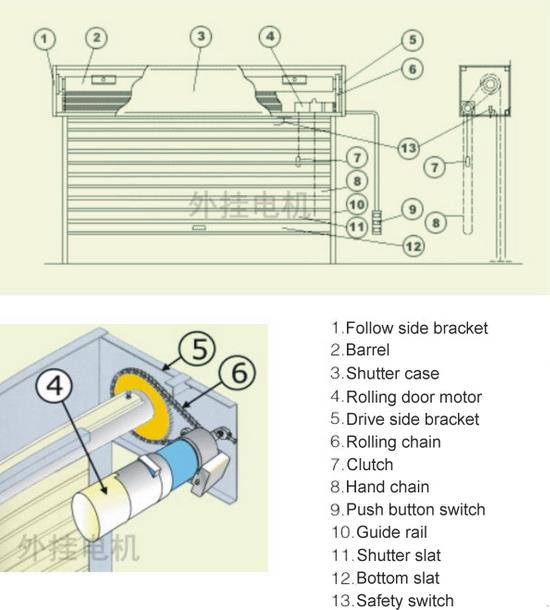

Typical installation
Documents
GR10   Residential Rolling shutter motors
