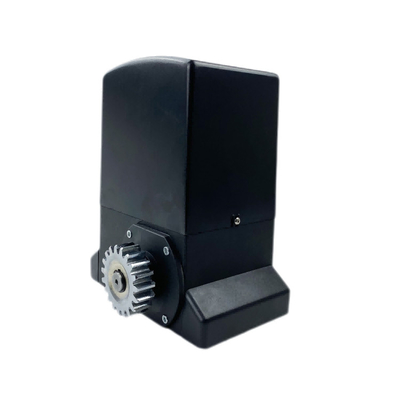

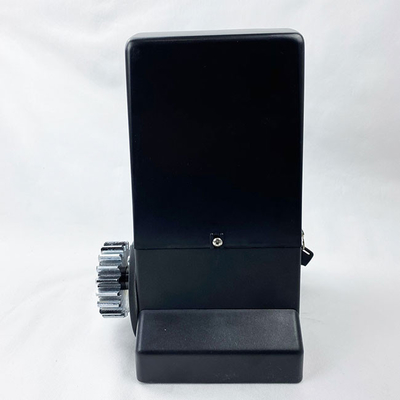

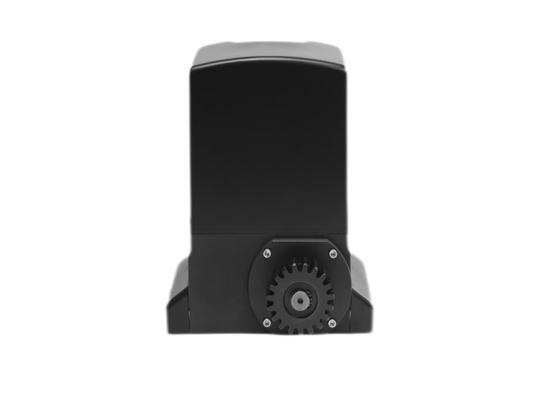

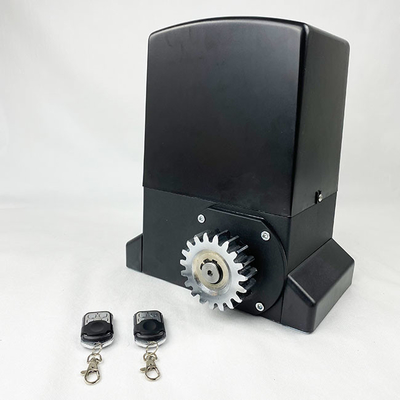

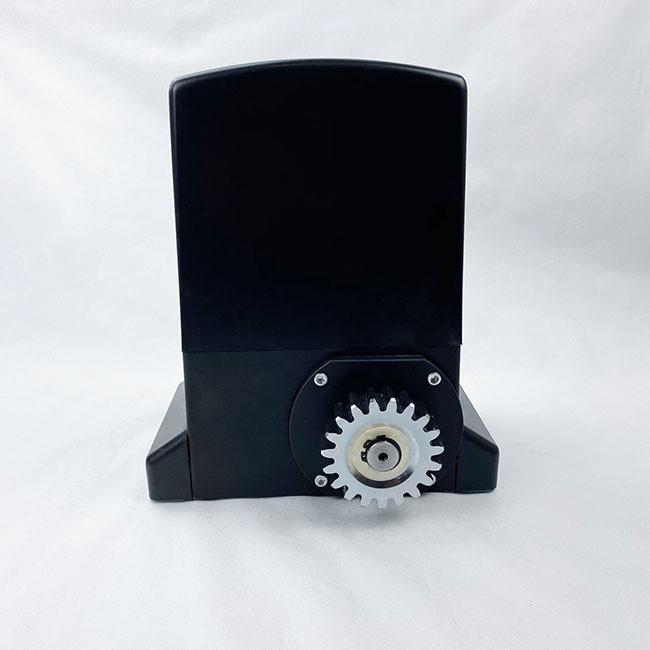

Galvanized Automatic Electric Gate Opener

Galvanized Automatic Electric Gate Opener

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Gate Motors Sliding Open Style: Sliding
Color: Blue,Red,Black,Orange Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Public Building,Store
Usage: Hospital,Hospital Size: Width 27cmX Height 32cm
Advantage: Easy Installation, Easy Life,Trustworthiness Alarm Lighting: Optional
High Light:

Galvanized Automatic Electric Gate Openers

,

Electric Gate Openers For Driveways 370W

,

370W Aluminum automatic sliding gate motor

Product Description

Light Weight AC 800kg Automatic Sliding Driveway Gate Openers Residential Use



Our system allows you to easily open the sliding door with the help of a remote control to save time, at the same time it can work integrated with an automatic access control system. Including all kinds of maintenance and technical assistance to solve your problems with GATECH sliding gate system.



Easy to install, the GATECH range of sliding door openers is the perfect choice for automating any type of sliding door; in fact, thanks to the wide range of models, customers can choose the most suitable sliding door opener depending on the width of the door being automated.



                                                             G8  Residential Use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 370W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 15 kgs(~ 32 Ibs)
Maximum Gate Mass 800 kgs (~ 1764 lbs)



GATECH operators provide sliding door motors up to 800kg in 220V and 110V versions.

G8 automatic sliding gate operator is equipped with a built-in control panel, built-in 433 MHZ and electromechanical or magnetic limit switch.

Reliability and safety features enable the operator to maintain excellent quality.



G8 series is light duty gate motors and support standard sliding gate with 800kg in weight.Galvanized steel gear rack is one of the necessary for this gate motor to work.



Light Weight Sliding Gate Operators Control panel

Galvanized Automatic Electric Gate Opener 0Galvanized Automatic Electric Gate Opener 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 800kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
