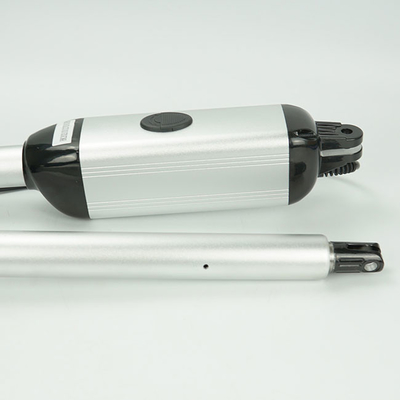

600kg Automatic Swing Gate Opener Dual Swing Gate Motor 3200RPM

600kg Automatic Swing Gate Opener Dual Swing Gate Motor 3200RPM

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GPK03D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Automatic Door Operators Power Supply: AC 220V +/- 10%
Color: Sliver Name: Swing Gate Opener Automatic Door Operator
Material: Stainless Steel And Aluminum Alloy Protection Class: IP44
Usage: For Swing Gate Rated Power: 45W*2
Motor: 24 V DC Open Stype: Swing
High Light:

600kg Automatic Swing Gate Opener

,

Dual Swing Gate Motor 3200RPM

,

12 Volt Electric Gate Opener 3200RPM

Product Description

24v Dc Dual 600kg Automatic Swing Gate Openers For Farm Gates​



The GATECH swing gate opener is a high quality product suitable for home and retail locations. If you like to save space for your swing automatic gates, then you'll want our swing gate openers. This is a recommended solution as the ram operator for the swing gate does not have any joints.



600kg Automatic Swing gate openers Technical Specifiation

Output power of motor 12VDC/24VDC 45W
Rotational speed 3200 RPM
Rod's running speed 1.6cm/s
Rod's max travel 300mm 400mm 500mm
Max leaf length 3mX2
Max single-leaf weight 300Kg
Environment Temperature range -20C~+55C
Protection class IP54
Continual run time 5min



Energy saving mode reduces operating costs

Easy release motor clutch with key lock for manual operation

Automatic swing door motor kit

Articulating arm kit for single or double swing doors. Easy to install and setup

Motor voltage: 24VDC

Supply voltage: 240VAC

Maximum gate weight: 600kg

Maximum gate length: 3 metres

Built-in transformer insdside of control box

Easy cable connection for each terminal



Control box for swing gate motors



600kg Automatic Swing Gate Opener Dual Swing Gate Motor 3200RPM 0600kg Automatic Swing Gate Opener Dual Swing Gate Motor 3200RPM 1





FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
