White 1000kg Auto Swing Gate Opener 60W 24V DC IP54 1500RPM

White 1000kg Auto Swing Gate Opener 60W 24V DC IP54 1500RPM

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GPK05D

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Automatic Door Operators Power Supply: AC 220V +/- 10%
Color: White Name: Swing Gate Opener Motor Double Motor Swing Gate Opener
Material: Stainless Steel And Aluminum Alloy Protection Class: IP44
Usage: Courtyard Rated Power: 60W*2
Motor: 24 V DC Open Stype: Swing
High Light:

1000kg Auto Swing Gate Opener


Auto Swing Gate Opener IP54


24V Gate Motor 1500RPM

Product Description

Heavy Duty 24v Dc 1000kg Dual Swing Gate Openers For Residential And Farm Gates



The GATECH operating system uses the latest technology and is easy to install and set up. Our kits can operate automatic swing gates from 2m to 6m for heavy industry. Complete supporting technical manual to make the motor run very fast, efficient, smooth and quiet. Optional battery backup and solar power allow operation in areas where mains power is difficult to use, allowing continuous operation even during power failures.


1000kg Automatic Swing gate openers Technical Specifiation

Output power of motor 12VDC/24VDC 60W
Rotational speed 1500 RPM
Rod's running speed 1.6cm/s
Rod's max travel 300mm 400mm 500mm
Max leaf length 5mX2
Max single-leaf weight 500Kg
Environment Temperature range -20C~+55C
Protection class IP54
Continual run time 5min


Suitable for single or double swing gates

Motor soft start and soft stop

Speed and strength adjustments

Energy saving mode reduces operating costs

Easy release motor clutch with key lock for manual operation

Automatic swing door motor kit

Articulating arm kit for single or double swing doors. Easy to install and setup


PCB for 1000kg swing single arm openers

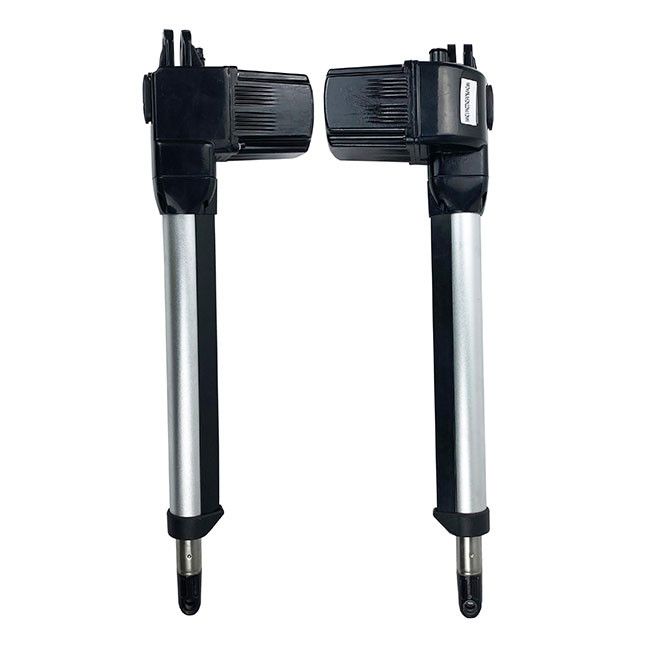

White 1000kg Auto Swing Gate Opener 60W 24V DC IP54 1500RPM 0

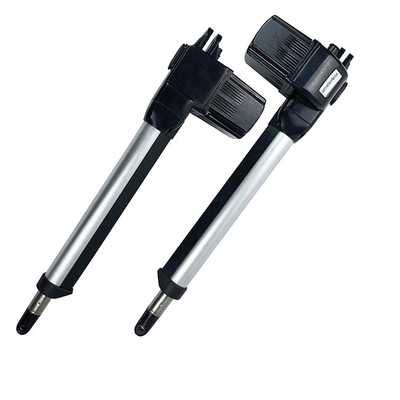

White 1000kg Auto Swing Gate Opener 60W 24V DC IP54 1500RPM 1

swing gate opener automatic door operator automatic gate opener swing automatic gate openers swing gate motor 220 volts swing gate opener swing gate opener motor double motor swing gate opener automatic swing gate opener swing gate opener heavy diy swing gate opener swing




What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.


What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.


How long is your product warranty?

Two years when you got goods.


What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
