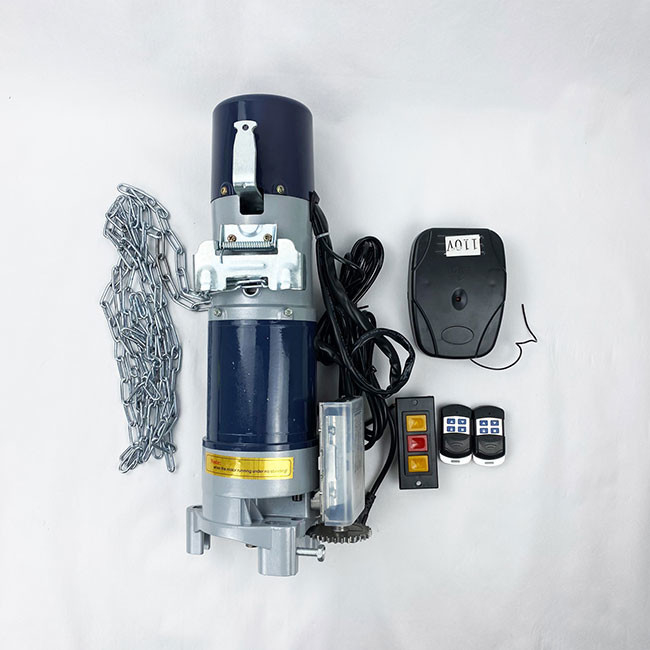

1000W 2000kg Industrial Roller Door Motors
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GR2000AC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | Industrial Roller Door Motors | Color: | Red |
|---|---|---|---|
| Phase: | Three Phase,Single Phase,Single/Three-phase,Single-phase | Product Name: | Electric Roller Shutter Door Motor Rolling Door |
| Warranty: | 1 Year | Material: | Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS |
| Application: | Residential Garage Doors | ||
| High Light: | 1000W 2000kg Industrial Roller Door Motors,Industrial Roller Door Motors 12m,1000W 2000kg automatic roller gate opener |
||
Product Description
Universal Garage Door 2000kg Heavy Duty Rolling Shutter Motor Commercial Use
Gatech roller shutter motors have been exported continuously for more than ten years and are our best selling products, it uses the most advanced production technology and the latest technology to provide reliability in multiple functions
The design of the GATECH system combined with the continuous lubrication of the mechanical components ensures a very long trouble-free service life. The motor and gearing provide smooth performance in a wide variety of operating conditions.
| Model | AC 2000kg rolling door motor |
| Power supply | 220V/AC 50Hz |
| Rated output torque | 2450N.m |
| Max lifiting force | 2000kg |
| Rated output speed | 3.6 r/min |
| Motor power | 1000W |
| Max lifiting height | 12m |
| Continuos working time | 15min |
| Warranty | 1 year |
| Place of Origin | China |
| Application | Workshop, warehouse, factory, shopfront, supermarket, shopping mall, garage doors |
| Function | control rolling door |
| After-sale Service | Online technical support, Onsite Installation |
| Limit switch | 2 or 4 |
| Relay | 2 or 4 |
| Design Style | Industrial |
GR2000A
Supporting garage door up to 2000kg in 220V version

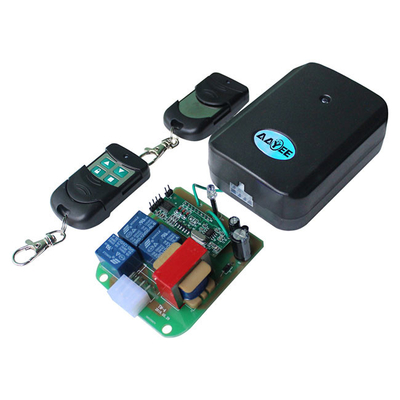

Built-in 433 MHZ and electromechanical limit switch;

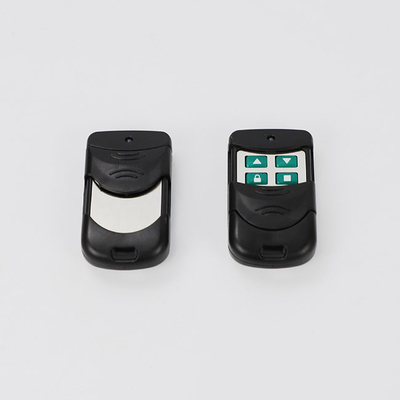

Packed in 2 transmitters with 50m long range
100% copper wire inside the motor.
Low noise, small vibration and low power consumption
Motor overheating protection device (140℃);
Imported electrical components, safe and stable;
Cooper wire for rolling shutter
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
