Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V

Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GPK05D

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Double Swing Gate Operator Type: Sliver,Golden,Grey
Power Supply: AC 220V +/- 10% Loading: 1000kg
Color: Sliver,Golden,White Material: Stainless Steel And Aluminum Alloy
Protection Class: IP44 Usage: Home Decration,Residential
Rated Power: 45W Motor: 24 V DC
Open Stype: Swing
High Light:

Double Arm Ac Swing Gate Opener


1000Kg Dual Swing Gate Opener


Dual Swing Gate Opener AC 220V

Product Description

High Quality 1000Kg Powerful Double Arm Ac Swing Gate Opener



Every homeowner wants to feel safe and secure in their home, and automatic swing doors are one of the best ways to improve the security of your property.



Safe: GPK05D Swing Gate opener meets the highest standard in safety.

Reliable:Electro-mechanical automated gate opener is time-tested design.

Convenient: Quick, Safe and Secure Manual Releas-A release key that can be used should the power fail or the backup battery is not charged.

gate opener,swing gate operator

Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V 0


1.Open and Close the gate by remote control;

2.Auto closing when the gate is open, Time duration can be programmed from 0 to 99s;

3.Auto stop when the running gate meets with resistance;

4.The force of motor can be programmed;

5.It is selectable to control 1 leaf or 2 leaves;

6. It can be connected with 24V storage barrery.


1000kg Automatic Swing gate openers Technical Specifiation

Output power of motor 12VDC/24VDC 45W
Rotational speed 3200R PM
Rod's running speed 1.6cm/s
Rod's max travel 300mm 400mm 500mm
Max leaf length 5mX2
Max single-leaf weight 500Kg
Environment Temperature range -20C~+55C
Protection class IP54
Continual run time 5min



*Soft start and soft stop.

*Emergency release key in case of power failure

*Dual/single gate running mode Adjustable opening/closing interval between master and slave gate

*Stop/reverse in case of obstruction during gate opening/closing

*Built in adjustable auto-close

*Digital display indicates the running situation and setting menu.

*Reliable electromagnetism limit switch for easy adjustment

*Buit in max motor running time(MRT) adjustable for multiple safety protection

*Can be equipment with a wide range of the accessories



Safe and practical: Adopt DC 24V low-voltage motor, use the safety custom key to manually release when the power is off, and automatically stop when encountering obstacles, which is very safe and convenient

Low noise: The product adopts low-noise metal pinion transmission design, which can effectively reduce noise pollution to the environment and bring you a comfortable experience while being environmentally friendly

Single leaf or double leaf: one side door can be opened or both sides can be opened at the same time according to the needs, which can increase the needs of different scenarios

Adjustable time: the opening and closing interval of the double gates can be adjusted, and the maximum running time of the built-in motor can be adjusted to meet your diverse needs


Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V 1
Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V 2
Powerful Double Arm Ac Swing Gate Opener 1000Kg AC 220V 3

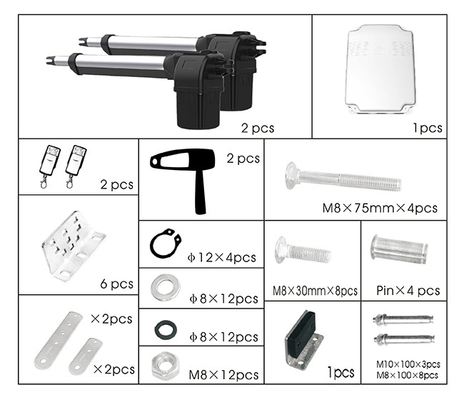

Swing gate opener GPK05D package

each set is packed by carton box, size is: 88*43*19cm, weight is 22.5kgs,
12 sets per pallet, size is: 83*112*100cm, weight is 285kgs


Our Service

1. We will reply you for your inquiry in 24 hours

2. Customers design and logo are welcome

3.Client's demand are welcomed

4. Credit and quality, the first principle of our management

5. Offer the design of package if needed

6. Various options to make payment more convenient

7. Any suggestions or complaints will be handled at the first time



Q1: What is your MOQ?

A: No min order for door opener. We also suggest wooden cases package for protection during shipment.

Q2: Can I get a sample of garage door opener for quality check?

A: Sample is available.

Q3: How can I get a price of needed garage door opener?

A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your requirements.

Q4: What kind of payment terms would you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q5: We want to be your agent of our area. How to apply for this?

A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q6: How to install your product, is it difficult?

A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Q7: Do you produce other products? Do you also produce accessories?

A: Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.
