800kg Sliding Metal Gate Motor For Garage Sliding Gate 12 M/Min

800kg Sliding Metal Gate Motor For Garage Sliding Gate 12 M/Min

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G8D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Slide Gate Opener Motor Automatic Open Style: Sliding
Color: Brown Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Garage Door
Usage: Hospital Size: Width 27cmX Height 32cm
Advantage: Safety Alarm Lighting: Optional
High Light:

800kg sliding metal gate motor

,

Sliding Metal Gate Motor 12 M/Min

,

800kg driveway sliding gate openers

Product Description

DC 24V 800kg Automatic Sliding Gate Openers Residential Use



Sliding motor for doors weighing up to 800 kg! Heavy-duty DC motors are capable of handling heavy-duty doors. Built-in backup battery for emergency power off operation. Security Remote Control Self-learning with rolling code security and 4 buttons for easy operation of any three different roller shutters or garage doors (matching receivers can be used to use the remaining buttons). Pedestrian entry function. The gate can also be fully or half-opened, making it easy for pedestrians to enter and exit





                                                             G8D  Residential use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 180W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 15kg(- 32 Ibs)
Maximum Gate Mass 800kgs (~1323 lbs)



Product characteristics



Integrated structure of motor and battery makes installation more convenient

Trouble-free of installing the limit switch.

Enable gate running more smoothly,extend its service life

Speed and distance are adjustable according to the installation.

Indicator light feeds back the error information timely makes installation and testing easier.

Anti-clip function when hitting the obstacles protects life and property better.

Auto-stop when battery is in low power to avoid damaging the battery due to excessive discharge

Infrared protection devices can be optional connected to ensure the passing safety

Auto-close function can be set on demand.





Limit Switch Type Magnet or Spring limit
Without Electricity Manual, Key Usage
Warranty Perriod 2 year
Extented Warranty Available

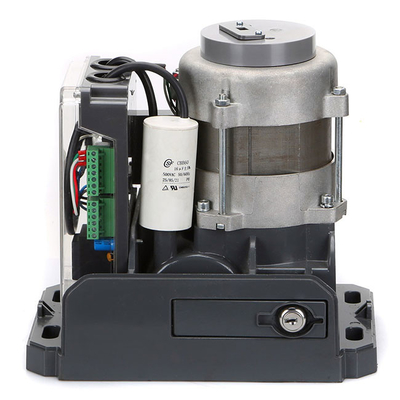

Inside of 24V DC motor

800kg Sliding Metal Gate Motor For Garage Sliding Gate 12 M/Min 0800kg Sliding Metal Gate Motor For Garage Sliding Gate 12 M/Min 1





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 800kgs.



How many models do you have for sliding gate openers ?

G4D, G5D,G8D,G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What's the payment you accept?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 35% T/T in advance ,balance before shippment.



What is your warranty terms?

2 year warranty



How long is your delivery time?

Normally 10-15 days after payment.
