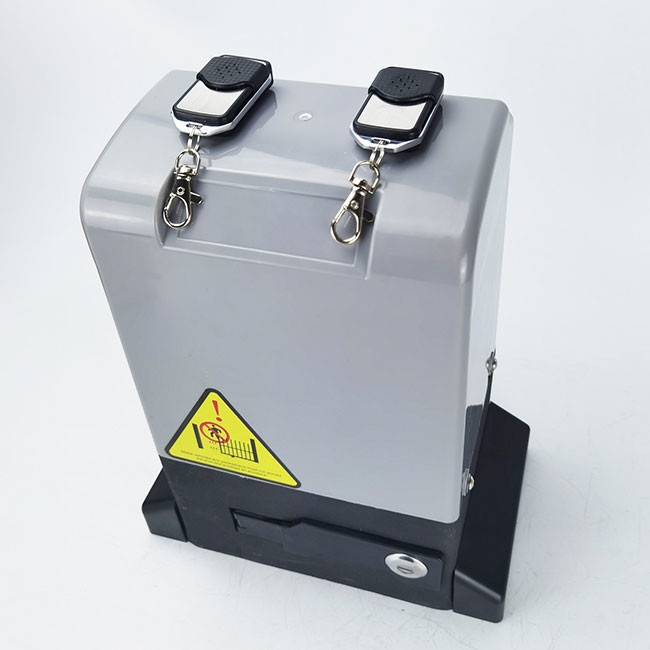

IP44 Smart Automatic Gate Opener Aluminum Powder Coated Waterproof

IP44 Smart Automatic Gate Opener Aluminum Powder Coated Waterproof

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor Set Open Style: Sliding
Color: Blue,Red,Black,Yellow Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Shop, Garden
Usage: Factory, Community, Dormitory Size: Width 27cmX Height 32cm
Advantage: Powerful, Trustworthiness Alarm Lighting: Optional
High Light:

IP44 smart automatic gate opener

,

Powder Coated smart automatic gate opener

,

IP44 automatic sliding gate operator

Product Description

Fast Ac 110v 2000kg Heavy Duty Automatic Slide Gate Motors Commercial Use



Sliding door openers are equipped in a compact housing with clear cable management. These components are easily accessible by loosing four screws.After loosening the screws, the cover can be easily removed. The Sliding gate Operator is housed in a comfortable enclosure with plenty of room for additional installations.



       High Speed Heavy Duty Sliding Gate Motors G20F  Commercial Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 700W
Output Pinion 19 Tooth Mod 4
Operating Speed 24m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17.5 kgs(- 39 Ibs)
Maximum Gate Mass 1500 kgs ~ 2000 kgs (3308 lbs ~ 4410 lbs)



To meet growing customer demands, our engineers are constantly developing newer and more powerful column gate systems.

The control box with transparent cover away for ants or other small pests to protect the cable in good condition, especially in Summer season.



The ultra-fast sliding door motor travel ensures your door will open and close faster than other motors on the market. This is especially useful for properties that are located on busy roads or need added security to quickly close the gates. This sliding door motor can move up to 24m/min.



Special control board for heavy duty slide gate motors



IP44 Smart Automatic Gate Opener Aluminum Powder Coated Waterproof 0IP44 Smart Automatic Gate Opener Aluminum Powder Coated Waterproof 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 2000kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
