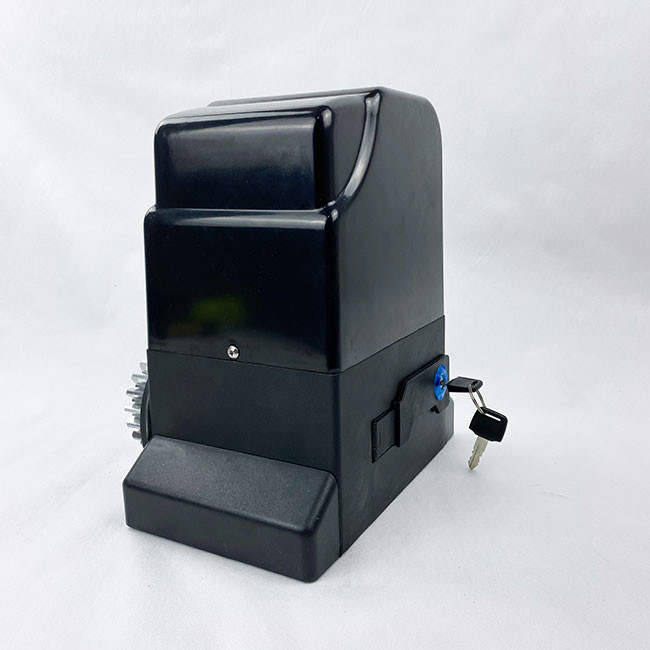

1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Motor For Sliding Gate Motor Open Style: Sliding
Color: Grey,Brown,Orange Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Residential,Industrial,Garden
Usage: House, Garden Decoration,Factory,Villa,Hospital Size: Width 27cmX Height 32cm
Advantage: Powerful, Easy Entrance,trustworthiness Alarm Lighting: Optional
High Light:

1500kg Heavy Duty Sliding Gate Opener

,

Heavy Duty Sliding Gate Opener Galvanized

,

1500kg heavy duty auto gate motor

Product Description

Heavy Duty AC 1500kg sliding Door Motors Commercial Use



Sliding doors are a mix of quality and class. While there are many types of automated gates, this particular type uses rack and pinion technology, where the rack is moved by a pinion motor by sliding the gate on rails made of steel.



Our exclusive anti-crushing dual clutch system creates a safe and responsive automatic door. There is also an electronic obstacle detection unit that ensures that the gates are reversed or stopped as soon as an obstacle is detected.





                                                            G15 Commercial Use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 550W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17 kgs(~ 37 Ibs)
Maximum Gate Mass 1000 kgs ~ 1500 kgs (2025 lbs~ 3307 lbs)



Advanced Features

Auto-reverse on closing if it hits an obstacle

Stopping on opening if it hits an obstacle

Control to stop immediately at any time when the gate is moving

Limit switch N.C/N.O selectable (using micro-switch)

LED indications for easy installation and fault diagnosis

Photocell Electric beam control input available

Adjustable forcing sensing trimmer



Details for electric slide door operators



1500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing 01500kg Heavy Duty Sliding Gate Opener Galvanized Anti Crushing 1

The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 1500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
