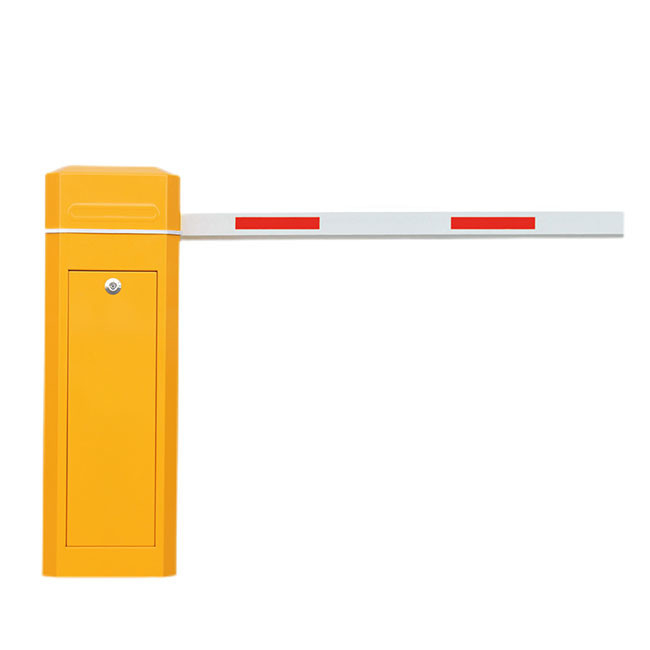

Adjustable Parking Electronic Boom Barrier Gate 5M With Entry Control System 220V 50Hz

Adjustable Parking Electronic Boom Barrier Gate 5M With Entry Control System 220V 50Hz

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G306A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type Name: Boom Barriers Gate Product Name: Magnetic Access Boom Barrier
Warranty: 2 Years Boom Length: 3m
Power Supply: AC220V Housing Material: 2mm Cold Roller Plate
Arm: Straight Housing Color: Orange
High Light:

220V 50Hz Electronic Boom Barrier

,

Electronic Boom Barrier Gate 5M

,

car park boom gate 220V 50Hz

Product Description

Adjustable Parking Automatic Boom Barriers Gate With Entry Control System





Boom Barrier For Parking

Special driving structure, no gears, non-belt driving, maintenance free, high stability, longer life.

Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-runnint, slow-stopping.

It is running without arm-shaking.



The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.



The main engine adopts mechanicallimit switch and photoelectric limit switch dual protection, to avoid the problems(e. G. Motor blocked, not running) caused by using traditional magnetic switch which is easily interfered by the external environment.



Model GS-306(AC) GS-306(DC) GS-305TWAC) GS-305-T1(DC) GS-305-TII(AC) GS-305-TII(DC)
Power: supply 220VAC 50Hz 220VAC 50Hz 220VAC 50Hz T 220VAC 50Hz 220VAC 50Hz 220VAC 50Hz
Motors power 90W 220VAC 80W24DC 90w 220VAC 80w 24VDC 90w 220VAC 80W 24VDC
MaxlengthofBoom 6M 6M 5M 6M 5M 5M
rime for up/down Fror. 0 6S(For 4-6M) 2S(For 1-3M) 6S(For 4-6M)   6s 6s 6s
Environmentt -20C-50C -20"C -50'C -20C-50'C -20'C-50C -20"C-50"C -20"C-50*C
emperature (-20"F-122F] (-29"F -122F .20"F -122"F) (-29F -122F) (-29F -122"F) (-29F-122"F)
Protection dass IP44 IP44 IP44 IP44 IP44 IP44





Features:

1. Adopt the micro-processor to control the system, it is easy to operate

2. Closing time can be adjusted automatically from 1 second to 3 mins.

3. Working time for motor can be adjusted from 1 second to 17 seconds to confirm safety even invalid of limit switch

4. Automatic delayed closing

5. Interface for loop detector and photocell

6. Remote control uses intelligent encoding and decoding technology, high anti-theft performance and wide compatibility.



Control box for Automatic Boom Barrier Gate
