Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR1300A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Industrial Roller Door Motors Color: Blue,Black
Name: Rolling Gate Electric Mot Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Industrial Door,Garage Shutter Door
High Light:

380v 3 phase roller shutter door motor

,

Shutter Door Motor 850W

,

380v single phase roller door motor

Product Description

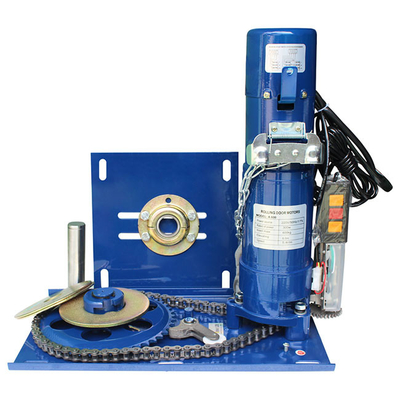

Ac 380v Three Phase 1300kg Heavy Duty Roller Shutter Motor Industrial Use





The GATECH series roller shutter motor can handle large size garage doors and are therefore also suitable for a wide range of applications in the industrial sector; In fact, the GATECH-GR1300A garage door motor, thanks to its assembled three-phase motor, can handle a maximum weight of 1300Kg.



Model AC 1300kg rolling door motor
Power supply 380V/AC 50Hz
Rated output torque 1401N.m
Max lifiting force 1300kg
Rated output speed 4 r/min
Motor power 850W
Max lifiting height 9m
Continuos working time 8min
Warranty 1 year
Place of Origin China
Application Workshop, warehouse, factory, shopfront, supermarket, shopping mall, garage doors
Function control rolling door
After-sale Service Online technical support, Onsite Installation
Limit switch 2 or 4
Relay 2 or 4
Design Style Industrial



GR1300A



Supporting garage door up to 1300kg in 380V version

100% copper wire inside the motor.

Built-in 433 MHZ receiver;

Relative humidity: 90% (25°C)

Short-time working system, one-phase continuous operation does not exceed 5 minutes,

three-phase continuous operation does not exceed 10 minutes





Bracket for rolling shutter motor

380v 3 Phase Roller Shutter Door Motor 850W Single Phase 0380v 3 Phase Roller Shutter Door Motor 850W Single Phase 1





FAQ





What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What is your payment term?

For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.



How long is your product warranty?

Two years when you got goods.



What is the delivery time?

For item in stock, it will take 2-3days to seaport after payment.
