Anti Collision 2000kg Electric Sliding Gate Kit Industrial Remote Control

Anti Collision 2000kg Electric Sliding Gate Kit Industrial Remote Control

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20set

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Door Motor Copper Kit Open Style: Sliding
Color: Blue,Black Material: Aluminum
Type: Entry Doors Feature: Waterproof
Application: Garden And Park Optional: Transmitter And Remote Controls
High Light:

2000kg Electric Sliding Gate Kit

,

Anti Collision Electric Sliding Gate Kit

,

2000kg electric gate motor kits

Product Description

AC 2000kg Sliding Operator Automatic Gate Opener Kit Industrial Use



This sliding gate opener set contains all the accessories needed , which maximizes the practicality of the motor. photocell could sense whether there are obstacles, warning lights could remind passing pedestrians to pass carefully,bringing you a smart life.



1. Anti-collision design: when the door body travel is completed, only after press reverse key, the motor can be activated so that the over-travel can be avoided.

2.Motor time protection: Avoid long time running when travel failure, the time set to 2-90 seconds.

3. Auto close function: the time can be adjusted from 1~120 seconds.

4. Motor force adjustment: motor running force can be adjusted in separate. When barrier blocks, the door stops travel in case of clamping people or object.

5.Motor running speed adjustment: the running speed of the motor can be adjusted.

6.Anti-clamping function: when barrier blocks the infrared rays, the door stops travel and moves reversely in case of clamping people or object.



Specifications G8 set G10 set G15 set G20 set
Power supply 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz
Power of Motor 370W 550W 550W 700W
Output torque 20Nm 22Nm 35Nm 45Nm
Operating Speed 12m/min 12m/min 12m/min 12m/min
Maximum Gate length 20m 20m 20m 20m
Shipping Mass of unit 12.4kg 12.7kg 14.7kg 15.8kg
Maximum Gate Mass 800kgs 1000kgs 1500kgs 2000kgs



1. Max gate weight 2000kg

2. New design of spring limit switch downward

3. Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch

4. Keypad/single button interface

5. Photo beam safety beam interface

6. User can select Auto-close function

7. Manual key release design for emergency purposes

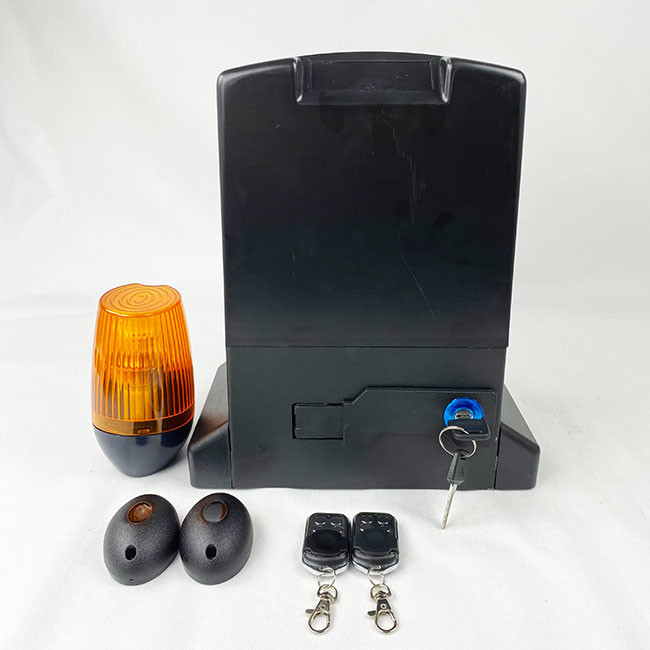

Standard accessories of automatic sliding gate opener set

* 1 pcs gate motor

* build-in control board

* 4 pcs remote controls

* 2 pair of photocell

* 1 pcs flash lamp

* 4M gear racks

* 2 pcs release keys

* 1 English user manual

* 1 pair of magnets

* 1 metal mounting plate

* bolts & nuts



This is a kit for 2000kgs automatic gate openers

Anti Collision 2000kg Electric Sliding Gate Kit Industrial Remote Control 0Anti Collision 2000kg Electric Sliding Gate Kit Industrial Remote Control 1



Why choose us?



(1)11 year of industry experience.

(2)Provide ODM/OEM service to global customers.

(3)Product qualiy assurance with product license.

(4)Professional service team and professional technical team.
