800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W

800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: SG800C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Solar Farm Gate Opener Sliding Open Style: Sliding
Color: Brown Material: Aluminum
Type: Entry Doors Feature: Waterproof
Application: Farm, Garden And Garage Door Optional: Solar Panel, Lamp,receiver,remote Control
High Light:

800kg Solar Powered Automatic Sliding Gate Opener

,

Automatic Sliding Gate Opener Kit 50Hz

,

sliding gate opener solar kit 50Hz 170W

Product Description

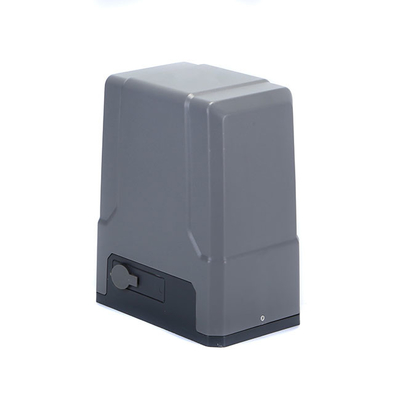

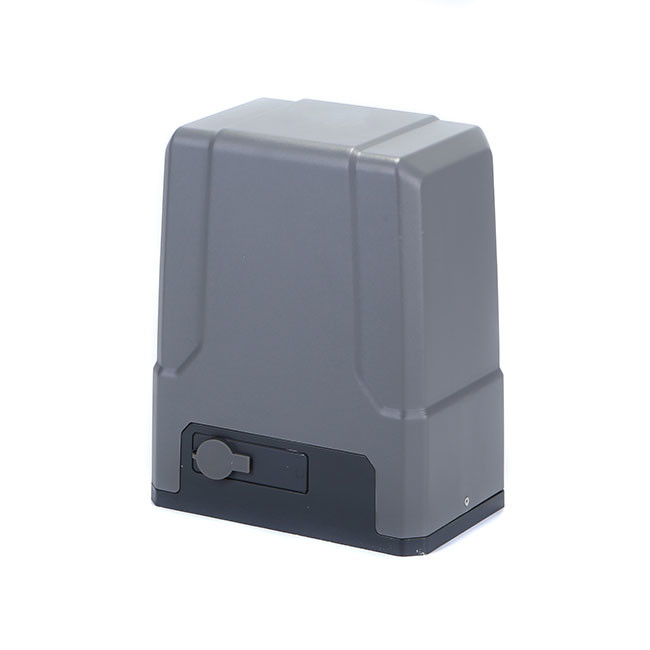

DC 800kg Solar Sliding Motor Automatic Gate Opener Kit Residential Use



As the main core of electric sliding gates-the choice of electric gate openers is very important. Gatech sliding gate motors have a variety of models, ranging from load-bearing gates 400 kg to 3000 kg gates, frequent opening types, overheating protection types,Resistance rebound type, fast switching type. Gatech products ensure product safety, quality, reliability and durability.



1) Integrated mechanical and electrical, all functions on one controller

2) Radio controller or lines to control open, close and stop functions

3) Magnetic limit switch, the door stops when it moves to the limit

4) Accurate limit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,

then after 10seconds it attempts to close automatically unless you press the stop keystroke

9) Movement indication - the indicator lights up when the door is moving

10) Optional line control or remote control



Model SG500DC SG800DC
Power supply 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz
Motor power 150W 170W
Gate moving speed 16-18m/min 16-18m/min
Maximum loading weight 500Kg 800Kg
Remote control distance ≥30m ≥30m
Remote control mode Single /Three button mode Single /Three button mode
Limit switch Electronic limit switch Electronic limit switch
Noise ≤60dB ≤60dB
Working duty S2, 20min S2, 20min
Recording of up remote controls 100 100
Frequency 433.92 MHz 433.92 MHz
Working temperature -20°C ~ +70°C -20°C ~ +70°C
Package weight 10Kg 11Kg
Battery specification 12V/9Ah 12V/9Ah



Solar panel

800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W 0800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W 1

800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W 2













Why choose us?



We take the “Quality Is Life” as production standard and principle, executing complete quality assurance system involving the whole process from R&D to manufacture, so our products have enjoyed a repectable reputation for high quality and low failure rate among our customers.

Sometimes, what they need is very simple–reliable quality, reasonable price, on-time delivery and good service,these are what we can afford.



FAQ



Q1. How long is your products' warranty?

A: All our products have 1 year warranty.

Q2. Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.

Q3.How could i get a price of the garage door?

A: Please give the exact size and quantity of your door. We could give you a detailed quotation based on your requirements.

Q4.We want to be your agent of our area. How to apply for this?

A: Please send your ideal and your profile to any e-mails of us .Let's cooperate.

Q5.I am a small wholesaler, do you accept small order?

A: It's no problem is you are a small wholesaler, we would like to grow up with you together.
