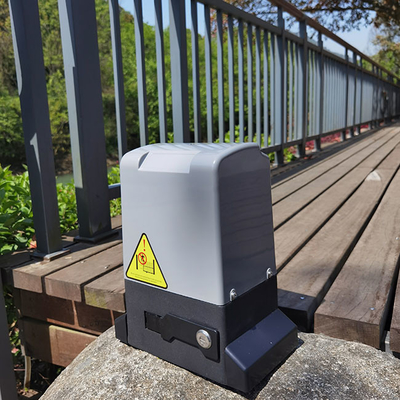

Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls

Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Electric Gate Motor Prices Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

Heavy Duty Sliding Gate Opener 750W

,

Heavy Duty Sliding Gate Opener 1500Kg

,

Heavy Duty Sliding Gate Opener Aluminum

Product Description

Heavy Duty Sliding Gate Opener 750W 1500 Kg 110V 220V With Built-In Control Board And 2 Remote Controls



Gatech technology built-in control board for sliding gate opener, which make it automatical stop against extra resistances.This controller is the latest product developed by our company. It contains an overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor. Electronic parts are connected by SMT technology, more safety, more stable, more secure and reliable.



1. Single button can finish all the control command(such as close,open,stop.)

2. Can adjust the resistance of motor

3. Can program the time of auto close

4. Can set auto close when restored power after power off

5. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc

6. Can much 30 remote controls at most



Sliding door motor specification

1. Integrated structure of mechanical parts and electronic parts, built-in

Control panel, does not require any external controller;

2. When the power is off, release the clutch with the key and push the door manually.

3. The door automatically stops and reopens when encountering obstacles

4. The automatic closing time can be adjusted around 3-120 seconds

5. Good design, heavy use of copper motors (many suppliers use aluminum motors),

copper warm gear,

6. AC motor wiring is convenient.

7. The communication system is available in 600kg, 1000kg and 1500kg



1500kg automatic sliding gate operator parameter

Specifications G15
Power supply 220V/50Hz;110V/60Hz
Power of Motor 750W
Output torque 35Nm
Operating Speed 12m/min
Maximum Gate length 20m
Shipping Mass of unit 14.7kg
Maximum Gate Mass 1500kgs



gate motor sliding gate opener,electric gate opener motor,automatic gate motor



Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.new product black color spring limit gear driving sliding door opener weighting up to 1500kg

Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls 0

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

electric gate driver for sliding door,sliding door opener with battery,sliding gate motors kit,intelligent sliding gate opener kit



Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls 1

Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls 2

Heavy Duty Sliding Gate Opener 750W 1500Kg 110V 220V Remote Controls 3



One set include:

1 x Motor with built in Control Panel

- 2 x Remote Controls

- 2 x Manual Override Keys

- 1 x Motor mounting base plate



Main Features:

1.)Totally integrated electrical mechanical system (excludes racks)

2.)Control board interface for optional impact-proof infrared photocells

3.)Alarm lamp interface

4.)Automatic delayed closing

5.)Adjustable resistance sensitivity

6.)Auto gate stop and re-open when an obstacle is encountered

7.)Wireless remote control or wired remote control are optional



Parts List

1.Install backplane*1

2.Bracket*1

3.Expansion screw*4

4.Screw*4

5.Gasket*2

6.Magnet*2

7.Remote control*2

8.Clutch key*2



FAQ:

Communication with customers:

1 The motor runs but the sliding gate operator doesn't work.

A: Check whether the clutch is closed.

2 The power indicator light doesn't flash and the key doesn't

react.

A: Check whether power is connected right.

B: Check whether the fusel is burned, it yes, please exchange it.

3 The opening and closing limit can not work.

A: Check whether the limit adjustment switch is installed right.

B: Check whether the limit iron is installed right. Adjust the

position of the limit iron.

4 Crash proof is not effective.

A: Check whether the connection of crash proof is correct.

B: Check whether the photocell is installed right.

C: Check whether the connection of the wire of the loop

detector is right .

5 When the gate just close up, it turns to open.

A: Check whether the voltage is normal.

B: If the crash proof equipment is installed, please check

whether it works well.

6 The remote control doesn't work

A: Check whether the battery is low. If yes, change it.

B: Check whether the code of the remote control is the same

with the code of the control panel.
