Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm

Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: GR01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type Name: Gear Rack Product Name: Sliding Door Gear Rack
Material: IRON Color: Grey
Opening Pattern: Automatic Application: Sliding Gate Motors
Advantage: Easy Life Size: 8mm、10mm、12mm
Length: 1M、2M Mould: M4
Package: Wooden Box Pressure Angle: 20°
High Light:

Gear Rack Gate Opener Accessories

,

Sliding Gate Opener Steel Gear Rack

,

Grey Steel Gear Rack

Product Description

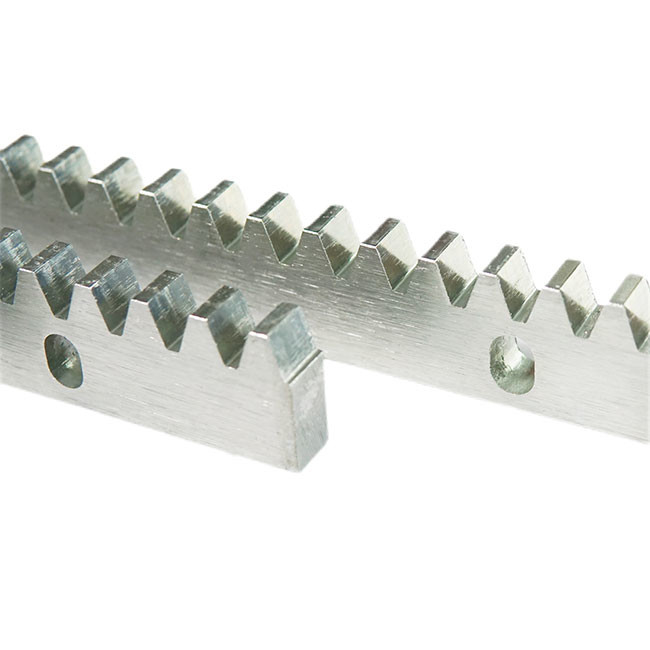

Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm



Product Description

We are the leading manufacturer of professional quality,hi-performance rack. Gear rack can be classified into spur rack and helical rack. They are match with spur gear and helical gear. Either line parallel with top tooth line has the same tooth pitch and module.Our CNC steel gear rack, cnc gear racks ,spur gear rack, stainless steel gear rack, special gear rack, aluminum gear rack, round gear rack, gear and racks, gear rack M4 gear racks, gear racks M1 , rack and pinion steering gear are exported in big quantity to Europe, America, Australia, Brasil, South Africa, Russia etc. There is standard gear racks available and also special gear rack as per your drawing or samples. Standard or special gear racks produced by CNC machines.



Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm 0

1. Steel Toothed Rack .used for sliding gate ,automatic gate.

2. High quality, durable.

3. Also supply steel gear rack.

4. Thickness: 8mm;10mm;12mm .

5. Length: 1m/2m.

6. Material: carbon steel such as C45, 20CrMnTi, 40Cr, 42CrMo or stainless steel or copper or nylon/POM and so on.

7. Rack module: M0.5,M1,M1.5,M1.7,M2,M2.5,M3,M4,M5,M6 and so on.

8. pressure angle: 20°.

9. High grinding procession.

10. Tooth Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carbonize Quenching and so on.

11. Shape: We have round rack and square rack. Tooth: straight and helical.

12. Standard: European or American standard.

13. OEM service: make based on your special sample or drawing and meet your need for high precision on teeth of gear.



Package: 4pcs/box 500pcs/pallet

Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm 1
Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm 2
Grey Steel Gear Rack For Sliding Gate Opener 8mm 10mm 12mm 3



Payment terms

1.Payment: T/T,Paypal,Western Union ,30% deposit before production,70%

balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities

Communication with customers:



1 The motor runs but the sliding gate operator doesn't work.

A: Check whether the clutch is closed.

2 The power indicator light doesn't flash and the key doesn't

react.

A: Check whether power is connected right.

B: Check whether the fusel is burned, it yes, please exchange it.

3 The opening and closing limit can not work.

A: Check whether the limit adjustment switch is installed right.

B: Check whether the limit iron is installed right. Adjust the

position of the limit iron.

4 Crash proof is not effective.

A: Check whether the connection of crash proof is correct.

B: Check whether the photocell is installed right.

C: Check whether the connection of the wire of the loop

detector is right .

5 When the gate just close up, it turns to open.

A: Check whether the voltage is normal.

B: If the crash proof equipment is installed, please check

whether it works well.

6 The remote control doesn't work

A: Check whether the battery is low. If yes, change it.

B: Check whether the code of the remote control is the same

with the code of the control panel.
