600Kg Ac Garage Door 220V Roller Shutter Door Engine For Industrial Use With 1 Year
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GR600CU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | Automatic Side Rolling Shutter Motor | Color: | Blue,Green,Red Etc. |
|---|---|---|---|
| Phase: | Single Phase | Product Name: | Electric Roller Shutter Motor |
| Warranty: | 1 Year | Material: | AluminiumCopper Wire,Aluminum Alloy And ABS |
| Application: | Shopping Mall,Home Use | Copper: | Copper Wire |
| High Light: | 220V Roller Shutter Door Engine,600Kg Roller Shutter Motor,Side Rolling Shutter Motor Automatic |
||
Product Description

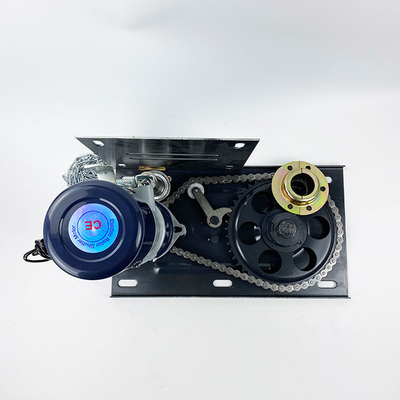

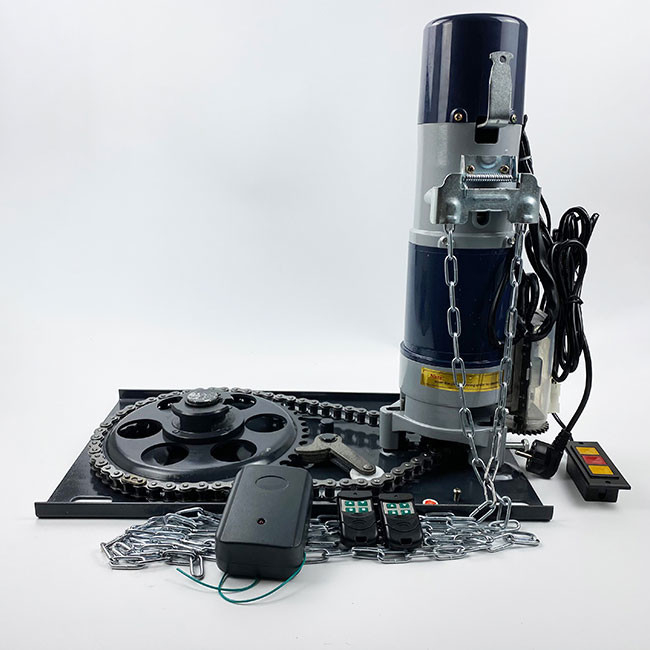

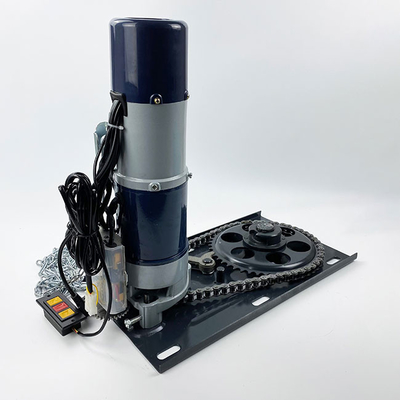

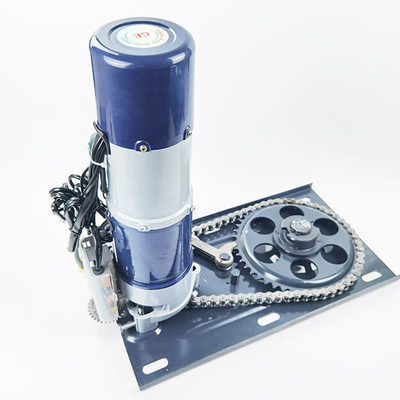

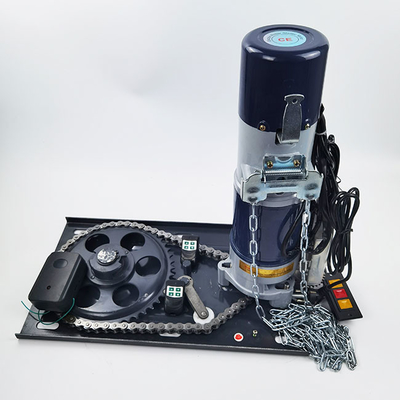

Factory Price 600Kg Ac Garage Door 220V Roller Shutter Door Engine For Industrial Use With 1 Year
Factory Supply Discount Price 600Kg Ac Garage Door 220V Roller Shutter Door Engine For Industrial Use With 1 Year
Electric security rolling door motor are using general AC motor with mature process, stable quality reasonable prices. Our products are being sold throughout Germany, Thailand, Vietnam, Chile and a host of other countries and regions.
Product Feature:
★ Beautiful modeling, advanced structure, strong horse-power;
★ Low noise, slight vibration, low power exhaustion;
★ Light weight, small volume, convenient installation, long life;
★ 100% copper winding material inside the motor, so it have a larger capacity and durable than other motors.
★ Overheat protection:The motor is with overheat protect equipment. If the temperature up to 110, the power supply will be cut off automatically to protect the motor. Till the temperature down to 70, it can be used again.
★Mechanic Limit :Limit switch adjusts the door position in both "up" and "down" precisely and safely.
★ With convenient and stability control function, can be operated by remote control;
★ Manual button: Up, Stop and Down.You can through the manual button which makes the rolling door open and close.
★Operated by manual chain when power off.
★ Clutch lever: When the power is turned off,you can pull down the clutch lever,the rolling door closed.
| Model |
Rated voltage (V/Hz) |
Max lifiting force (kg.f) |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Max lifiting height (m) |
Standard Barrel Dim(inch) |
| GR600AL | 220/50 | 600 | 412 | 5.4 | 300 | 6 | 6'' |
gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator
 |
|
|
|
Packaging Details:
our set is packed into two cartons with foam inside
carton 1: motor and remote
carton 2: brackets and other accessories
Warranty & Feedback
▲12 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
▲ Any warranty shipping cost to us is responsible by buyer.
▲ Any shipping cost to buyer is responsible by the seller.
▲ We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
FAQ :
Q1: What’s your Product Range?
A:
1) AC Motor 1 Phase (220V 50Hz)
2) AC Motor 3 Phase (380V 50Hz)
3) AC&DC Motor (24VDC 50Hz)
Q2: What’s the material of Motor Winding?
A:
-The main material is 100% Copper Wire, 100% Copper Wire, and Aluminum Wire is for option.
Q3: Is the contactor or relay in the control panel of motor?
A:
-Relay, usually there are 4 relays in the control panel of the motor.
Q4: How many days will samples be finished? And how about the mass production?
A:
-Generally, within one week for samples making.
-The lead time of mass production will depend on quantity. Normally, we finish within 20 days.
Q5: What information should I let you know if I want to get a quotation?
A:
-The Width ,Height and Weight of the Shutter/Door
-The Voltage(220VAC,380VAC or 24VDC)
-The Quantity
