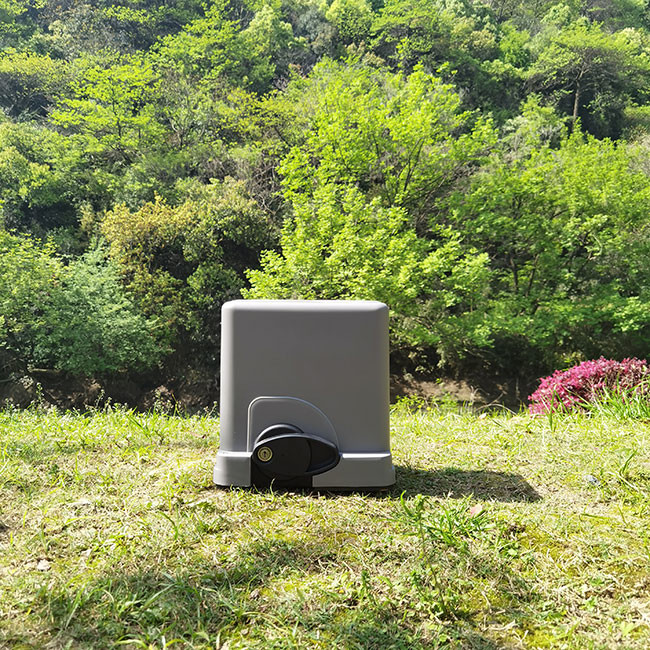

Automatic DC Sliding Gate Motor 24V 400Kg Opener With Solar System
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | SG24D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | 400kg 24VDC Sliding Gate Motor | Open Style: | Sliding |
|---|---|---|---|
| Color: | Blue,Red,Black,Brown | Type: | Door Gate Operators Sliding Gate Motors DC |
| Material: | Aluminum | Loading Weight: | 400kg |
| Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
| Opening Pattern: | Automatic | Metal Type: | Aluminum |
| Surface Treatment: | Galvanized | Application: | Shop,Farm |
| Usage: | Factory, Community,House | Size: | Width 27cmX Height 32cm |
| Advantage: | Powerful, Economical And Practical | Alarm Lighting: | Optional |
| Protection Class: | IP55 | ||
| High Light: | Automatic Solar DC Sliding Gate Motor,Solar DC24V Sliding Gate Motor,DC24V Sliding Gate Motor 400kg |
||
Product Description
Good Quality Factory Direct Automatic Sliding Gate Motor DC 12V Motors 400Kg Sliding Opener With 2 Remote Control
DC 24V low voltage motor that is safe and compatible with back up power supply.
1. This is an innovative sliding door operator ,which low stand-by consumption is the best design for solar charging.
2. One Touch Easy Programming,The control syetem learns the Open and Closing limit automatically.
3. Electronic soft-start ,ensures the motor starts steadily and smoothly.
4. Release key for power failure and locking the operator's cover.
5. Intelligent terminals for photocell,alarm lamp ,external receiver,etc.
6. Easy to install and maintain.
7. Woking encironment temperture -10℃`+50℃
Product Feature
1. Compact design, aluminum housing
2. Long service life and excellent performance
2. Soft start by imported component, external anti-theft electronic lock
3. Apply reversing motor.
4. Programmable electronic brake prevents inertia of door.
5. Optional PIU board for basic function expansion
6. Rolling code transmitter distance is more than 50m in open area
7. PC board is inside operator
8. Open and close gate either by transmitter or wireless control box
9. Battery backup system helps to open and close gate during power failure
gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator
| G24D Residential Use | |
| Power Supply | 220V 50HZ |
| Power of motor | 150W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (2200r/min) |
| Ambient Temperature Range | From-10°C to 55°C |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 10m |
| IP Rating | 55 |
| Shipping Mass of Unit | 10kg |
| Maximum Gate Mass | 400 kg |
Product Feature
1. Compact design, aluminum housing
2. Long service life and excellent performance
2. Soft start by imported component, external anti-theft electronic lock
3. Apply reversing motor.
4. Programmable electronic brake prevents inertia of door.
5. Optional PIU board for basic function expansion
6. Rolling code transmitter distance is more than 50m in open area
7. PC board is inside operator
8. Open and close gate either by transmitter or wireless control box
9. Battery backup system helps to open and close gate during power failure
A set of kit for DC 24V motors with lamp
| Details |
 |
|
| Packages |
|
Packaging Details
Sliding Door Operator of GS400
Carton Size:33.5*27.5*34.5CM,
36 sets per Pallet,
Pallet Size:108*84*120CM.
Trouble shooting
| Trouble | Cause | Shooting |
| Motor can not work | 1,No power supply 2,Break fuse 3,Surpass load |
1,Check power supply 2,Change fuse 3,Check if any barrier on the track |
| Can open but can not close | 1,Photocell is not connected properly 2,Photocell beam is block off 3,Photocell is broken |
1,Connect the photocell 2,Clear out obstacle 3,Change a new device |
| Can open (close) but can not close (open) |
1,Position of limit switch is not correct 2,Limit switch is damaged |
1,Adjust position 2,Change limit switch |
| Can not locate accurately | 1,Distance of limit switch is too large 2,Limit switch is wrong 3,Magnetic-stell’s position is wrong |
1,Adjust position of limit switch 2,Change limit switch 3,Re-adjust the position |
| Release device is doesn’t work | 1,Operating handle is broken 2,Worm gears are jammed |
1,Change the handle 2,Rotate the pinion |
| Push the “OPEN” button but the gate close |
Push the “OPEN” button but the gate close |
Connect correctly according to wiring diagram |
| Motor can turn but can not work | 1,Compression spring of clutch is dead 2,Gear box is released |
1,Change the spring 2,Couple the worm gear |
