12 m/min Single Phase Heavy Duty Sliding Gate Motors IP44 Industrial Use

12 m/min Single Phase Heavy Duty Sliding Gate Motors IP44 Industrial Use

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Supplier Of Sliding Gate Motors Open Style: Sliding
Color: Red,brown Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Residential
Usage: Construction Site And Villa Size: Width 27cmX Height 32cm
Advantage: Easy Installation,Protection Alarm Lighting: Optional
High Light:

12 m/min Heavy Duty Sliding Gate Motor

,

Heavy Duty Sliding Gate Motor IP44

,

12 m/min Industrial Sliding Gate Motor

Product Description

Ac 220v Single Phase 2000kg Heavy Duty Sliding Gate Motors Industrial Use



Operator 230V for sliding doors up to 2000 kg. Leaf speed 12m/min. Limit switch electromechanical. Equipped with a mechanical safety clutch.

Application: Control unit for 1 230V operator for sliding doors.



This operator has a compact design and is suitable for residential and light commercial use. New inductive limit switches with magnets on the rack facilitate easy installation. The control panel is designed with additional safety and ease of use in mind. The control board has specific terminals to designate stop, close safety, open safety and safety edge.





                                                             G20  Industrial use

Power Supply 220V +/- 10%, 60Hz- Single Phase
Power of motor 700W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 17.5kg(- 39 Ibs)
Maximum Gate Mass 2000kgs (~4410 lbs)



Limit Switch Type: Magnet or Spring limit

Without Electricity: Manual, Key Usage

Warranty Perriod: 2 year

Extented Warranty: Available

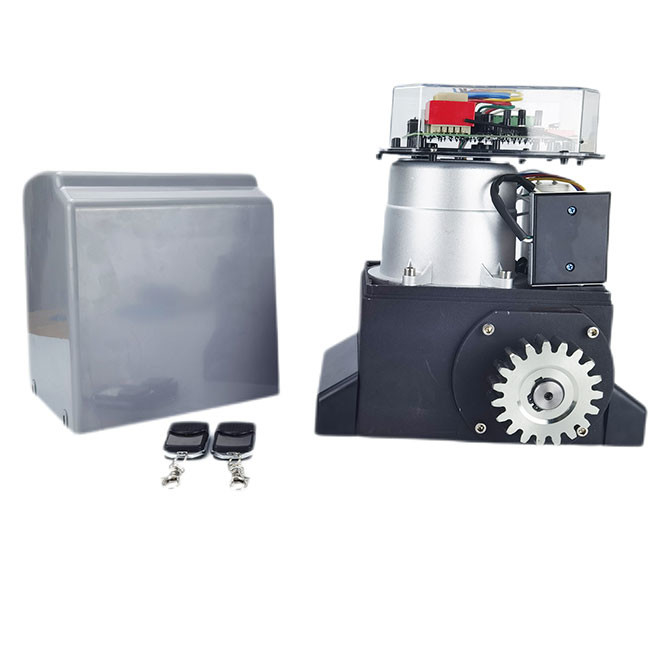

Inside of sliding gate motors



12 m/min Single Phase Heavy Duty Sliding Gate Motors IP44 Industrial Use 012 m/min Single Phase Heavy Duty Sliding Gate Motors IP44 Industrial Use 1



Transmission is lubricated, and the rolling coded remote control with long range distance up to 50m;

This sliding control panel supports photocell input to provide additional safety features,

reliable and accurate positioning by limit switches; The shell is made of high-quality materials with high quality;





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 2000kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



What is the shipping port?

Ningbo or Shanghai Seaport.



What kind of payments do you support?

As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L. Also we accept the payment such as L/C,Or PayPal.



How long is your product warranty?

The product warranty period is 24 months.



How long is your delivery time?

For customized order, we can deliver in 15-25 days. It's based on what's kinds of styles and the quantity.
