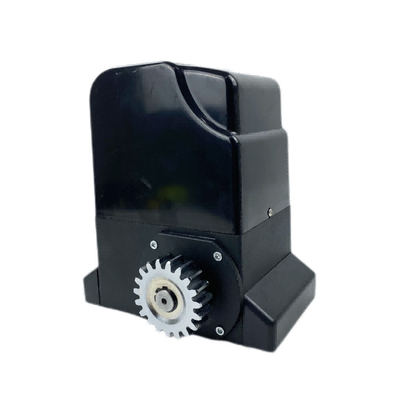

Galvanized Automatic Gate Motor For Sliding Gate 1500kg 500W

Galvanized Automatic Gate Motor For Sliding Gate 1500kg 500W

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Auto Gate Motor Slide Open Style: Sliding
Color: Black Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

Galvanized Automatic Gate Motor

,

Motor For Sliding Gate 1500kg

,

electric gate opener remote 500W

Product Description

Ac 220v Single Phase 1500kg Automatic Sliding Gate Openers Residential Use



Over the past few years, the company has focused on developing new technologies to deliver the most advanced automation systems to date. These systems are equipped with the highest functionality and ease of use in compliance with the latest safety standards.



To avoid any kind of accident, we made these gates smart! These motors are excellent at tracking any problems and stopping when anything is detected, preventing any kind of physical damage to people or machines. Since the transmission is oil-based, operation is completely silent and a thermal switch ensures that any overheating is at risk. Advanced electronic control unit allows opening time consistency, partial opening, automatic closing, step control, stop safety, reverse safety, etc.



                                                             G15 Residential use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 500W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 17kg(- 37 Ibs)
Maximum Gate Mass 1000kgs-1500kgs (2025lbs~3307lbs)



GATECH operators offer sliding door motors in 220V and 110V versions up to 1500kg.The G15 automatic sliding door operator is equipped with a built-in control panel, built-in 433 MHZ and electromechanical or magnetic limit switches.Reliability and safety features enable operators to maintain superior quality.



G15 series is Heavy duty gate motors and support standard sliding gate with 1500kg in weight.Galvanized steel gear rack is one of the necessary for this gate motor to work.



PCB of automatic sliding gate motors



Galvanized Automatic Gate Motor For Sliding Gate 1500kg 500W 0Galvanized Automatic Gate Motor For Sliding Gate 1500kg 500W 1







The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 1500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



What is the Max weight of gate?

The max weight of gate we could do is 3000KG sliding gate opener



What's the payment you accept?

We accept TT, Letter of credit at sight.



How long is your product warranty?

24 months warranty.



How about the delivery time?

Normally within 15 days, depends on the product season and quantity
