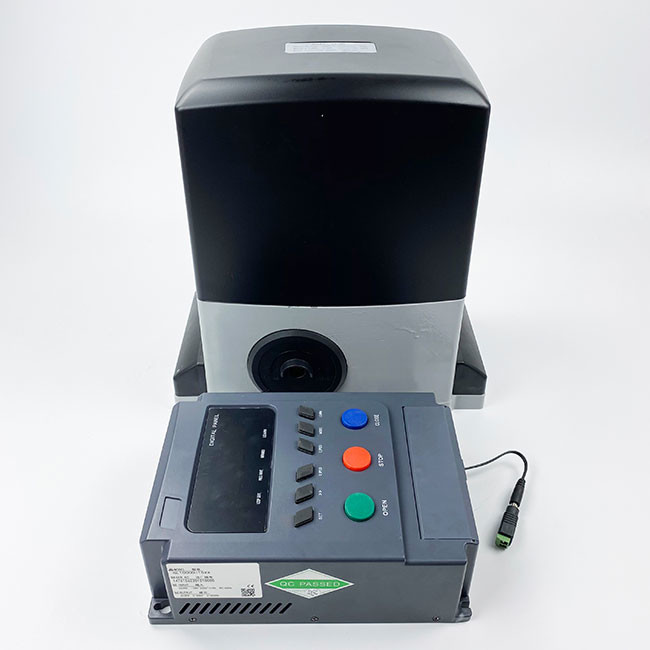

3000kg Industrial Sliding Gate Opener 750W Galvanized PVC Coated

3000kg Industrial Sliding Gate Opener 750W Galvanized PVC Coated

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: AAYEE 600KG Sliding Gate Motor Open Style: Sliding
Color: Black,Grey Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Industrial
Usage: Construction Site And Dormitory Size: Width 27cmX Height 32cm
Advantage: Easy Installation,Easy Control Alarm Lighting: Optional
High Light:

3000kg industrial sliding gate opener

,

Industrial Sliding Gate Opener 750W

,

3000kg heavy duty automatic sliding gate opener

Product Description

Ac 220v Single Phase 3000kg Heavy Duty Sliding Gate Motors Industrial Use



The design of the GATECH system combined with the continuous lubrication of the mechanical components ensures a very long trouble-free service life. The motor and gearing provide smooth performance in a wide variety of operating conditions.



Our exclusive anti-crushing dual clutch system creates a safe and responsive automatic door. There is also an electronic obstacle detection unit that ensures that the gates are reversed or stopped as soon as an obstacle is detected.





                                                             G30  Industrial use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 750W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 19kg(- 41 Ibs)
Maximum Gate Mass 3000kgs (~6615 lbs)



Supporting sliding gate up to 3000kg in 220V and 110V versions;

Built-in 433 MHZ and electromechanical or magnetic limit switch;

Built-in control panel for G30 automatic sliding gate operator;

Keeping excellent quality by reliability and safety features;

G30 series is heavy duty gate motors and support standard sliding gate with 3000kg in weight.

Galvanized steel gear rack for this driveway sliding gate openers is one of the necessary accessories;



Transmission is lubricated, and the rolling coded remote control with long range distance up to 50m;

This sliding control panel supports photocell input to provide additional safety features,

reliable and accurate positioning by limit switches; The shell is made of high-quality materials with high quality;



50M long distance  for 3000kg heavy duty slide motors

3000kg Industrial Sliding Gate Opener 750W Galvanized PVC Coated 03000kg Industrial Sliding Gate Opener 750W Galvanized PVC Coated 1







FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 3000kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



How is your MOQ?

One set is workable, but it is special cost for you.



What kind of payments do you support?

For stock items,T/T in advance.

For customize order,35% T/T in advance,balance before shipping.

How long is your product warranty?
Two years when you got goods.

How long is your delivery time?
Lead time 2-3 days for in stock,normally, it will take about 25 working days.
