Easy Installation Auto Gate Sliding Motor 230v 750w Single Phase

Easy Installation Auto Gate Sliding Motor 230v 750w Single Phase

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Small Automatic Sliding Gate Motor Open Style: Sliding
Color: Black,Green Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Store
Usage: Construction Site And Hospital Size: Width 27cmX Height 32cm
Advantage: Easy Installation, Easy Entrance Alarm Lighting: Optional
High Light:

230v auto gate sliding motor

,

auto gate sliding motor 700W

,

230v 750w sliding electric gate motors

Product Description

Ac 110v 2000kg Heavy Duty Sliding Gate Motors Industrial Use



Operator 230V for sliding doors up to 2000 kg. Leaf speed 12m/min. Limit switch electromechanical. Equipped with a mechanical safety clutch.

Application: Control unit for 1 230V operator for sliding doors

Board power supply: 230V single-phase

Operator Power: 230V 750W



Key Features:

Removable terminal blocks with new standard color coding, simplified scene-based programming

Built-in dual-channel receiver, opening and closing deceleration

Main functions: automatic reclosing, quick closing, pedestrian opening

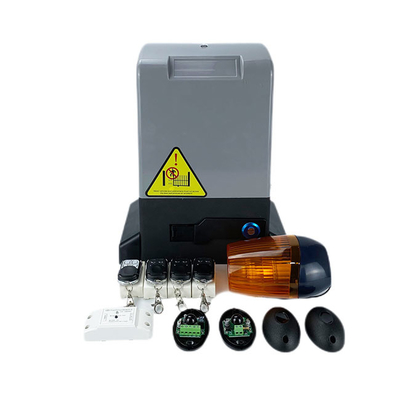

The package includes:

Gear Motor, 2x Remote Controls, Safety Sensors, Directional Lights, Rack and Pinion



                                                             G20  Industrial use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 700W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unt 17.5kg(- 39 Ibs)
Maximum Gate Mass 2000kgs (~4410 lbs)



Limit Switch Type: Magnet or Spring limit

Without Electricity: Manual, Key Usage

Warranty Perriod: 2 year

Extented Warranty: Available





Cluth of 2000kg heavy duty sliding gate motors



Easy Installation Auto Gate Sliding Motor 230v 750w Single Phase 0Easy Installation Auto Gate Sliding Motor 230v 750w Single Phase 1



Transmission is lubricated, and the rolling coded remote control with long range distance up to 50m;

This sliding control panel supports photocell input to provide additional safety features,

reliable and accurate positioning by limit switches; The shell is made of high-quality materials with high quality;





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 600kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



For standard products, 10-25 days are available.

1 set is okay. More quantity with nice discount.



How is your MOQ?

T/T, L/C, D/P, Western Union are all available.Thanks !



What is your warranty terms?

24 months. Spare parts provided freely within quality warranty.



How long is your delivery time?

Usually production time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
