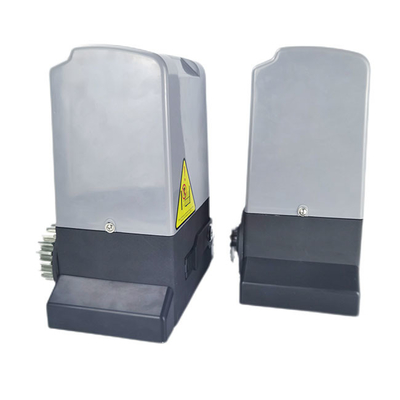

2000kg Heavy Duty Sliding Gate Opener 50Hz Heavy Duty Auto Gate Motor

2000kg Heavy Duty Sliding Gate Opener 50Hz Heavy Duty Auto Gate Motor

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor 2000kg Open Style: Sliding
Color: Black,Yellow Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Garage Door
Usage: Community And Villa Size: Width 27cmX Height 32cm
Advantage: Easy Installation,Safety Alarm Lighting: Optional
High Light:

2000kg Heavy Duty Sliding Gate Opener

,

Heavy Duty Sliding Gate Opener 50Hz

,

50Hz Heavy Duty Auto Gate Motor

Product Description

Ac 220v Single Phase 2000kg Heavy Duty Automatic Door Operators Commercial Use



Quiet performance, more durable and reliable. making it one of our company's best-selling products.



If the gate hits an obstacle, it automatically reverses or closes or stops moving

Limit switch N.C./N.O. selectable (using micro switch)

Photoelectric sensor (optional)

Adjustable Force Sensing Trimmers

Equipped with heavy duty AC motor (230 VAC)

For sliding doors up to 2000 kg



                                                             G20  Commerical use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 700W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17.5kg(- 39 Ibs)
Maximum Gate Mass 2000kgs (~4410 lbs)



Supporting sliding gate up to 2000kg in 220V and 110V versions;

Built-in 433 MHZ and electromechanical or magnetic limit switch;

Built-in control panel for G20 automatic sliding gate operator;

Keeping excellent quality by reliability and safety features;

G20 series is heavy duty gate motors and support standard sliding gate with 2000kg in weight.

Galvanized steel gear rack for this driveway sliding gate openers is one of the necessary accessories;



Package of 2000kg heavy duty automatic door operators



2000kg Heavy Duty Sliding Gate Opener 50Hz Heavy Duty Auto Gate Motor 02000kg Heavy Duty Sliding Gate Opener 50Hz Heavy Duty Auto Gate Motor 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 2000kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
