Powder Coated Heavy Duty Sliding Gate Opener 500W 19 Tooth Mod 4

Powder Coated Heavy Duty Sliding Gate Opener 500W 19 Tooth Mod 4

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor Strong Open Style: Sliding
Color: Black,Purple Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: School,Garden
Usage: Community And House Size: Width 27cmX Height 32cm
Advantage: Easy Installation, Trustworthiness Alarm Lighting: Optional
High Light:

Powder Coated Heavy Duty Sliding Gate Opener

,

Heavy Duty Sliding Gate Opener 500W

,

heavy duty auto gate motor 500W

Product Description

Ac 110v 1500kg Heavy Duty Automatic Door Operators Commercial Use



Leading Manufacturer of Sliding Door Motors, G15 Sliding Door 1500kg for Residential/Commercial, Sliding Door Automation, Industrial Main Doors and GATECH Stainless Steel Industrial Doors



                                                             G15 Commercial Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 500W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17kg(- 37 Ibs)
Maximum Gate Mass 1000-1500kgs (2025lbs~3307lbs)



GATECH is the operator of sliding doors up to 1500 kg, which combines strong robustness and reliability with a delightful original design that has been the hallmark of this product for many years. Safety is ensured with the help of mechanical or electronic clutches. The control board is integrated into the chassis, making quick installation of the G15 easier, and programming is fast, precise and stable.



GATECH operators provide sliding door motors up to 1500kg in 220V and 110V versions;
G15 automatic sliding gate operator is equipped with a built-in control panel;

Built-in 433 MHZ and electromechanical or magnetic limit switch;
G15 series is heavy duty gate motors and support standard sliding gate with 1500kg in weight;

Galvanized steel gear rack is one of the necessary for this gate motor to work;

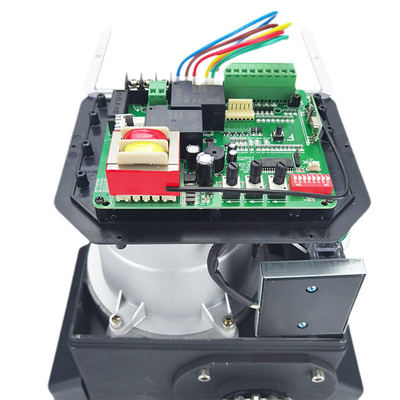

Control panel for 1500kg automatic door operators

Powder Coated Heavy Duty Sliding Gate Opener 500W 19 Tooth Mod 4 0Powder Coated Heavy Duty Sliding Gate Opener 500W 19 Tooth Mod 4 1









FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 1500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



What is your MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 35% T/T in advance ,balance before shippment.



What is your warranty terms?

The product warranty period is 24 months.



How long is your delivery time?

Normally 10-15 days after payment.
