1T Garage Roller Shutter Motor Lightweight With Overheating Protection

1T Garage Roller Shutter Motor Lightweight With Overheating Protection

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR1000A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Electric Roller Shutter Motor Color: Grey,Yellow
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Overhead Automatic Sectional Garage Door Opener
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Workshop,shopfront
High Light:

1T Garage Roller Shutter Motor

,

Garage Roller Shutter Motor Lightweight

,

1T remote control roller door opener

Product Description

1000kg AC Copper Garage Roller Shutter Motors Industrial Use



GATECH is specialized in the production of rolling shutter motors and its control system.Our major lines include AC and DC rolling door motors. This roller shutter motor has been continuously exported for over ten years and is our hotting product, it uses the most advanced production technology and the latest technology available to provide reliability with multiple functions.



1. Optional: copper or aluminum AC electric rolling door motor;

2. Beautiful appearance,advanced structure,strong horsepower;

3. Low noise, small vibration, low power consumption;

4. A motor overheating protection device(140℃);

5. Imported electrical components, security and stability;

6. Lightweight, small size, easy installation, long life and reliable performance;

7. Easy manual operation when power could also be equipped with electrical storage devices;

8. Assembly could be equipped with remote control, to achieve long-range operation.



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9

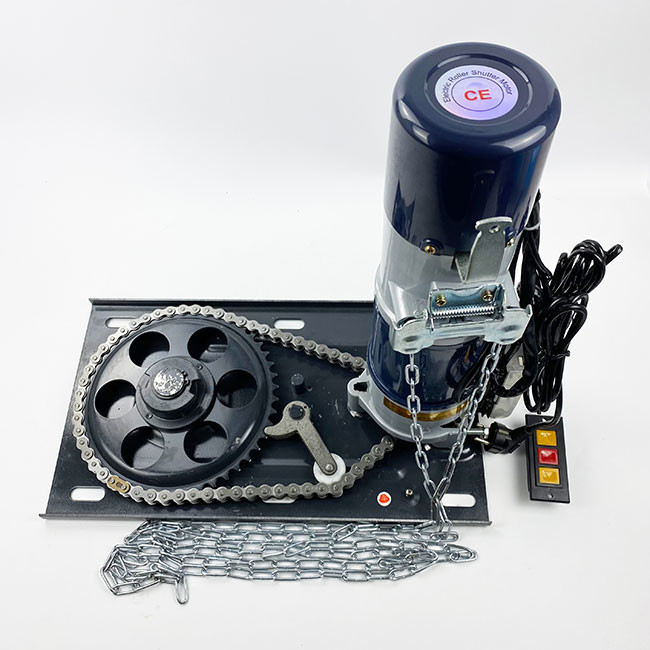

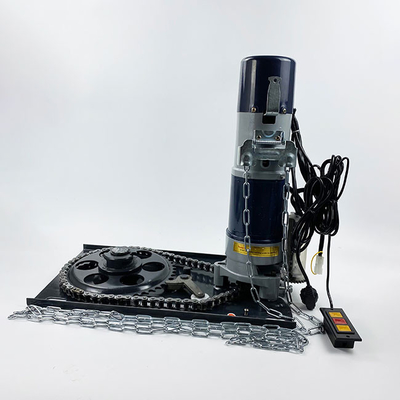

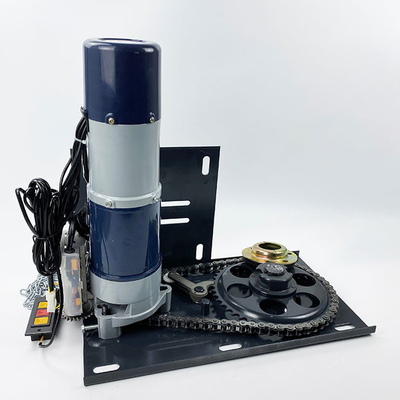

1T Garage Roller Shutter Motor Lightweight With Overheating Protection 01T Garage Roller Shutter Motor Lightweight With Overheating Protection 1



1. Beautiful shape, advanced structure, strong power;

2. Using imported electrical components, safe and stable;

3. Low noise, small vibration and low power consumption;

4. Ligh weight, small size, easy installation, long life, reliable performance;

5. Manual operation is convenient in course of power failure, and power storage device can also be equipped;

6.It could be equipped with remote control assembly to realize remote operation; With motor operation overheating protection device.
