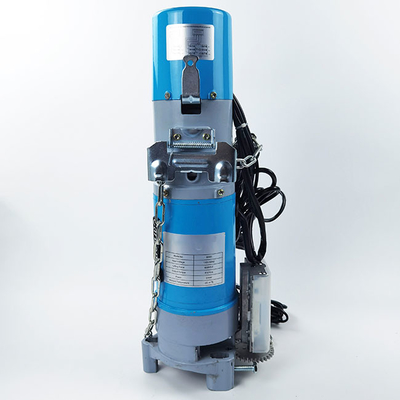

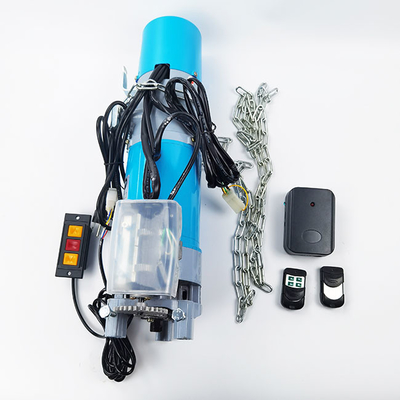

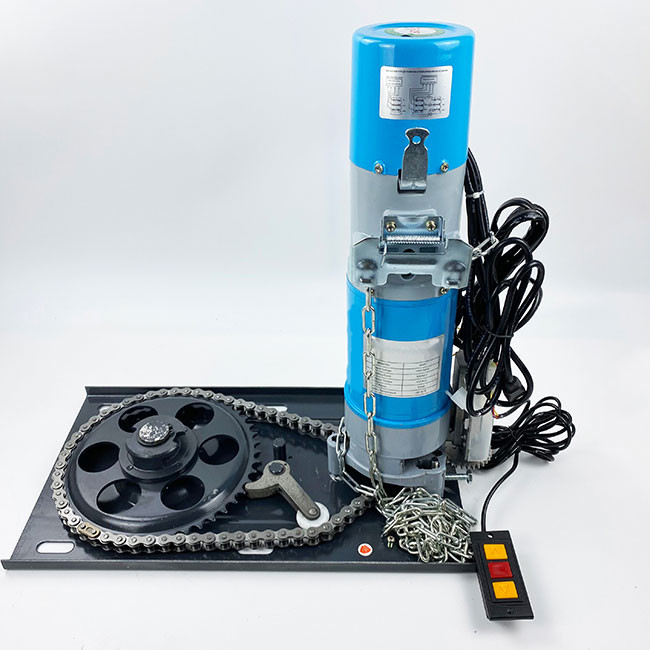

800kg Gear Rolling Shutter Motor 380V 2.3A Easy Installation

800kg Gear Rolling Shutter Motor 380V 2.3A Easy Installation

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR800D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Garage Roller Shutter Motor Color: Grey,Green
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Universal Gate Garage Door Opener Motor
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Residential Roller Garage Doors,supermarke
High Light:

800kg Gear Rolling Shutter Motor

,

Gear Rolling Shutter Motor 380V

,

380V roller shutter door electric motors

Product Description

800kg AC Remote Garage Roller Shutter Motors Commercial Use



Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:



1. Optional: copper or aluminum AC electric rolling door motor;

2. Beautiful appearance,advanced structure,strong horsepower;

3. Low noise, small vibration, low power consumption;

4. A motor overheating protection device(140℃);

5. Imported electrical components, security and stability;

6. Lightweight, small size, easy installation, long life and reliable performance;

7. Easy manual operation when power could also be equipped with electrical storage devi



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-3P 168 5.4 250 380/50 1.5 15 114 300 6
AC600-3P 343 5.4 250 380/50 1.5 15 140 600 6
AC800-3P 647 5.4 370 380/50 2.3 15 165 800 6
AC1000-3P 809 5.4 370 380/50 2.8 15 165 1000 7
AC1300-3P 1401 4 850 380/50 3.2 15 219 1300 8
AC1500-3P 1617 4 1000 380/50 3.8 15 219 1500 12
AC2000-3P 2450 3.6 1000 380/50 4.1 15 245 2000 12



800kg Gear Rolling Shutter Motor 380V 2.3A Easy Installation 0800kg Gear Rolling Shutter Motor 380V 2.3A Easy Installation 1



FAQ



Q1. How long is your products' warranty?

A: All our products have 1 year warranty.

Q2. Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.

Q3.How could i get a price of the garage door?

A: Please give the exact size and quantity of your door. We could give you a detailed quotation based on your requirements.

Q4.We want to be your agent of our area. How to apply for this?

A: Please send your ideal and your profile to any e-mails of us .Let's cooperate.

Q5.I am a small wholesaler, do you accept small order?

A: It's no problem is you are a small wholesaler, we would like to grow up with you together.
