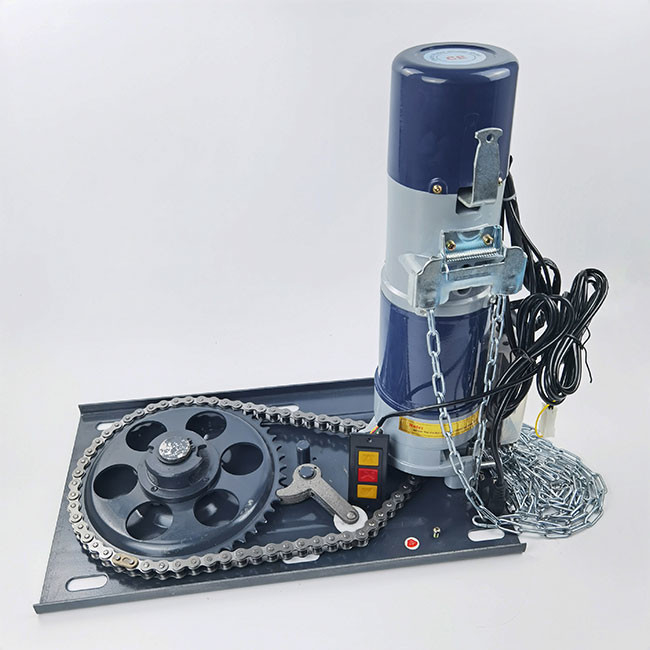

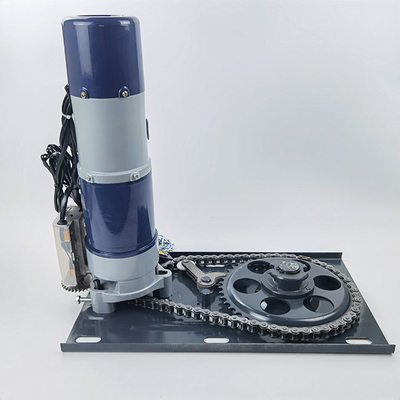

Single 800kg Garage Roller Shutter Motor 370W For Warehouse Shopfront

Single 800kg Garage Roller Shutter Motor 370W For Warehouse Shopfront

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR800A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Garage Roller Shutter Motor Color: Grey,purple
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Garage Door Opener Motor
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Warehouse,shopfront
High Light:

800kg Garage Roller Shutter Motor

,

Garage Roller Shutter Motor 370W

,

800kg remote roller door motor

Product Description

Ac 220v Single 800kg Copper Garage Roller Shutter Motors Commercial Use



Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:



1. Nice designs with powerful drive.

2. With overheat protection, overload protection.

3. Easy to install and maintain, long useful life.

4. Could operate by remote control, push button, and manual chain.

5. Could work with UPS, so without worrying about power off.

6. With Chain-break protection device, also could work with safety by brake, ensure the safety of your life and property.

7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be chosen



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-3P 168 5.4 250 380/50 1.5 15 114 300 6
AC600-3P 343 5.4 250 380/50 1.5 15 140 600 6
AC800-3P 647 5.4 370 380/50 2.3 15 165 800 6
AC1000-3P 809 5.4 370 380/50 2.8 15 165 1000 7
AC1300-3P 1401 4 850 380/50 3.2 15 219 1300 8
AC1500-3P 1617 4 1000 380/50 3.8 15 219 1500 12
AC2000-3P 2450 3.6 1000 380/50 4.1 15 245 2000 12



Single 800kg Garage Roller Shutter Motor 370W For Warehouse Shopfront 0Single 800kg Garage Roller Shutter Motor 370W For Warehouse Shopfront 1

Why Choose us?



GATECH is a professional R&D, production and sales of various forms of electric door openers. The existing equipment is excellent, the technical force is strong, and it has strong machining ability and microcomputer control system design ability, and can provide the mechatronics function for the majority of users in time. The company strives to maintain the brand, develop the market with integrity, pursue perfect functions with meticulous design, ensure product quality with precise manufacturing, open up the market with sincere service attitude, strive for survival with quality, and develop with quality as our tenet and development. Our products are sold all over the country and export to all over the world.
