24V Dc 300Kg Ac Swing Gate Opener For Residential Gates

24V Dc 300Kg Ac Swing Gate Opener For Residential Gates

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GPK03S

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Automatic Swing Gate Operator Single Arm Power Supply: AC 220V +/- 10%
Color: Sliver,Golden,Black Name: Gate Opener Swing
Material: Stainless Steel And Aluminum Alloy Protection Class: IP44
Usage: For Swing Gate,Yard Rated Power: 45W
Motor: 24 V DC Open Stype: Swing
Weight: 300kg
High Light:

300Kg Ac Swing Gate Opener


24V Dc Swing Gate Opener


Residential Swing Gate Opener

Product Description

Factory Direct Sales 24V Dc 300Kg Ac Swing Gate Opener For Residential Gates


24v Dc Single Phase 300kg Automatic Swing Gate Openers For Farm Gates


GPK03s features one 40W 24V DC motors with higher efficiency, lower power consumption, and greater safety.

It is designed as the strongest kit for Heavy Duty dual swing gates up to a maximum of 3M long or maximum of weight of 300KG per gate leaf. The extendable and durable die-casting aluminum swing arms bring a superior performance and longer operating life.

24V Dc 300Kg Ac Swing Gate Opener For Residential Gates 0

swing gate motor ram set,wrought iron gate automatic motor,aluminum swing gate with motor,swing gate motor opener


Output power of motor 12VDC/24VDC 45W
Rotational speed 3200RPM
Rod's running speed 1.6cm/s
Rod's max travel 300mm 400mm 500mm
Max leaf length 3m
Max single-leaf weight 300Kg
Environment Temperature range -20C~+55C
Protection class IP54
Continual run time 5min



*Soft start and soft stop.

*Emergency release key in case of power failure

*Dual/single gate running mode Adjustable opening/closing interval between master and slave gate

*Stop/reverse in case of obstruction during gate opening/closing

*Built in adjustable auto-close

*Digital display indicates the running situation and setting menu.

*Reliable electromagnetism limit switch for easy adjustment

*Buit in max motor running time(MRT) adjustable for multiple safety protection

*Can be equipment with a wide range of the accessories

swing gate actuators china,swing gate actuator,swing machine for home,dc swing gate motor,swing exterior door motor
articulated swing door opener,dual swing gate motor

24V Dc 300Kg Ac Swing Gate Opener For Residential Gates 1
24V Dc 300Kg Ac Swing Gate Opener For Residential Gates 2
24V Dc 300Kg Ac Swing Gate Opener For Residential Gates 3

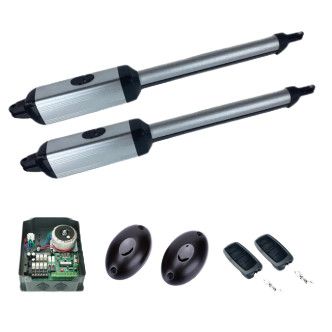

Swing Door Opener GPK03S Kit

Swing door opener GPK03S packed in carton

Carton size: 88*23*20cm

Shipping weight is 13 kg


【Parameters】 - power supply: 110V; motor power: 24VDC 40W*2; current: 5A; motor speed: 320RPM; actuator running speed: 1.6 CM/S; actuator stroke: 300MM; Leaf weight: 300KG; Working temperature: -20C ~55C; Protection class: IP55

【Heavy Duty】- With two low power consumption 24V DC motors, designed for long or double swing doors with a maximum weight of 600kg. Extendable and durable aluminum swing arms per door leaf bring exceptional performance to heavy duty doors. The system has a long service life and minimal maintenance requirements.

【Multiple Applications】- Suitable for all types of double swing doors, typical applications include residential, patio, ranch, farm and ranch.

【Easy to Install】-Easy DIY installation with common tools, no extra soldering, no high voltage electrical connections. Inclu·des complete mounting hardware and easy-to-follow instructions for peace of mind. The entire installation only takes a few hours.

【Safety to use】- Manual release with safety custom key when power is off. Soft start and slow stop. Adjust the opening and closing interval of the double gates, and automatically stop when an obstacle is detected during operation.

GPK03S Automatic Swing Gate Opener features one 40W 24VDC motor with higher efficiency, lower power consumption, and greater safety.

GPK03S could realize single-leaf independent opening and closing doors at the same time, and are generally used in courtyards, villas, garages, etc. The material of the door can be iron art, aluminum art, solid wood, etc., as long as it does not exceed the bearing range.
