300Kg Single Swing Gate Operator Aayee Single 24VDC 80W Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GPK19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | Automatic Swing Gate Operator Single Arm | Power Supply: | AC 220V +/- 10% |
|---|---|---|---|
| Color: | Sliver,Golden,Black | Name: | Gate Opener Swing |
| Material: | Stainless Steel And Aluminum Alloy | Protection Class: | IP54 |
| Usage: | For Swing Gate，Yard | Rated Power: | 80W |
| Motor: | 24 VDC | Open Stype: | Swing |
| Weight: | 300kg | ||
| High Light: | 24VDC Swing Gate Operator,Swing Gate Operator 80W,Swing Gate Operator Stainless steel |
||
Product Description

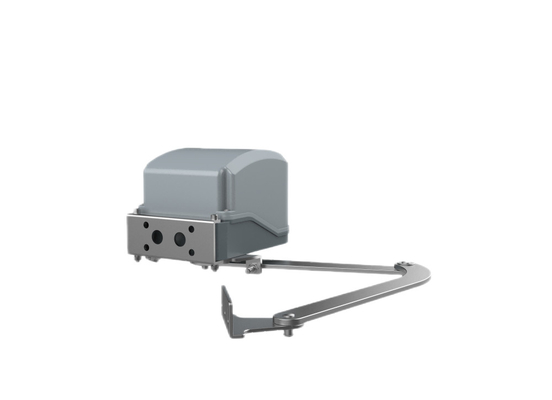

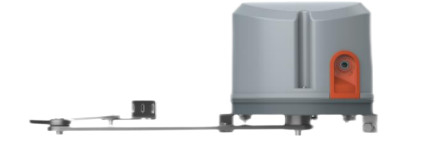

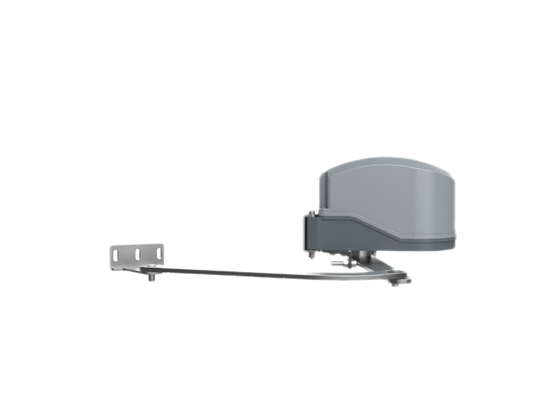

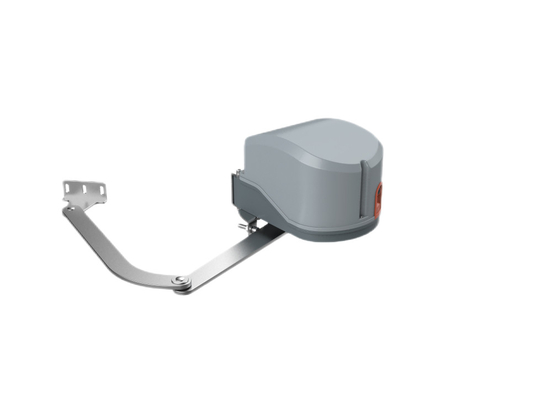

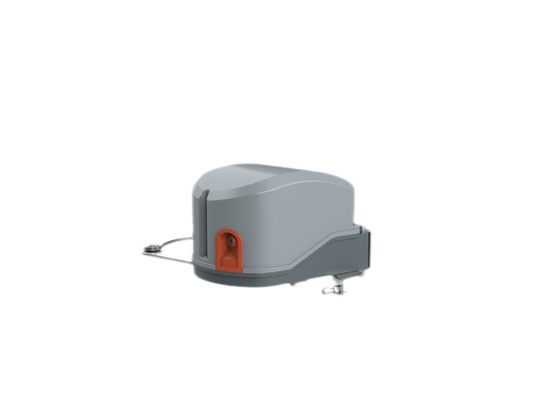

Aayee Single 24VDC 80W 300Kg Swing Gate Operator
24v Dc Single Phase 300kg Automatic Swing Gate Openers For Farm Gates
GPK19 features one 80W 24VDC motors with higher efficiency, lower power consumption, and greater safety.
It is designed as the strongest kit for Heavy Duty dual swing gates up to a maximum of 3M long or maximum of weight of 300KG gate leaf. The extendable and durable die-casting aluminum swing arms bring a superior performance and longer operating life.
Features:
* Release clutch can release door opener if power failure, then door can be operated by manual.
* Saft start and soft stop function is available.
* Reverse function is available when meet obstacle.
* Auto-close is available.
* Open terminal is fit for access control system
*Soft start and soft stop.
*Emergency release key in case of power failure
*Dual/single gate running mode Adjustable opening/closing interval between master and slave gate
*Stop/reverse in case of obstruction during gate opening/closing
*Built in adjustable auto-close
*Digital display indicates the running situation and setting menu.
*Reliable electromagnetism limit switch for easy adjustment
*Buit in max motor running time(MRT) adjustable for multiple safety protection
*Can be equipment with a wide range of the accessories
swing gate motor ram set,wrought iron gate automatic motor,aluminum swing gate with motor,swing gate motor opener
| Output power of motor | 24VDC 80W |
| Rotational speed | 1800RPM |
|
Supply voltage |
220VAC /110V 60Hz ±10% |
| Max leaf length | 3m |
| Max single-leaf weight | 300Kg |
| Environment Temperature range |
-30℃~+60℃
|
| Protection class | IP54 |
swing gate actuators china,swing gate actuator,swing machine for home,dc swing gate motor,swing exterior door motor
articulated swing door opener,dual swing gate motor
 |
|
|
|
Advanced software
1. Push & open function(can be turn off if needed, such as windy environment).
2.Auto reverse when an obstacle is encountered either in closing direction or opening direction.
3. Various opening modes: remote control, card reader, motion sensor, opening button etc.
4. Having interfaces to connect fire alarm signal, backup battery and electric lock.
5. Digitally change some parameters if needed, by adjustor.
Adjustable parameters
1. Opening speed and closing speed: 3s~10s
2. Hold-Open time adjustable: 1-10s
3. Creep speed for opening adjustable
4. Creep speed for closing adjustable
5. Push & open angle(0°-180°) adjustable
Simple and reliable structure
1. It consists of some modules, such as controller board, motor, easy to replace.
2. The motor transmission is simple and stable. Adopting worm and worm gear decelerator, super silence, no abrasion.
3. It is easy to open and close the cover for check.
4. Easy installation (first, install one mount plate on the wall, then use the screw to install whole automatic door opener on the mount plate)
5. Sliding arm and articulated arm both available, can open inside or outside.
6. Excellent reliability, over more than 2 million cycles durability tests.
7. Application: hospitals, office buildings, hotels and restaurants, places with the old and the disabled.
