1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors

1000kg Automatic Sliding Gate Motors Waterproof Entry Doors

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G10ST

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

Sliding Gate Automatic Motor


Automatic Sliding Gate Motors 1000kg


Waterproof Automatic Sliding Gate Motors

Product Description

Automatic Sliding Gate Motors 1000kg Factory Supply Sliding Gate Automatic Motor

sliding gate motor automatic sliding door,automatic sliding gate motor dc,sliding gate motor/opener/operatoratic gate opening motors electric gate motors

We are China supplier and always do this gate operators for more than 15 years experience.

Main products as follows:

---Sliding gate operators(Application for 600kg,800kg,1500kg, 2000kg,2500kg,3000kg gate )

----Swing gate operators(300kg, 600kg, 1000kg 24VDC )

-----Rolling shutter motors(Side motors)

----Tubular motors



The sliding gate operators are used to drive sliding gates for industrial,

commercial and residential uses.The operators can be fitted with gear wheel or chain wheel according to your needs,and featured with powerful starting strength, capable of overwork at short time.

In case of power failure, an emergency release key allows operate gate manually.


1000kg automatic sliding gate operator parameter


Specifications G10ST
Power supply 220V/50Hz;110V/60Hz
Power of Motor 550W
Output torque 22Nm
Operating Speed 12m/min
Maximum Gate length 20m
Shipping Mass of unit 12.7kg
Maximum Gate Mass 1000kgs


Sliding door motor specification

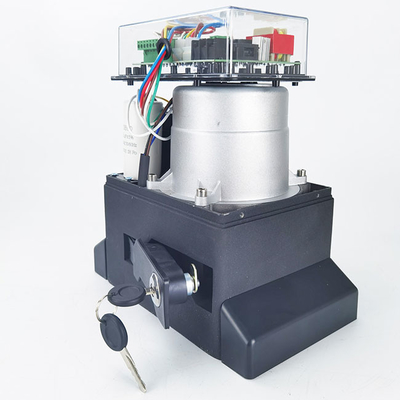

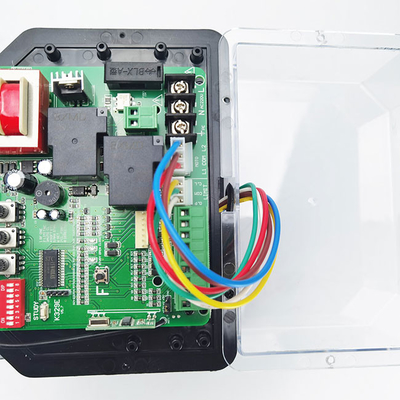

1. Integrated structure of mechanical parts and electronic parts, built-in

Control panel, does not require any external controller;

2. When the power is off, release the clutch with the key and push the door manually.

3. The door automatically stops and reopens when encountering obstacles

4. The automatic closing time can be adjusted around 3-120 seconds

5. Good design, heavy use of copper motors (many suppliers use aluminum motors),

copper warm gear,

6. AC motor wiring is convenient.

7. The communication system is available in 600kg, 1000kg and 1500kg

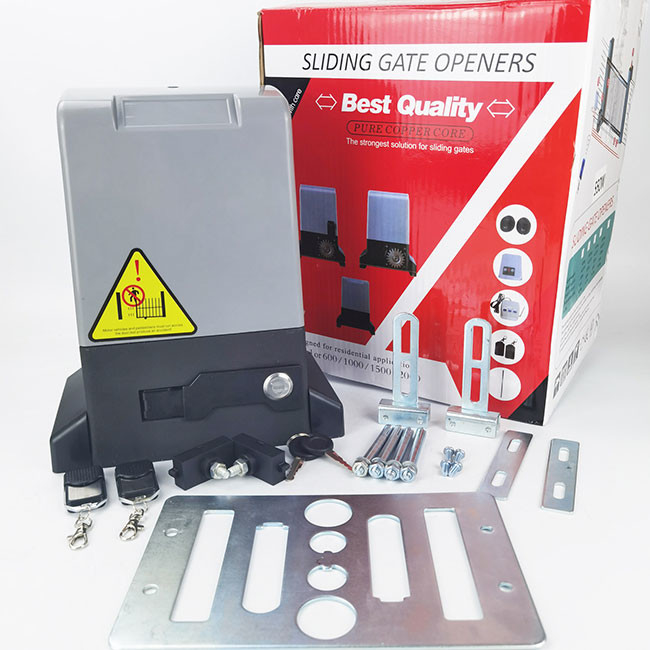

Complete set included:

- 1 x Motor with built in Control Panel

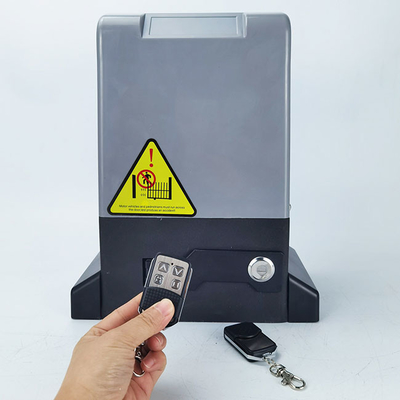

- 4 x Remote Controls

- 2 x Manual clutch Keys

- 1 x Motor mounting base plate

- 1 x Instruction Manual

- 2 x Photocell

- 1 x Flash lamp

- 4 x Gear rack

1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors 0

Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.

1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors 1

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors 2

1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors 3

1000kg Automatic Sliding Gate Motors Waterproof  Entry Doors 4


Packaging & Shipping


Packing Details : Standard Export Carton, then in pallet

Delivery Details : Depends on the quantity


Selling Points

1) Suitable for residential or commercial sliding doors.

2) Remote control or button full open or pedestrian open.

3) Built-in solar regulator and auto-off function.

4) The door automatically stops and reopens when it encounters an obstacle.

5) Manually release the clutch in case of emergency or power failure.

6) Terminals for battery, photocell, flash, solar panel, button, WIFI APP controller.

7) DIY simple installation. Soft start and slow down gently to stop.

8) 1 year warranty. WIFI APP function can be added.





1.FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2.By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods!

4.Delivery Time: 3-7 days for samples; 5-25 days for batch goods.


Payment terms

1.Payment: T/T,Paypal,Western Union ,30% deposit before production,70%

balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities



Q1: What is your MOQ?

A: No min order for door opener. We also suggest wooden cases package for protection during shipment.

Q2: Can I get a sample of garage door opener for quality check?

A: Sample is available.

Q3: How can I get a price of needed garage door opener?

A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your requirements.

Q4: What kind of payment terms would you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q5: We want to be your agent of our area. How to apply for this?

A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q6: How to install your product, is it difficult?

A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.

Q7: Do you produce other products? Do you also produce accessories?

A: Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.
