Ac Motor Kit Small Sliding Gate Motors 600kg Waterproof Aluminum

Product Description

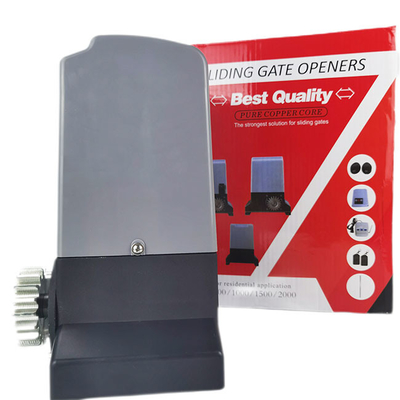

Ac Motor Kit Small Sliding Gate Motors 600kg

This equipment is one of the auto gate openers launched by our company adopting a new design and integrated control system. Our sliding gate opener has many features such as: low noise, light weight, powerful starting torque, stability, reliability and is compact and stylish. The motor will still work for a short period of time using lower voltage. The control board has overload protection.When there is a power failure, the motor drive can be separated by the use of the clutch, by using the specified key the user has the ability to disconnect the clutch enabling the gate to be opened or closed manually. Using the optional infrared photocells the gate will automatically stop and re-open if an obstacle is sensed.

• Power supply range: AC220V/110V±10% 50/60Hz
• Net weight: 12.4kg
• Max loading weight: 600kg
• Working temperature of motor: -25 to +55 Celsius degree
• Working humidity: ≤85%
• Rated power: 370w
• Output gear module: M=4
• Output gear number: Z=16
• Open(close) speed: v=12m/min
• Maximum pull: 22N
• Package one set in one carton

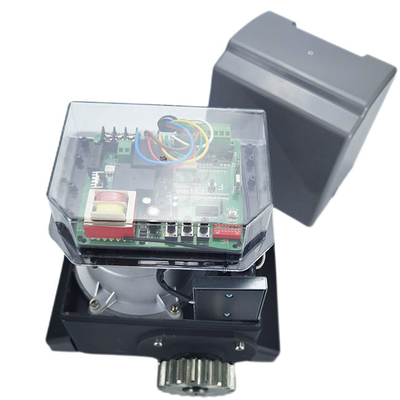

Control board Features

One-key cycle control/three-key control optional

Alarm light interface

Adjustable automatic shutdown time

pedestrian mode

apartment model

Limit switch NC/NO optional

Photocell NC/NO optional

Onboard switch power button

Turn motor sensitivity settings on and off separately

The terminals are only used to open, only to close external control equipment.

Adjustable Resistor Sensitivity

The door automatically stops and reopens when an obstacle is encountered

• gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operswing exterior door motor,articulated swing door opener,dual swing gate motor,swing gate opener dc,swing arms door operator for swing gate

swing gate motor heavy duty,heavy duty swing gate motor,automatic dual swing gate opener with factory pric

Features

1.) Fully integrated electromechanical system (frame not included)

2.) Control board interface for optional shock-resistant infrared photocell

3.) Alarm light interface

4.) Auto Delay Off

5.) Adjustable Resistor Sensitivity

6.) Automatic door stops and reopens when encountering obstacles

7.) Wireless remote control or wired remote control optional

One set include:

1 x Motor with built in Control Panel

- 2 x Remote Controls

- 2 x Manual Override Keys

- 1 x Motor mounting base plate

Parts List

1.Install backplane*1

2.Bracket*1

3.Expansion screw*4

4.Screw*4

5.Gasket*2

6.Magnet*2

7.Remote control*2

8.Clutch key*2

Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.
