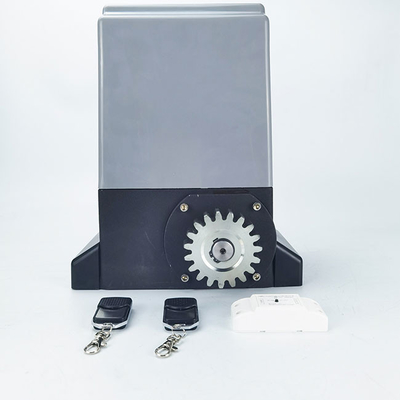

110V 2000kg Automatic Sliding Gate Opertaor Heavy Duty With All Accessories
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | G10ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Sliding Gate Motor | Open Style: | Sliding |
|---|---|---|---|
| Color: | Gray | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
| Opening Pattern: | Automatic | Metal Type: | Aluminum |
| Surface Treatment: | Galvanized | Application: | Public Building |
| Usage: | Construction Site | Size: | Width 27cmX Height 32cm |
| Advantage: | Easy Life | Alarm Lighting: | Optional |
| High Light: | Automatic Sliding Gate Opertaor,110V Automatic Sliding Gate Operator,Automatic Sliding Gate Operator 2000kg |
||
Product Description
Automatic Sliding Gate Motors 2000kg Factory Supply Sliding Gate Automatic Motor
sliding gate motor automatic sliding door,automatic sliding gate motor dc,sliding gate motor/opener/operatoratic gate opening motors electric gate motors
Gatech technology built-in control board for sliding gate opener, which make it automatical stop against extra resistances.This controller is the latest product developed by our company. It contains an overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor. Electronic parts are connected by SMT technology, more safety, more stable, more secure and reliable.
Features:
*Soft start and soft stop.
*Emergency release key in case of power failure
*Dual/single gate running mode Adjustable opening/closing interval between master and slave gate
*Stop/reverse in case of obstruction during gate opening/closing
*Built in adjustable auto-close
*Digital display indicates the running situation and setting menu.
*Reliable electromagnetism limit switch for easy adjustment
*Buit in max motor running time(MRT) adjustable for multiple safety protection
*Can be equipment with a wide range of the accessories
2000kg automatic sliding gate operator parameter
| Specifications | G20ST |
| Power supply | 220V/50Hz;110V/60Hz |
| Power of Motor | 1200W |
| Output torque | 45Nm |
| Operating Speed | 12m/min |
| Maximum Gate length | 20m |
| Shipping Mass of unit | 15.8kg |
| Maximum Gate Mass | 2000kgs |
Sliding door motor specification
1. Integrated structure of mechanical parts and electronic parts, built-in
Control panel, does not require any external controller;
2. When the power is off, release the clutch with the key and push the door manually.
3. The door automatically stops and reopens when encountering obstacles
4. The automatic closing time can be adjusted around 3-120 seconds
5. Good design, heavy use of copper motors (many suppliers use aluminum motors),
copper warm gear,
6. AC motor wiring is convenient.
7. The communication system is available in 600kg, 1000kg and 1500kg

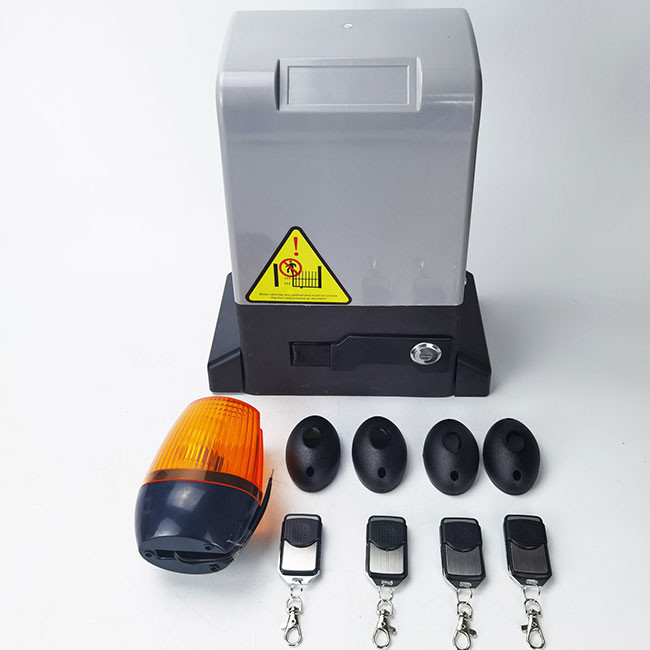

Complete set included:
- 1 x Motor with built in Control Panel
- 4 x Remote Controls
- 2 x Manual clutch Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
- 2 x Photocell
- 1 x Flash lamp
- 4 x Gear rack
|
Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor. |
|
|
Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor. |
|
|
|
|
Control board Features
One-key cycle control/three-key control optional
Alarm light interface
Adjustable automatic shutdown time
pedestrian mode
apartment model
Limit switch NC/NO optional
Photocell NC/NO optional
Onboard switch power button
Turn motor sensitivity settings on and off separately
The terminals are only used to open, only to close external control equipment.
Adjustable Resistor Sensitivity
The door automatically stops and reopens when an obstacle is encountered
Packaging & Shipping
Packing Details : Standard Export Carton, then in pallet
Delivery Details : Depends on the quantity
FAQ
Q1: What is your MOQ?
A: No min order for door opener. We also suggest wooden cases package for protection during shipment.
Q2: Can I get a sample of garage door opener for quality check?
A: Sample is available.
Q3: How can I get a price of needed garage door opener?
A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your requirements.
Q4: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q5: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q6: How to install your product, is it difficult?
A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q7: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.
