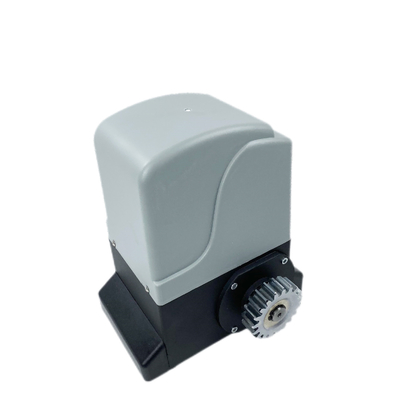

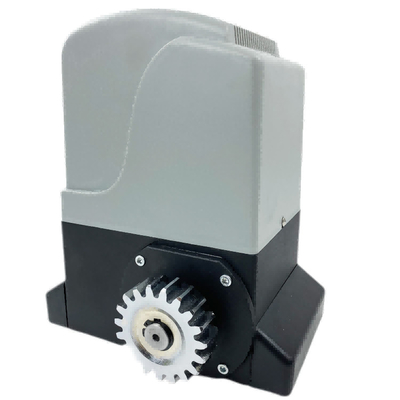

Galvanized Lightweight Electric Gate Openers For Driveways 600kg

Galvanized Lightweight Electric Gate Openers For Driveways 600kg

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Gate Motors Manufacturers Open Style: Sliding
Color: Grey,Green Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building,Residential
Usage: Villa And Dormitory Size: Width 27cmX Height 32cm
Advantage: Easy Life,Protection Alarm Lighting: Optional
High Light:

Galvanized Electric Gate Openers For Driveways

,

Lightweight Electric Gate Opener 600kgs

,

600kg solar electric gate opener

Product Description

Lightweight Ac 220v Single Phase 600kg Electric Sliding Gate Operators Residential Use



24V version of the speed and position management and control system. Built-in four channel radio receiver

Proximity limit switches allow for accurate and safe installation in any environmental conditions.

Backup battery powered system, on-board unit (24V version) can be installed.

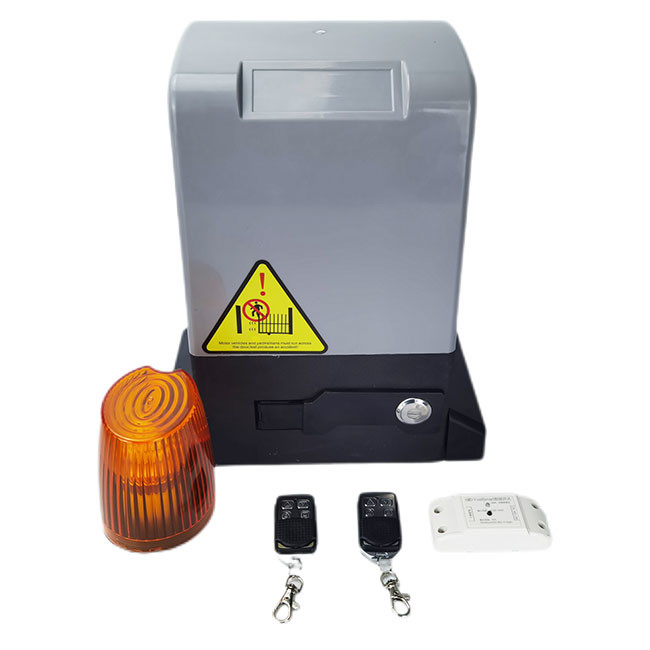

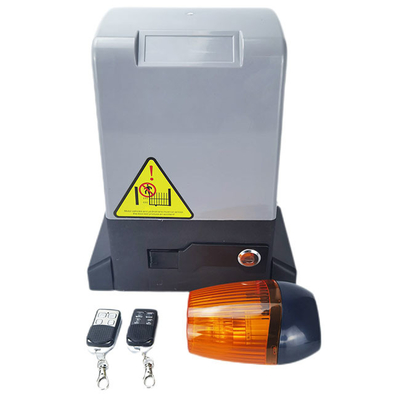

Gear Motor, 2x Remote Controls, Safety Sensors, Signal Lights, Rack and Pinion



     Lightweight Electric Sliding gate Openers G6  Residential Use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 250W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 15kg(- 32 Ibs)
Maximum Gate Mass 600kgs (~1323 lbs)



Sliding door motors up to 600kg in 24V versions;

Built-in control panel, built-in 433 MHZ and electromechanical or magnetic limit switch;

Lightweight gate motors and support standard sliding gate with 600kg;

Basic accessories is with galvanized steel gear rack and opinion,such as 12mm with mode 4;

GATECH nylon pinions are made with a special polymer formula for your extra optional;

The automatic door closing delay time is adjustable.

Control with force adjustable .



Control panel for Electric sliding gate operators 600kg

Galvanized Lightweight Electric Gate Openers For Driveways 600kg 0Galvanized Lightweight Electric Gate Openers For Driveways 600kg 1













FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 600kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
