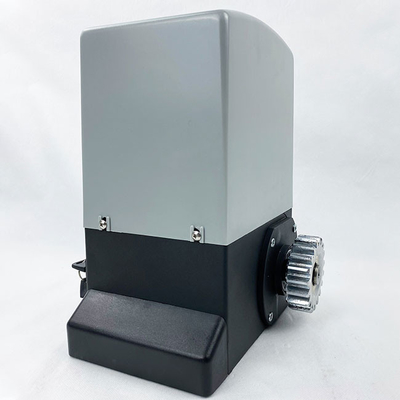

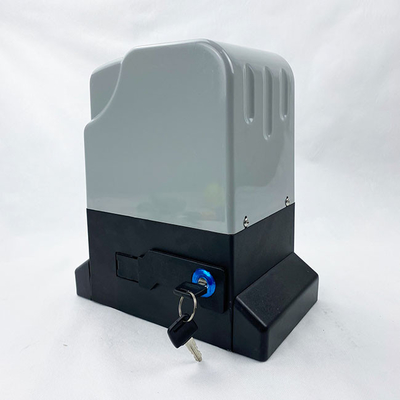

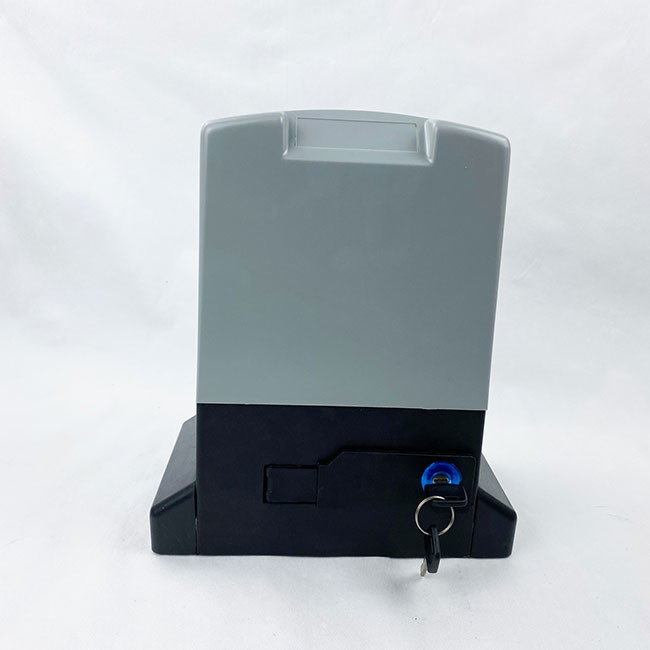

12 m/min Electric Sliding Gate Opener 550W 1500kg Single Phase

12 m/min Electric Sliding Gate Opener 550W 1500kg Single Phase

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor With Rails Open Style: Sliding
Color: Grey,Brown Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building,Shop
Usage: Villa And Hospital Size: Width 27cmX Height 32cm
Advantage: Easy Life,Powerful Alarm Lighting: Optional
High Light:

12 m/min Electric Sliding Gate Opener

,

Electric Sliding Gate Opener 550W

,

1500kg residential sliding gate motor

Product Description

Ac 220v Single Phase 1500kg Electric Heavy Duty Sliding Gate Operators Residential Use



When asked about the speed of gate, you could trust it is more quick than other gate motors if you need high speed for this gate operators, please ask more information from us.



When asked about the size of gates that can be automated, you can rest assured that any gate weighing between 200 and 3000 kg can be automated. 1000-1500kg in weight are suitable for many sizes of sliding gate what you want to be automated. Single sliding gate and dual gate are always is a ideal choice for you.



        Heavy Duty Sldiing Gate Motors G15  Residential Use

Power Supply 220V +/- 10%, 50Hz- Single Phase
Power of motor 550W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17kg(- 37 Ibs)
Maximum Gate Mass 1000 kgs~ 1500 kgs (2025 lbs ~ 3307 lbs)



Operates on a remote the system can be operated using almost any access control system (RFID, Wifi.)

Comes with a flash to notify that the door is in operation.

The automatic door closing delay time is adjustable.

Control with force adjustable .

Built-in obstacle detection and overcurrent settings.

Behavioral control of blocking by photocells.

Soft start and soft stop



Key of sliding gate openers



12 m/min Electric Sliding Gate Opener 550W 1500kg Single Phase 012 m/min Electric Sliding Gate Opener 550W 1500kg Single Phase 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

220V input voltage.



What is the Max weight of gate?

Max weight supporting is 1500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
