250W Lightweight Sliding Gate Operators 600kg Galvanized PVC Coated

250W Lightweight Sliding Gate Operators 600kg Galvanized PVC Coated

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Gear For Sliding Gate Motor Open Style: Sliding
Color: White ,Yellow Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building,Home
Usage: House And Hospital Size: Width 27cmX Height 32cm
Advantage: Easy Life, Convenient Alarm Lighting: Optional
High Light:

250W Sliding Gate Operators

,

Sliding Gate Operators 600kg

,

industrial gate operator 250W

Product Description

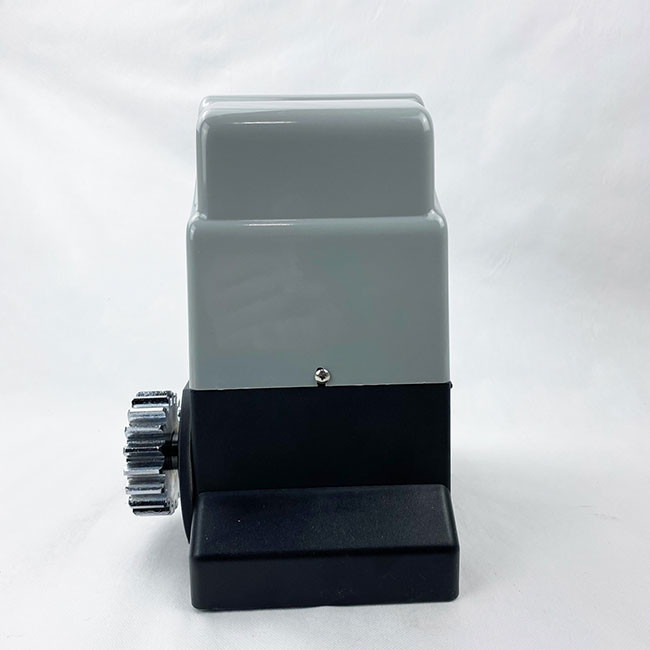

Ac 110v 600kg Electric Lightweight Sliding Gate Operators Residential Use



Most AC motors make a loud machine sound when the gears start moving from a cold start. The G6 motor automatically compensates for the starting force so that it does not produce any sound. Soft start and stop, perfect choice for your home. G6 operators with small size and compat original desgin from our company is suitable for any sliding gate what you want to be automated. Any sizes of gate ,just let us know.



         Electric Light weight Sliding Gate Motors G6  Residential Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 250W
Output Pinion 19 Tooth Mod 4
Operating Speed 12m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 15kg(- 32 Ibs)
Maximum Gate Mass 600kgs (~1323 lbs)



Built-in 433 MHZ and electromechanical or magnetic limit switch;

Galvanized steel gear rack is one of the necessary for this gate motor to work;

GATECH nylon pinions are made with a special polymer formula for your extra optional;

The automatic door closing delay time is adjustable.

Control with force adjustable .

Built-in obstacle detection and overcurrent settings.

Operates on a remote the system can be operated using almost any access control system (RFID, Wifi.)



Connection of Wifi controller



250W Lightweight Sliding Gate Operators 600kg Galvanized PVC Coated 0



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 600kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
