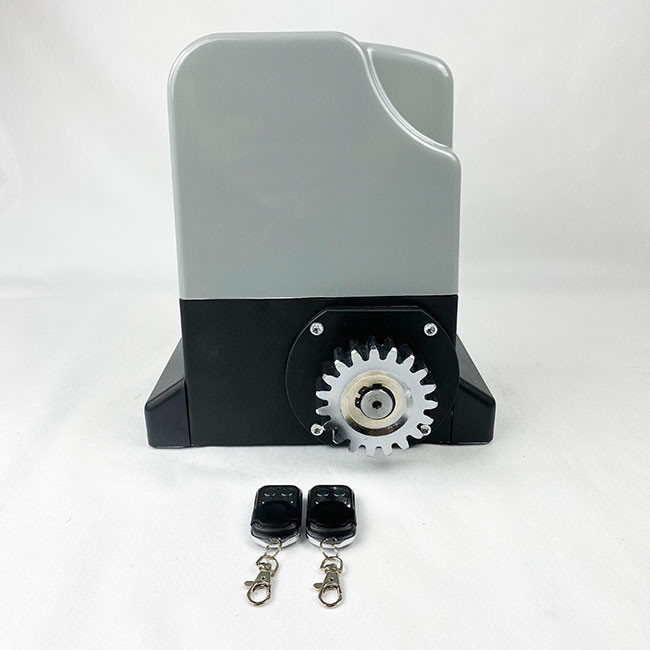

1.5T Heavy Duty Sliding Driveway Gate Motor 550W High Speed

1.5T Heavy Duty Sliding Driveway Gate Motor 550W High Speed

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Sliding Gate Motor Open Style: Sliding
Color: Blue,Red,Yellow Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Industrial,Home
Usage: Garden Decoration,Villa, Dormitory Size: Width 27cmX Height 32cm
Advantage: Easy Control, Convenient Alarm Lighting: Optional
High Light:

1.5T Sliding Driveway Gate Motor

,

Sliding Driveway Gate Motor 550W

,

1.5T 120v electric gate opener

Product Description

Fast Ac 110v 1500kg Heavy Duty Fast Sliding Gate Openers Industrial Use



The main part of an electric automatic sliding door is its door motor. These door motors come in two different variants - AC and DC. The main difference is that DC motors are used for small gates with solar power, battery backup because AC motors are used for heavier gates because of their strength and longevity.



                               High speed sliding gate openers G15F  Industrial Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 550W
Output Pinion 19 Tooth Mod 4
Operating Speed 24m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17 kgs(- 37 Ibs)
Maximum Gate Mass 1000 kgs ~ 1500 kgs (2025 lbs ~ 3307 lbs)



When asked about the size of gates that can be automated, you can rest assured that any gate weighing between 200 and 3000 kg can be automated. And when asked about the speed of gate, you could trust it is more quick than other gate motors.

24M/Min is the best advantage for this heavy duty sliding gate motors. Quick with heavy duty by 110v single voltage,which is suitable for many countries not with 230v input.



The door is automatically locked and can only be operated by a remote control and a key that provides manual operation.

Built-in obstacle detection and overcurrent settings.

Behavioral control of blocking by photocells.

Soft start/shutdown.



PCB sliding gate operators



1.5T Heavy Duty Sliding Driveway Gate Motor 550W High Speed 01.5T Heavy Duty Sliding Driveway Gate Motor 550W High Speed 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 1500kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
