60Hz Fast Sliding Gate Opener Aluminum Sliding Driveway Gate Opener

60Hz Fast Sliding Gate Opener Aluminum Sliding Driveway Gate Opener

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G20F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor 110V Open Style: Sliding
Color: Blue,Red,Brown Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Industrial,Garden
Usage: Garden Decoration,Villa, House Size: Width 27cmX Height 32cm
Advantage: Easy Control, Trustworthiness Alarm Lighting: Optional
High Light:

60Hz Fast Sliding Gate Opener

,

Aluminum Sliding Driveway Gate Opener

,

60Hz sliding driveway gate motor

Product Description

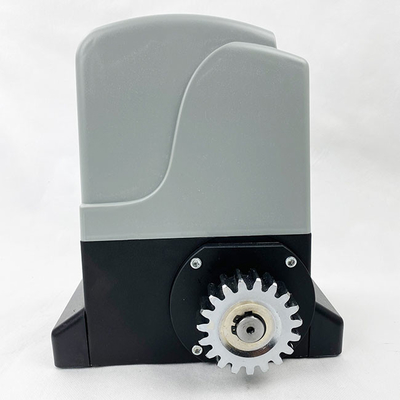

Fast Ac 110v 2000kg Heavy Duty Fast Sliding Gate Openers Industrial Use





Sliding gate openers for doors weighing up to 2000 kg! Fast Heavy-duty AC motors gate are capable of handling heavy-duty gate.



The gear motor is the key part of an electronic automatic sliding gate.These gate motors come in two different variants - Alter Current and DC. Dc gate motors are popular to be used for lightweight and small gates with solar power by battery backup. Ac gate motors are always used for heavier gates with strength and logevity.



                            High speed sliding gate motors  G20F  Industrial Use

Power Supply 110V +/- 10%, 60Hz- Single Phase
Power of motor 700W
Output Pinion 19 Tooth Mod 4
Operating Speed 24m/min
Motor Cooling Direct Drive Fan (1400RPM)
Ambient Temperature Range From-37'F (-35°C) to 149.F (+65'C)
Motor Thermal Protection Electronic
Maximum Gate length 20m
IPRating 44
Shipping Mass of Unit 17.5 kgs(- 37 Ibs)
Maximum Gate Mass 1500 kgs ~ 2000 kgs (3308 lbs ~ 4410 lbs)



Fast sliding gate motors advance:

24M/min, it is very fast compare with other gate motors by diffferent opinion and gear motors.

More safe

Quick



Limit Switch Type Magnet or Spring limit
Without Electricity Manual, Key Usage
Warranty Perriod 2 year
Extented Warranty Available



PCB sliding gate openers

60Hz Fast Sliding Gate Opener Aluminum Sliding Driveway Gate Opener 060Hz Fast Sliding Gate Opener Aluminum Sliding Driveway Gate Opener 1



The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 2000kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One unit is available,but it is sample cost. For large quantity,Please negotiable with us.



What kind of payments do you support?

Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.



What is your warranty terms?

2 year warranty



How long is your delivery time?

For standard products, 10-25 days are available.
