600kg Single Garage Roller Door Motor Ac 220v 300W Remote Control

600kg Single Garage Roller Door Motor Ac 220v 300W Remote Control

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR600A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Garage Roller Shutter Motor Color: Grey,purple
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: 12v Rolling Shutter Motor
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Shopfront,supermark
High Light:

600kg Single Garage Roller Door Motor

,

Roller Door Motor Ac 220v

,

300W electric garage roller door opener

Product Description

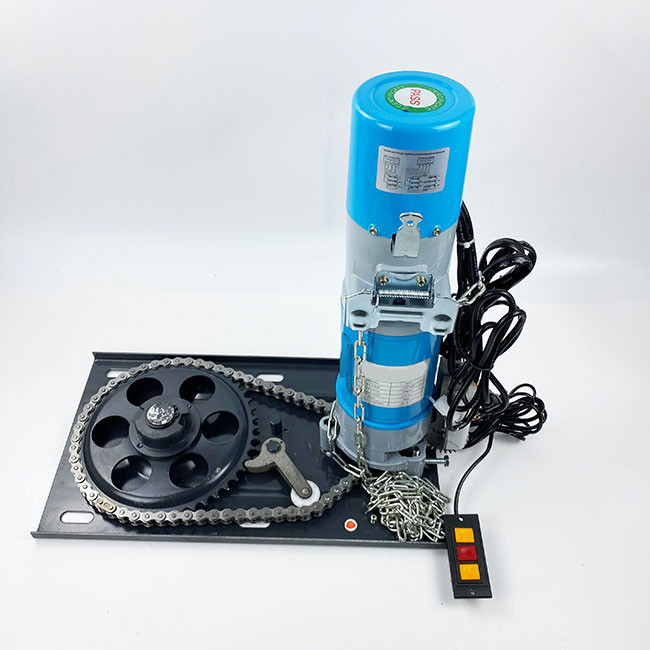

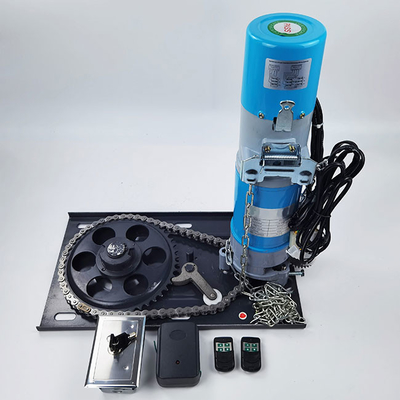

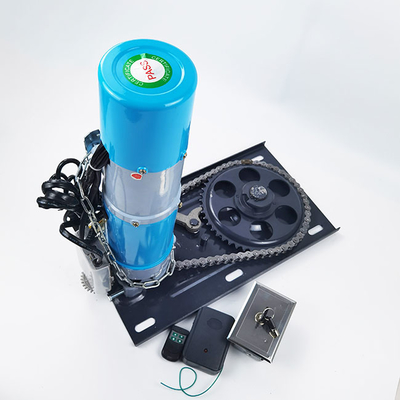

Ac 220v Single 600kg Copper Garage Roller Shutter Motors Home Use



Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:



1. Beautiful shape, advanced structure, strong power;

2. Using imported electrical components, safe and stable;

3. Low noise, small vibration and low power consumption;

4. Ligh weight, small size, easy installation, long life, reliable performance;

5. Manual operation is convenient in course of power failure, and power storage device can also be equipped;

6. It could be equipped with remote control assembly to realize remote operation; With motor operation overheating protection device.



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9



600kg Single Garage Roller Door Motor Ac 220v 300W Remote Control 0600kg Single Garage Roller Door Motor Ac 220v 300W Remote Control 1

One set in two cartons, plastic bag inside, carton outside

( The outside cartons could be customized according to customers' requirement, like printing logo or words on it or according to your own design to print it.)

A 20 GP container could hold about 520-550 PCS AC motor, if DC motors, 480-520 PCS is available.
