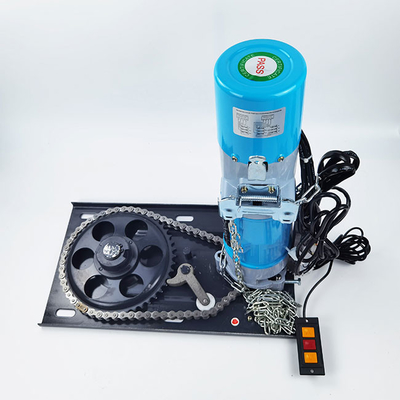

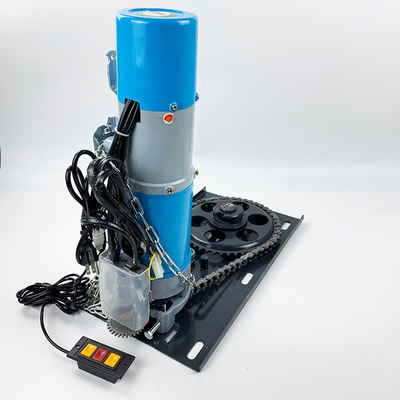

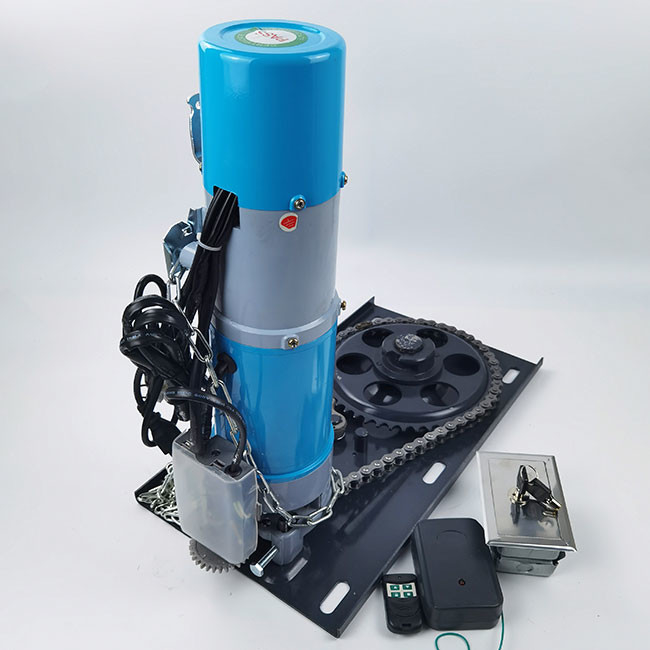

200W Garage Roller Shutter Motor 300kg Remote Control Roller Door Opener

200W Garage Roller Shutter Motor 300kg Remote Control Roller Door Opener

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE,ROHS
Model Number: GR300A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Type: Garage Roller Shutter Motor Color: White,Green
Phase: Three Phase,Single Phase,Single/Three-phase,Single-phase Product Name: Gear Rolling Shutter Motor
Warranty: 1 Year Material: Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS
Application: Industrial Door,Home Appliance,Garage Shutter Door
High Light:

200W Garage Roller Shutter Motor

,

300kg Remote Control Roller Door Opener

,

300kg sectional roller door motor

Product Description

Ac 220v Single 300kg Copper Garage Roller Shutter Motors Home Use



Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:

1. Optional: copper or aluminum AC electric rolling door motor;

2. Beautiful appearance,advanced structure,strong horsepower;

3. Low noise, small vibration, low power consumption;

4. A motor overheating protection device(140℃);

5. Imported electrical components, security and stability;

6. Lightweight, small size, easy installation, long life and reliable performance;

7. Easy manual operation when power could also be equipped with electrical storage devices;

8. Assembly could be equipped with remote control, to achieve long-range operation.



Model

Rated output torque

(N.m)

Rated output speed

(r/min)

Motor power

(w)

Rated voltage

(V/Hz)

Rated current

(A)

Continuos working time(min)

Durm dube outer diameter

(mm)

Max lifting force

(kg.f)

Max lifting height

(m)

AC300-1P 225 5.4 200 220/50 2.8 8 114 300 6
AC600-1P 412 5.4 300 220/50 3.3 8 140 600 6
AC800-1P 647 4 400 220/50 4.7 8 165 800 8
AC1000-1P 809 4 400 220/50 4.9 8 165 1000 8
AC1500-1P 809 3.5 700 220/50 8.2 8 165 1500 9



1) Relative humidity: 90% (25°C)

2) Short hour working system, continuous operation not exceeding 5 minutes with one phase and 10 minutes with three phases

3) Stylish, advanced structure and strong power

4) Imported electronic parts

5) Safe and stable

6) Little vibration and small power consumption



200W Garage Roller Shutter Motor 300kg Remote Control Roller Door Opener 0200W Garage Roller Shutter Motor 300kg Remote Control Roller Door Opener 1



Terms of Payment:T/T ,Paypal.Western Union,ect.

Delivery time : 15-35 days after receipt of deposit.

OEM for customs is available.

Sample order available, the customers will pay the sample fee and freight cost firstly and that charge will be refunded in the following bulk order.

Any inquiry or question will be reply in 24 hours during working days.
