AC 1.5T Automatic Gate Opener Kit 35Nm Sliding Gate Motor Kit

AC 1.5T Automatic Gate Opener Kit 35Nm Sliding Gate Motor Kit

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15set

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Slidng Gate Motor Automatic Kits Open Style: Sliding
Color: Blue Material: Aluminum
Type: Entry Doors Feature: Waterproof
Application: Garage Door Optional: Lamp
High Light:

AC 1.5T Automatic Gate Opener Kit

,

35Nm Sliding Gate Motor Kit

,

35Nm commercial gate opener kits

Product Description

AC 1500kg Sliding Operator Automatic Gate Opener Kit Industrial Use





This sliding gate opener set contains all the accessories needed , which maximizes the practicality of the motor. photocell could sense whether there are obstacles, warning lights could remind passing pedestrians to pass carefully,bringing you a smart life.



1. Totally integrated electrical mechanical system (excludes racks).

2. Control board interface for optional impact-proof infrared photocells.

3. Can connect flashing light and keypad and electric lock and so on.

4. Automatic delayed closing.

5. Adjustable resistance sensitivity.

6. Auto gate stop and re-open when an obstacle is encountered.

7. Wireless remote control or wired remote control are optional.

Specifications G8 set G10 set G15 set G20 set
Power supply 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz
Power of Motor 370W 550W 550W 700W
Output torque 20Nm 22Nm 35Nm 45Nm
Operating Speed 12m/min 12m/min 12m/min 12m/min
Maximum Gate length 20m 20m 20m 20m
Shipping Mass of unit 12.4kg 12.7kg 14.7kg 15.8kg
Maximum Gate Mass 800kgs 1000kgs 1500kgs 2000kgs

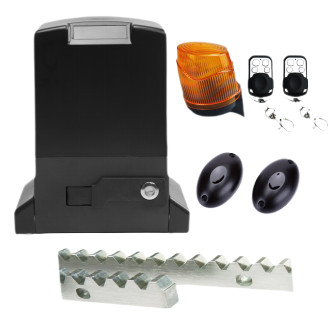

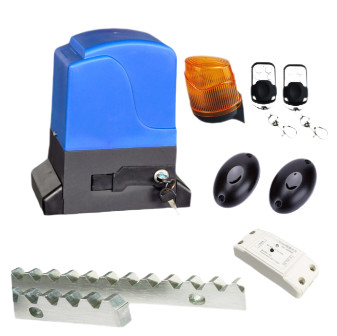

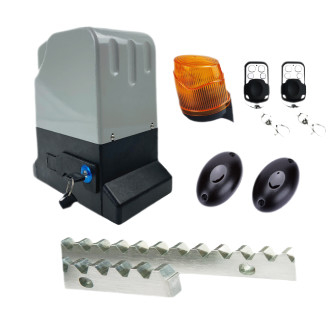

Standard accessories of automatic sliding gate opener set

* 1 pcs gate motor

* build-in control board

* 4 pcs remote controls

* 2 pair of photocell

* 1 pcs flash lamp

* 4M gear racks

* 2 pcs release keys

* 1 English user manual

* 1 pair of magnets

* 1 metal mounting plate

* bolts & nuts



This is a kit for 1500kgs automatic gate openers
