Powder Coated Sliding Gate Operator Kit 750W 1500 Kg

Powder Coated Sliding Gate Operator Kit 750W 1500 Kg

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Auto Gate Motor Sliding 1500kg Kit Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

1500Kg Automatic Gate Opener Kit

,

750W Automatic Gate Opener Kit

,

Powder Coated Automatic Gate Opener Kit

Product Description

750W 1500 kg Heavy Duty sliding gate operator kit with Luxury accessories



This device is one of the automatic door openers with new design and integrated control system introduced by our company. Our push-pull door opener has the characteristics of low noise, light weight, large starting torque, stable and reliable, small and fashionable and so on. When using lower voltages, the motor can still work for short periods of time. The control panel has overload protection. In the event of a power failure, it can be driven by the clutch release motor, and the user can disengage the clutch by assigning a key to manually open or close the gate. Using an optional infrared photocell, if an obstacle is sensed, the gate will automatically stop and reopen.



1500kg automatic sliding gate operator parameter

Specifications G15
Power supply 220V/50Hz;110V/60Hz
Power of Motor 750W
Output torque 35Nm
Operating Speed 12m/min
Maximum Gate length 20m
Shipping Mass of unit 14.7kg
Maximum Gate Mass 1500kgs



Feature

1. AC/DC motor with built-in control panel.

2. Built-in manual operation with 2 unique operation keys provided in case of emergency or power failure.

3. All metal gears make it durable.

4. Soft start and soft stop

5. Resistance sensitivity and automatic closing delay time are adjustable.

6. Stop/reverse when encountering obstacles during door opening/closing.

7. Reliable mechanical spring limit or magnetic limit is optional.

8. Aluminum alloy base, can deal with all kinds of bad weather.

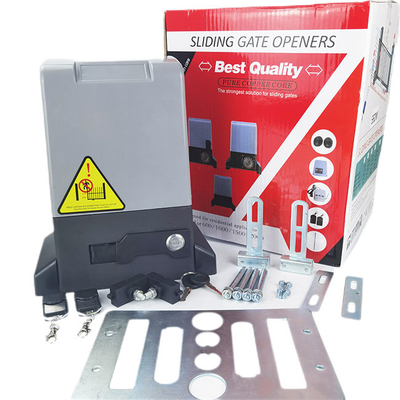

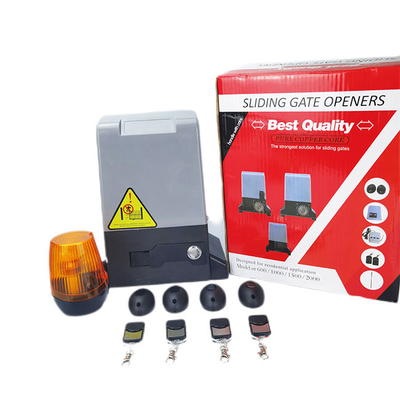

Complete Kit included:

- 1 x Motor with built in Control Panel

- 4 x Remote Controls

- 2 x Manual clutch Keys

- 1 x Motor mounting base plate

- 1 x Instruction Manual

- 2 x Photocell

- 1 x Flash lamp

- 4 x Gear rack



Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.new product black color spring limit gear driving sliding door opener weighting up to 1500kg

Powder Coated Sliding Gate Operator Kit 750W 1500 Kg 0

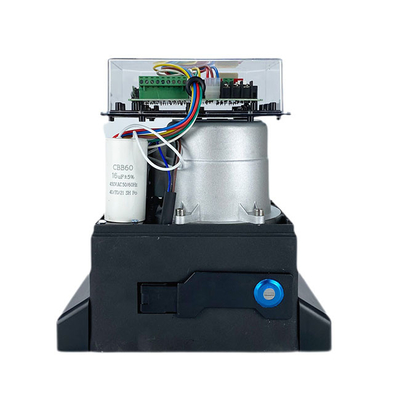

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

electric gate driver for sliding door,sliding door opener with battery,sliding gate motors kit,intelligent sliding gate opener kit



Powder Coated Sliding Gate Operator Kit 750W 1500 Kg 1

Powder Coated Sliding Gate Operator Kit 750W 1500 Kg 2

Powder Coated Sliding Gate Operator Kit 750W 1500 Kg 3
