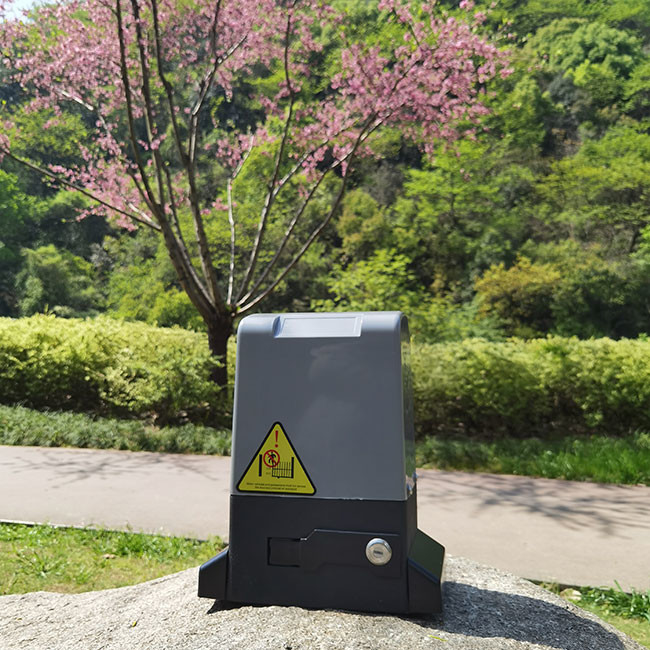

1.2kW 2000 Kg Heavy Duty Sliding Gate Operator Kit Galvanized
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | G20ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Auto Gate Motor Sliding 2000kg Kit | Open Style: | Sliding |
|---|---|---|---|
| Color: | Gray | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
| Opening Pattern: | Automatic | Metal Type: | Aluminum |
| Surface Treatment: | Galvanized | Application: | Public Building |
| Usage: | Construction Site | Size: | Width 27cmX Height 32cm |
| Advantage: | Easy Life | Alarm Lighting: | Optional |
| High Light: | 1.2kW Automatic Gate Opener Kit,1200W Sliding Gate Operator Kit,Automatic Gate Opener Kit Galvanized |
||
Product Description
1200W 2000 kg Heavy Duty sliding gate operator kit with Luxury accessories
| Specifications | G20 |
| Power supply | 220V/50Hz;110V/60Hz |
| Power of Motor | 1200W |
| Output torque | 45Nm |
| Operating Speed | 12m/min |
| Maximum Gate length | 20m |
| Shipping Mass of unit | 15.8kg |
| Maximum Gate Mass | 2000kgs |
Feature
1. Fully integrated electromechanical system (without rack)
2. Single-button cycle control/three-button control can
Selected
3. Optional shock-resistant infrared photocell control board interface
4. Alarm light interface
5. Automatic delay off
6. Pedestrian mode
7. Adjustable resistance sensitivity
8. The gate will automatically stop and reopen when encountering an obstacle
9. Wireless remote control or wired remote control optional

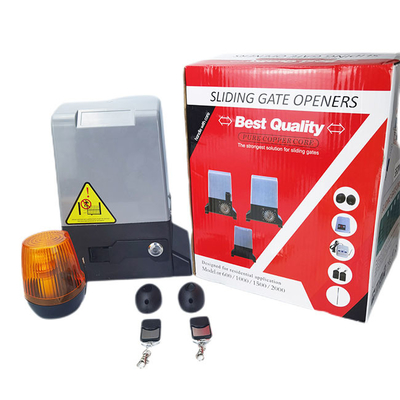

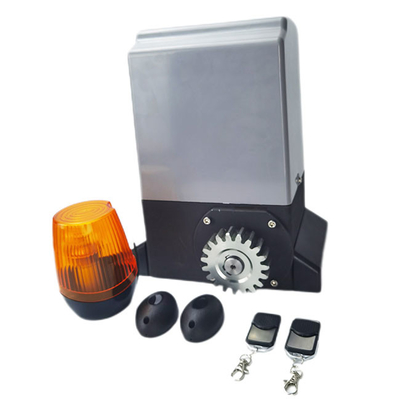

Complete Kit included:
- 1 x Motor with built in Control Panel
- 4 x Remote Controls
- 2 x Manual clutch Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
- 2 x Photocell
- 1 x Flash lamp
- 4 x Gear rack
|
Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.automation for sliding gate 2000kg, residential use sliding gates opener,sliding gate opener accessories,ac motor sliding gate operator |
 |
|

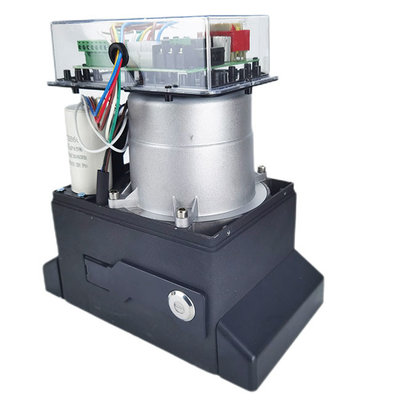

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor. |
|
|
|
|
sliding gate motor FAQ:
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
