Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G6ST

Payment & Shipping Terms:

Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Electric Gate Motor Prices Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Material: Metal Opening Pattern: Automatic
Metal Type: Aluminum Surface Treatment: Galvanized
Application: Public Building Usage: Construction Site
Size: Width 27cmX Height 32cm Advantage: Easy Life
Alarm Lighting: Optional
High Light:

Waterproof Automatic Sliding Gate Motor

,

600Kg Automatic Sliding Gate Opener

,

Automatic Sliding Gate Opener Galvanized

Product Description

Light Weight 600 Kg Sliding Gate Motor Gate Sliding Gate Opener



For more than ten years, we have adhered to the principle of quality as the most important thing, and strictly controlled the products to ensure the longest service life.Our professional salespersons provide you with one-to-one service, and they will provide you with professional solutions.



  • Power supply range: AC220V/110V±10% 50/60Hz
  • Net weight: 12.4kg
  • Max loading weight: 600kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 370w
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open(close) speed: v=12m/min
  • Maximum pull: 22N
  • Package one set in one carton

Features of the sliding gate opener:swing exterior door motor,articulated swing door opener,dual swing gate motor,swing gate opener dc,swing arms door operator for swing gate

A. Brushless waterproof motor: high-speed pure copper core powerful motor. More stable operation and ultra-quiet.

B. Control chip: multi-function wiring port, multi-speed adjustment, resistance adjustment, door closing delay adjustment, super large transformer, the function is more convenient.

C. Pure copper motor: quiet and durable. Low energy consumption.

D. Install the infrared sensor: By installing the infrared anti-sensor device, if the door opener blocks the obstacles in the door

Within the monitoring range of the door closing process, the door opener stops closing the door and opens it immediately.

E. In case of power failure, the gate can be manually opened and closed after release.

F. Available for 220V/110V/24V.



Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof 0

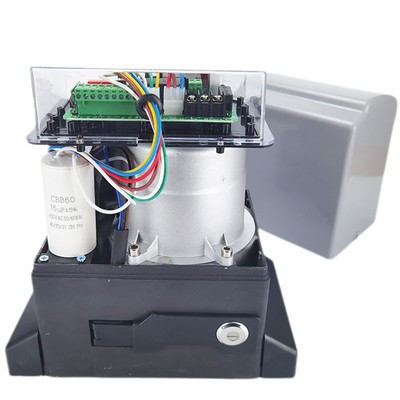

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof 1

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof 2

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof 3

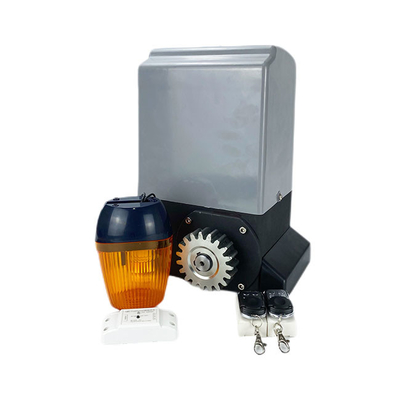

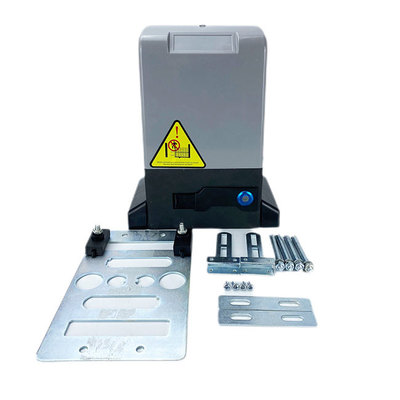

Complete set included:

- 1 x Motor with built in Control Panel

- 4 x Remote Controls

- 2 x Manual clutch Keys

- 1 x Motor mounting base plate

- 1 x Instruction Manual

- 2 x Photocell

- 1 x Flash lamp

- 4 x Gear rack



Control board Features

One-key cycle control/three-key control optional

Alarm light interface

Adjustable automatic shutdown time

pedestrian mode

apartment model

Limit switch NC/NO optional

Photocell NC/NO optional

Onboard switch power button

Turn motor sensitivity settings on and off separately

The terminals are only used to open, only to close external control equipment.

Adjustable Resistor Sensitivity

The door automatically stops and reopens when an obstacle is encountered



FAQ

1. How many sliding gate models do you have ?

-------- We have 400KG ,600KG ,800KG ,1000KG ,1500KG ,2000KG ,3000KG sliding gate motors for you choose.

2. Which accessories do you supply for the Sliding gate opener?

-------- Gear rack (Steel and Nylon), Push button, Photocells sensor, Alarm light, GSM Gate Opener,Wifi controller, Extra remote controller, Keypad and Solar panel and so on.

3. What is the frequncy of your remote control?

-------- It is 433Hz.

4. What is your products waterproofing grade?

-------- Yes, it is IP54 or IP55.

5. What's you warranty?

-------- 1 year time warranty.

Light Weight 600 Kg Automatic Sliding Gate Opener Waterproof 4
