DC 800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | SG800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Solar Farm Gate Opener Sliding | Open Style: | Sliding |
|---|---|---|---|
| Color: | Brown | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Application: | Farm, Garden And Garage Door | Optional: | Solar Panel, Lamp,receiver,remote Control |
| High Light: | Solar Powered Automatic Sliding Gate Opener,800kg Automatic Sliding Gate Opener Kit,170W Automatic Sliding Gate Opener |
||
Product Description
DC 800kg Solar Powered Automatic Sliding Gate Opener Kit 50Hz 170W
DC 800kg Solar Sliding Motor Automatic Gate Opener Kit Residential Use

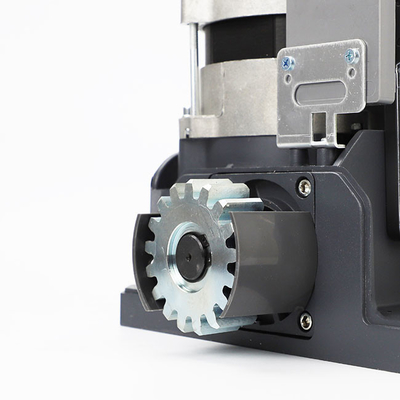

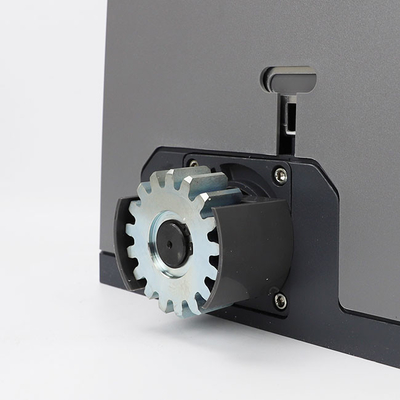

As the main core of electric sliding gates-the choice of electric gate openers is very important. Gatech sliding gate motors have a variety of models, ranging from load-bearing gates 400 kg to 3000 kg gates, frequent opening types, overheating protection types,Resistance rebound type, fast switching type. Gatech products ensure product safety, quality, reliability and durability.

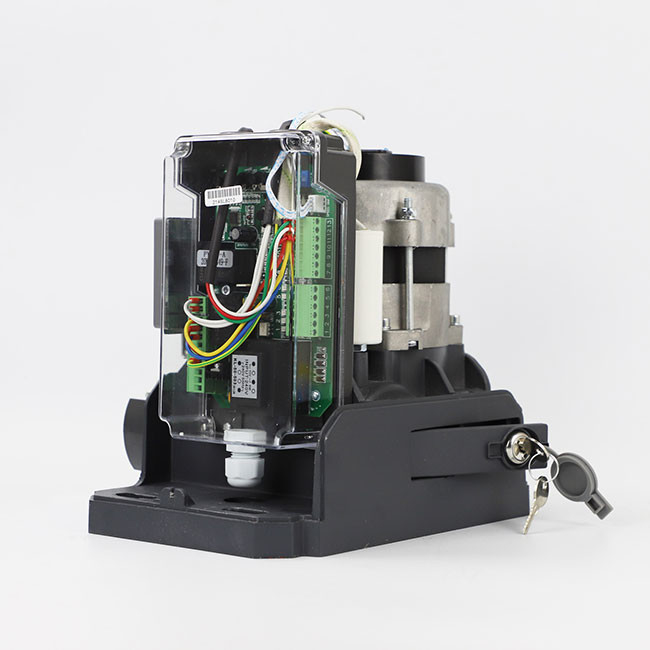

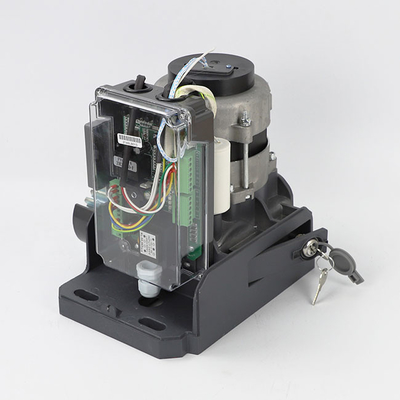

1) Integrated mechanical and electrical, all functions on one controller
2) Radio controller or lines to control open, close and stop functions
3) Magnetic limit switch, the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,
then after 10seconds it attempts to close automatically unless you press the stop keystroke
9) Movement indication - the indicator lights up when the door is moving
10) Optional line control or remote control
| Model | SG500DC | SG800DC |
| Power supply | 220V/50Hz;110V/60Hz | 220V/50Hz;110V/60Hz |
| Motor power | 150W | 170W |
| Gate moving speed | 16-18m/min | 16-18m/min |
| Maximum loading weight | 500Kg | 800Kg |
| Remote control distance | ≥30m | ≥30m |
| Remote control mode | Single /Three button mode | Single /Three button mode |
| Limit switch | Electronic limit switch | Electronic limit switch |
| Noise | ≤60dB | ≤60dB |
| Working duty | S2, 20min | S2, 20min |
| Recording of up remote controls | 100 | 100 |
| Frequency | 433.92 MHz | 433.92 MHz |
| Working temperature | -20°C ~ +70°C | -20°C ~ +70°C |
| Package weight | 10Kg | 11Kg |
| Battery specification | 12V/9Ah | 12V/9Ah |
Solar panel
 |
|
|
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Payment terms
1. Payment: T/T,Paypal,Western Union ,30% deposit before production,70%
balance paid before delivery
2. Shipping freight are quoted based on your requests
3. Discounts are offered based on order quantities
FAQ
1. What is minimum order quantity(MOQ)? No MOQ, 1 sample is available.
2. What types of shipping method you have? We can ship by ocean shipping for bulk order, UPS/TNT/DHL for sample order.
3. How many days it take if we place order? 1-2 days for sample order, 3-5 days for the order within 30 sets, 5-7 days for 100 sets.
4. What kind of certificates do you have? We have CE certificate for motor, and MSDS for batteries.
