300kg AC Rolling Shutter Opener Garage Door Side Motor With Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GR300CU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | AC Roller Aluminium Shutter Motor | Color: | Blue,Green,Red Etc. |
|---|---|---|---|
| Phase: | Single Phase | Product Name: | Electric Roller Shutter Motor |
| Warranty: | 1 Year | Material: | Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS |
| Application: | Shopping Mall,Home Use | Copper: | Copper Wire |
| High Light: | 300kg Garage Door Side Motor,ROHS Electric Roller Shutter Motor,ROHS Garage Door Side Motor |
||
Product Description

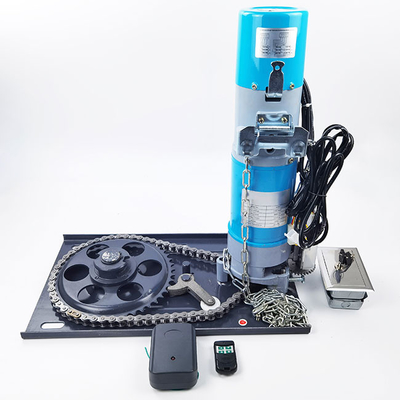

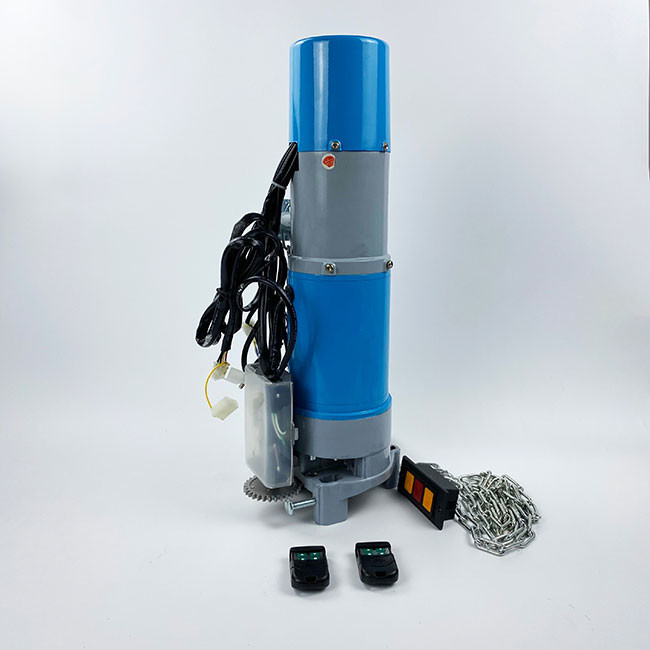

300kg AC Rolling Shutter Opener Garage Door Side Motor With Controller
Electric security rolling door motors are using general AC motor with mature process, stable quality reasonable prices. Our products are being sold throughout Germany, Thailand, Vietnam, Chile and a host of other countries and regions.
| Model |
Rated voltage (V/Hz) |
Max lifiting force (kg.f) |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Max lifiting height (m) |
Standard Barrel Dim(inch) |
| GR300CU | 220/50 | 300 | 225 | 5.4 | 200 | 6 | 6'' |
side motor,rolling shutter motor,rolling door motor,garage door shutter motor
Key Specifications:
AC220V 300kg Single phase Rolling shutter side motor
1. Low noise, small vibration and low power consumption;
2. Beautiful shape, advanced structure, strong power;
3. Using imported electrical components, safe and stable;
4. Light weight, small size, easy installation, long life, reliable performance;
5. Manual operation is convenient during power failure, and power storage device can also be equipped;
6. It can be equipped with remote control assembly to realize remote operation;With motor operation overheating protection device.
 |
|
|
|
Product Features & Advantages
1. 100% copper winding material inside the motor, so it have a larger capacity and durable than other motors.
2. Overheat protection :The motor is with overheat protect equipment. If the temperature up to 110, the power supply will be cut off automatically to protect the motor. Till the temperature down to 70, it can be used again.

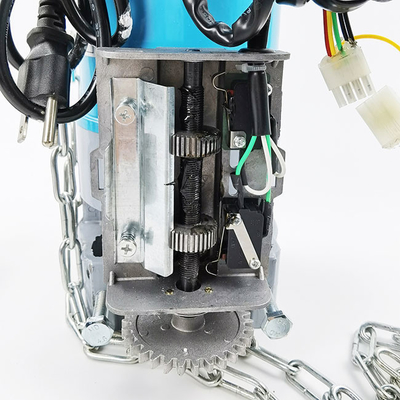

3. Mechanic Limit :Limit switch adjusts the door position in both "up" and "down" precisely and safely.
4. With convenient and stability control function, can be operated by remote control;
5. Manual button: Up, Stop and Down. You can through the manual button which makes the rolling door open and close.
6. Operated by manual chain when power off.
7. Clutch lever: When the power is turned off, you can pull down the clutch lever, the rolling door closed.
8. Noise reduction gear, special thread design, effectively reduce noise. High-strength stainless steel is thickened, stable and not swaying, and enhances service life.
9. UPS lightning protection and rectification, UPS double lightning protection, effectively prevent lightning strikes, safer to use in
Working Environment and Conditions:
1) Air temperature change as well as season.
2) Relative humidity:90%(25°C).
3) Voltage and frequency is in line with the product nameplate.
4)Short hour working system, continuous operation not less than 5 mins.
