2000KG Electric Sliding Gate Opener Of All Accessories With 4 Remote And APP Control
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | G20set |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Sliding Door Motor Copper Kit | Open Style: | Sliding |
|---|---|---|---|
| Color: | Blue,Black | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Application: | Garden And Park | Optional: | Transmitter And Remote Controls |
| High Light: | 2000KG Electric Sliding Gate Opener,Sliding Door Motor Copper Kit,Electric Sliding Gate Opener Waterproof |
||
Product Description
2000KG Electric Sliding Gate Opener Of All Accessories With 4 Remote And APP Control
2000KG Electric Gate Opener Of All Accessories With 2 Remote & APP Control
The sliding gate opener are used to drive sliding gates for industrial,commercial and residential uses.The operators can be fitted with gear wheel or chain wheel according to your needs,and featured with powerful starting strength, capable of overwork at short time.
In case of power failure, an emergency release key allows operate gate manually.
gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator
Features

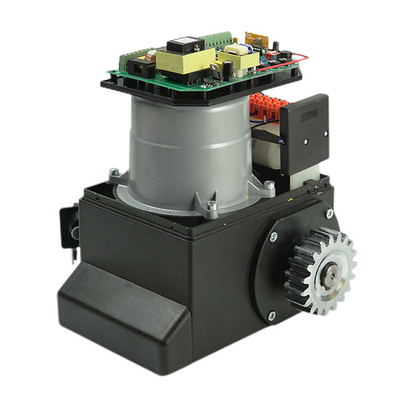

A. Brushless waterproof motor: high-speed pure copper core powerful motor. More stable operation and ultra-quiet.
B. Control chip: multi-function wiring port, multi-speed adjustment, resistance adjustment, door closing delay adjustment, super large transformer, the function is more convenient.
C. Pure copper motor: quiet and durable. Low energy consumption.
D. Install the infrared sensor: By installing the infrared anti-sensor device, if the door opener blocks the obstacles in the door
Within the monitoring range of the door closing process, the door opener stops closing the door and opens it immediately.
E. In case of power failure, the gate can be manually opened and closed after release.
F. Available for 220V/110V/24V.
| Specifications | G8 set | G10 set | G15 set | G20 set |
| Power supply | 220V/50Hz;110V/60Hz | 220V/50Hz;110V/60Hz | 220V/50Hz;110V/60Hz | 220V/50Hz;110V/60Hz |
| Power of Motor | 370W | 550W | 550W | 700W |
| Output torque | 20Nm | 22Nm | 35Nm | 45Nm |
| Operating Speed | 12m/min | 12m/min | 12m/min | 12m/min |
| Maximum Gate length | 20m | 20m | 20m | 20m |
| Shipping Mass of unit | 12.4kg | 12.7kg | 14.7kg | 15.8kg |
| Maximum Gate Mass | 800kgs | 1000kgs | 1500kgs | 2000kgs |
Complete Kit included:
- 1 x Motor with built in Control Panel
- 4 x Remote Controls
- 2 x Manual clutch Keys
- 1 x Motor mounting base plate
- 1 x Instruction Manual
- 2 x Photocell
- 1 x Flash lamp
- 4 x Gear rack
Standard accessories of automatic sliding gate opener set
* 1 pcs gate motor
* build-in control board
* 4 pcs remote controls
* 2 pair of photocell
* 1 pcs flash lamp
* 4M gear racks
* 2 pcs release keys
* 1 English user manual
* 1 pair of magnets
* 1 metal mounting plate
* bolts & nuts
This is a kit for 2000kgs automatic gate openers
 |
|
|
|
Selling Points
1) Suitable for residential or commercial sliding doors.
2) Remote control or button full open or pedestrian open.
3) Built-in solar regulator and auto-off function.
4) The door automatically stops and reopens when it encounters an obstacle.
5) Manually release the clutch in case of emergency or power failure.
6) Terminals for battery, photocell, flash, solar panel, button, WIFI APP controller.
7) DIY simple installation. Soft start and slow down gently to stop.
8) 1 year warranty. WIFI APP function can be added.
FAQ
1. What is minimum order quantity(MOQ)? 50 sets.
2. What types of shipping method you have? We can ship by ocean shipping for bulk order, UPS/TNT/DHL for sample order.
3. How many days it take if we place order? 1-2 days for sample order, 3-5 days for the order within 30 sets, 5-7 days for 100 sets.
4. What kind of certificates do you have? We have CE certificate for motor, and MSDS for batteries
