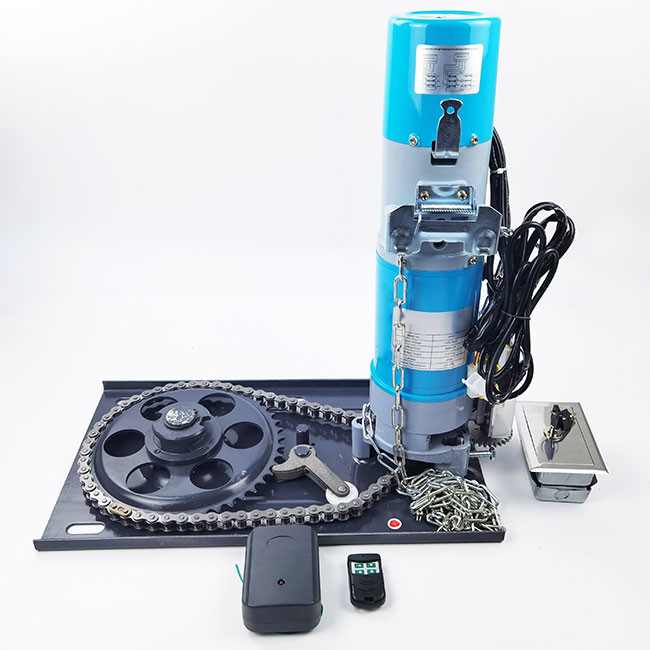

300Kg Motor 220 V Automatic Door Rolling Shutter Motor With Copper Wire
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE，ROHS |
| Model Number: | GR300CU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Type: | AC Side Roller Aluminium Shutter Motor | Color: | Blue,Green,Red Etc. |
|---|---|---|---|
| Phase: | Single Phase | Product Name: | Electric Roller Shutter Motor |
| Warranty: | 1 Year | Material: | Aluminium,Iron,Copper Wire,Aluminum Alloy And ABS |
| Application: | Shopping Mall,Home Use | Copper: | Copper Wire |
| High Light: | Copper Wire Rolling Shutter Motor,220V Automatic Rolling Shutter Motor,300Kg Automatic Rolling Shutter Motor |
||
Product Description
China Supplier 300Kg Motor 220 V Automatic Door Rolling Shutter Motor With Copper Wire
This machine is suitable for rolling shutter doors in shopping malls, garages, warehouses, workshops and other buildings. It operates a push button switch to automatically open or close the rolling shutter. Under special circumstances (power failure, fire alarm or electrical failure), the manual mechanism can be operated to open or close the rolling shutter door. Can be equipped with a remote control to achieve remote operation, with electronic anti-theft function.
Electric security rolling door motors are using general AC motor with mature process, stable quality reasonable prices. Our products are being sold throughout Germany, Thailand, Vietnam, Chile and a host of other countries and regions.
| Model |
Rated voltage (V/Hz) |
Max lifiting force (kg.f) |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Max lifiting height (m) |
Standard Barrel Dim(inch) |
| GR300CU | 220/50 | 300 | 225 | 5.4 | 200 | 6 | 6'' |
gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator
Product Features & Advantages
1. 100% copper winding material inside the motor, so it have a larger capacity and durable than other motors.
2. Overheat protection :The motor is with overheat protect equipment. If the temperature up to 110, the power supply will be cut off automatically to protect the motor. Till the temperature down to 70, it can be used again.

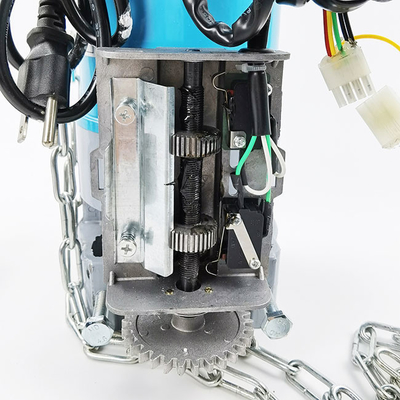

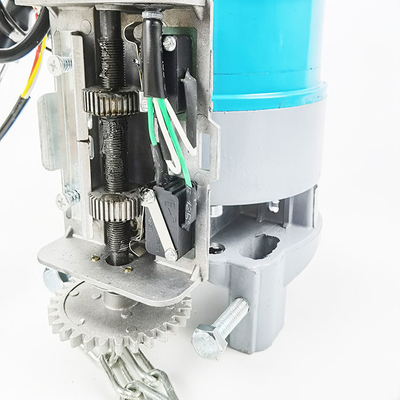

3. Mechanic Limit :Limit switch adjusts the door position in both "up" and "down" precisely and safely.
4. With convenient and stability control function, can be operated by remote control;
5.Manual button: Up, Stop and Down. You can through the manual button which makes the rolling door open and close.

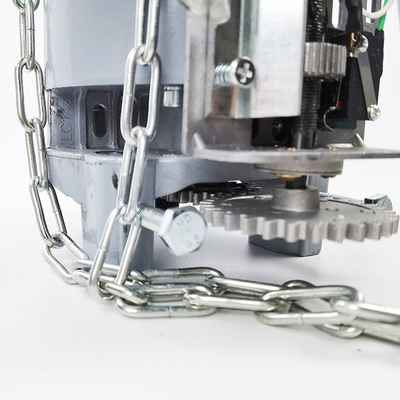

6. Operated by manual chain when power off.
7. Clutch lever: When the power is turned off, you can pull down the clutch lever, the rolling door closed.
8.Noise reduction gear, special thread design, effectively reduce noise. High-strength stainless steel is thickened, stable and not swaying, and enhances service life.
9.UPS lightning protection and rectification, UPS double lightning protection, effectively prevent lightning strikes, safer to use in
 |
|
|
|
Warranty & Feedback
▲12 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
▲ Any warranty shipping cost to us is responsible by buyer.
▲ Any shipping cost to buyer is responsible by the seller.
▲ We committee to the customer satisfaction and want to bring you the best purchase experience. If there is any problems, please contact us ASAP. If not, please leave us a positive feedback as it's very important for us. Thanks very much.
FAQ
1.What's your best price ?
The price is depend on your order quantity.
2.How to order?
STEP 1 - Please send us an inquiry and advise your requirements,such as :material,model,quantity,color and other necessary details.and plsease provide the company name and address at the same time.
STEP 2 - You will received the best price based on your quantity.
STEP 3 - The preforma invoice will be send to your email if the price and other details are confirmed.
STEP 4 - Make down the prepayment or full payment,then we will arrange the production.balance need to be paid before shipping.
STEP 5 - We take the photos for your reference,make relevant documents,keep tracking of the number.
