AC Motor Automatic Sliding Door Opener 800KGS Mechanical Limit Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | GATECH |
| Certification: | CE |
| Model Number: | GCAN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton package |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Name: | Sliding Gate Motor | Open Style: | Sliding |
|---|---|---|---|
| Color: | Gray | Material: | Aluminum |
| Type: | Entry Doors | Feature: | Waterproof |
| Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
| Opening Pattern: | Automatic | Metal Type: | Aluminum |
| Surface Treatment: | Galvanized | Application: | Public Building |
| Usage: | Construction Site | Size: | Width 27cmX Height 32cm |
| Advantage: | Easy Life | Alarm Lighting: | Optional |
| High Light: | Mechanical Limit Switch Sliding Door Opener,Sliding Door Opener 800KGS,50Hz Automatic Sliding Door Opener |
||
Product Description

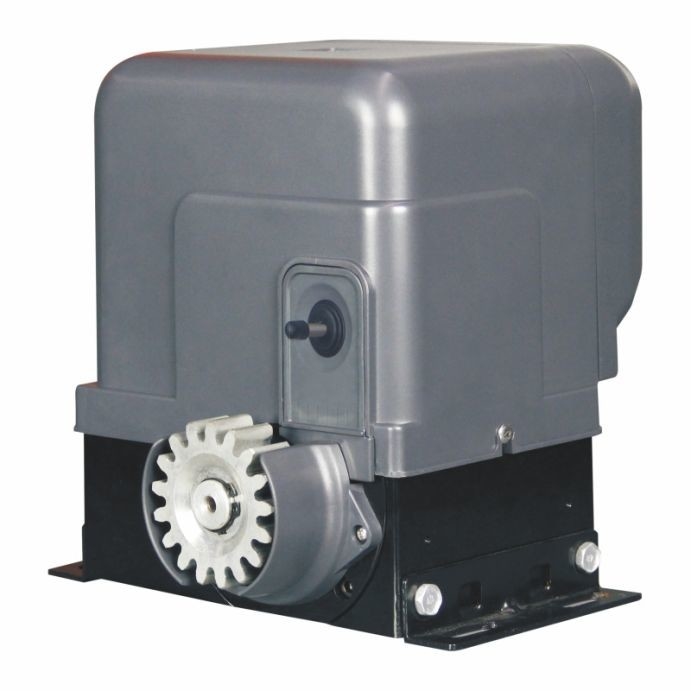

800KGS AC Motor Automatic Mechanical Limit Switch Sliding Door Opener
sliding gate motor automatic sliding door,automatic sliding gate motor dc,sliding gate motor/opener/operatoratic gate opening motors electric gate motors
Gatech technology built-in control board for sliding gate opener, which make it automatical stop against extra resistances.This controller is the latest product developed by our company. It contains an overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor. Electronic parts are connected by SMT technology, more safety, more stable, more secure and reliable.
| Model: | GCAN(AC) | GCAN(DC) |
| Motor power: | AC220V 250W | DC24V 80W |
| Frequency: | 50Hz | ------- |
| W.T(kg) | 14kg | 13.5kg |
| Motor rotational speed: | 1400 r/min | 1200 r/min |
| Output rotational speed: | 46 r/min | 40 r/min |
| Gate max weight: | 800kg | 600kg |
| Gear Box material: | Aluminum alloy | Aluminum alloy |
gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator
Features
A.Magnetic limit switch .
B.Aluminum alloy Gear Box.
C.Thermal protection at 125℃ built in motor winding.
D.In case of power failure,the gate can be opened and closed manually after release cluth.
E.Built-in control board.
F.Proection class IP55.
G.Operating environment Temperature: -20℃~+50℃
a.Easy to install and maintain.
b.Terminals for Push button,Photocell,Flash lamp.
c.Digital display makes Easy Programming.
d.Electronic soft -start, ensures the motor stars steadily and smoothly.
e.Intelligent terminals for photocell, alarm lamp,external receiver, etc.
f.Optional wire control remote contro
Function Introduction
1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging.
2)One touch easy programing,The contronl system learns the open and closing limit automatically.
3)Electronic soft -start, ensures the motor stars steadily and smoothly.
4)Digital display makes Easy Programming.
5)Release key for power failure and looking the operator's cover.
6)Intelligent terminals for photocell, alarm lamp,external receiver, etc.
7)asy to install and maintain,Optional wire control remote control.

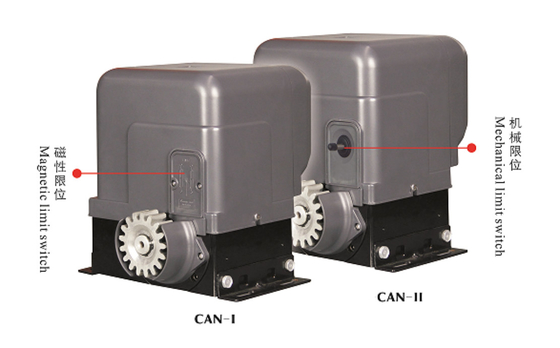

8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional.
9)Release key for power failure.
10)Optional line control or remote control.

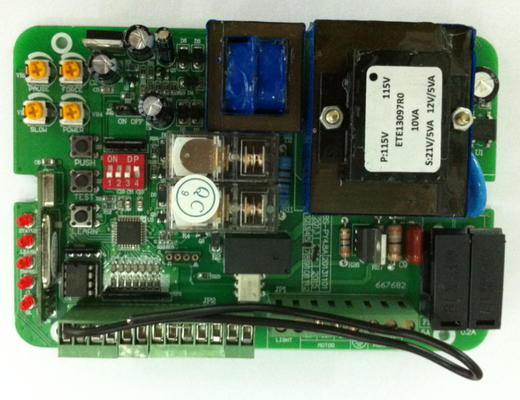

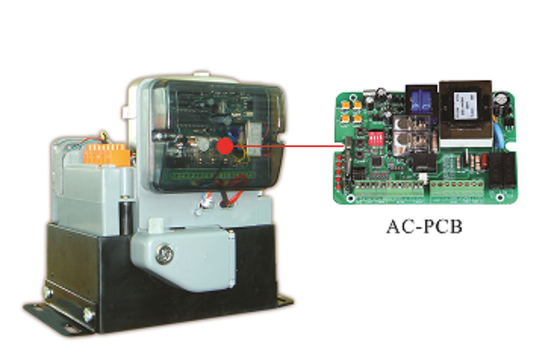

| AC-PCB | |
| 1 | Built-in control board. |
| 2 | Terminals for Push button, |
| 3 | Photocell,Flash lamp. |
| DC-PCB | |
| 1 | Built-in control board. |
| 2 | Terminals for Push button |
| 3 | Photocell,Flash lamp |
|
|
| |
|
|
| |
|
|
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
