1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof

1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G15ST

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor Opener Open Style: Sliding
Color: Gray Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Public Building
Usage: Construction Site Size: Width 27cmX Height 32cm
Advantage: Easy Life Alarm Lighting: Optional
High Light:

Automatic Sliding Gate Opener 1500kg


Sliding Gate Opener 4M Gear Racks


Waterproof Sliding Gate Opener Automatic

Product Description

Automatic Sliding Gate Opener 1500kg With 4M Gear Racks


For more than ten years, we have adhered to the principle of quality as the most important thing, and strictly controlled the products to ensure the longest service life.Our professional salespersons provide you with one-to-one service, and they will provide you with professional solutions.

gate motor sliding gate opener,electric gate opener motor,automatic gate motor,sliding gate motor,sliding gate operator

1500kg automatic sliding gate operator parameter

Specifications G15
Power supply 220V/50Hz;110V/60Hz
Power of Motor 750W
Output torque 35Nm
Operating Speed 12m/min
Maximum Gate length 20m
Shipping Mass of unit 14.7kg
Maximum Gate Mass 1500kgs


Main feature

1.) Totally integrated electrical mechanical system (excludes racks)

2.) Control board interface for optional impact-proof infrared photocells

3.) Alarm lamp interface

4.) Automatic delayed closing

5.) Adjustable resistance sensitivity

6.) Auto gate stop and re-open when an obstacle is encountered

7.) Wireless remote control or wired remote control are optional

Selling Points

1) Suitable for residential or commercial sliding doors.

2) Remote control or button full open or pedestrian open.

3) Built-in solar regulator and auto-off function.

4) The door automatically stops and reopens when it encounters an obstacle.

5) Manually release the clutch in case of emergency or power failure.

6) Terminals for battery, photocell, flash, solar panel, button, WIFI APP controller.

7) DIY simple installation. Soft start and slow down gently to stop.

8) 1 year warranty. WIFI APP function can be added.

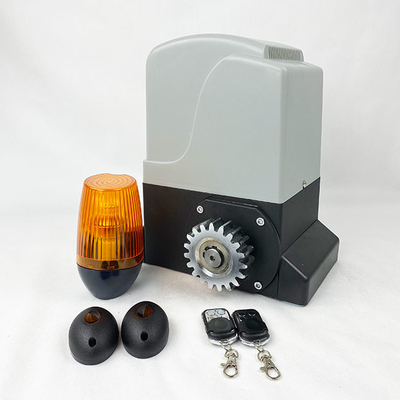

Complete Kit included:

- 1 x Motor with built in Control Panel

- 4 x Remote Controls

- 2 x Manual clutch Keys

- 1 x Motor mounting base plate

- 1 x Instruction Manual

- 2 x Photocell

- 1 x Flash lamp

- 4 x Gear rack


Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor.new product black color spring limit gear driving sliding door opener weighting up to 1500kg

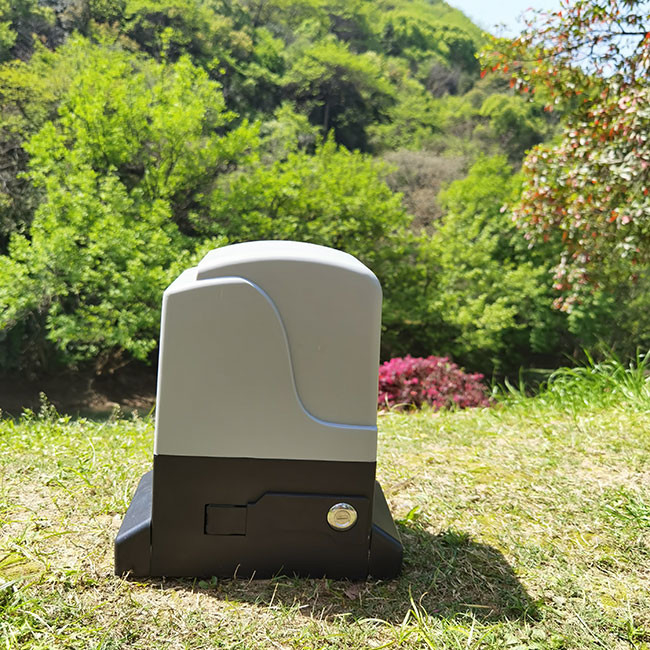

1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof 0

Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor.

electric gate driver for sliding door,sliding door opener with battery,sliding gate motors kit,intelligent sliding gate opener kit

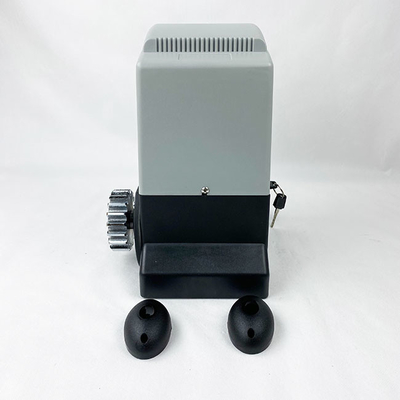

1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof 1

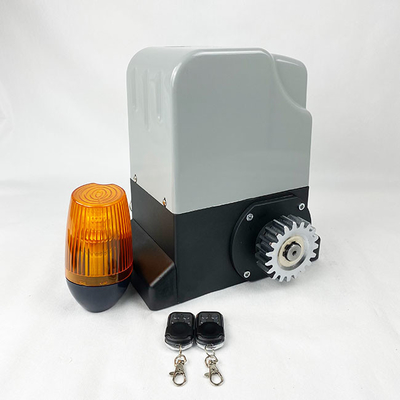

1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof 2

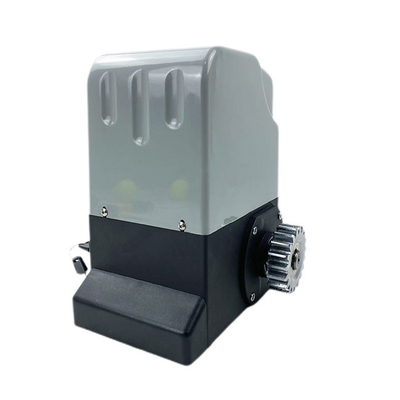

1500kg Automatic Sliding Gate Opener With 4M Gear Racks Waterproof 3


Packaging & Shipping


Packing Details : Standard Export Carton, then in pallet

Delivery Details : Depends on the quantity



1.FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2.By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods!

4.Delivery Time: 3-7 days for samples; 5-25 days for batch goods.


Payment terms

1.Payment: T/T,Paypal,Western Union ,30% deposit before production,70%

balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities




1. Do you have your own factory?

Yes, We are a professional manufacturer of rolling door motor in zhangzhou, we have our own factory and welcome your visit.

2. What is your delivery time?

The time of delivery is about 15 days after receiving deposit, this is decided by order quantity.

3. What is the term of payment?

We accept 30% T/T in advance, and 70% against copy of B/L before shipment.

4. Can you make an OEM for me?

Yes! OEM orders is acceptable, please let's know your requirements, we'll offer you a reasonable price and make samples for you ASAP.

5. Do you provide sample?

Yes, we can provide you with sample, but there's a charge for the sample and shipping cost.
