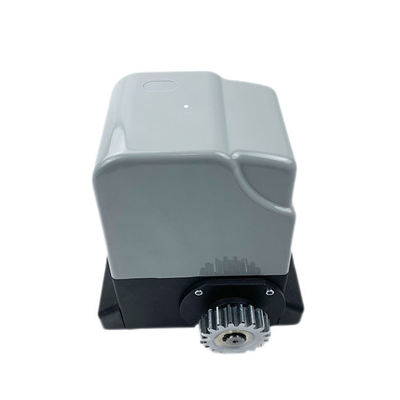

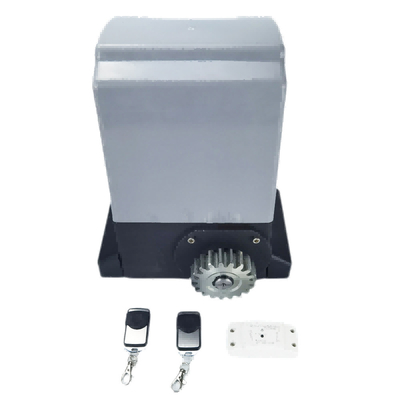

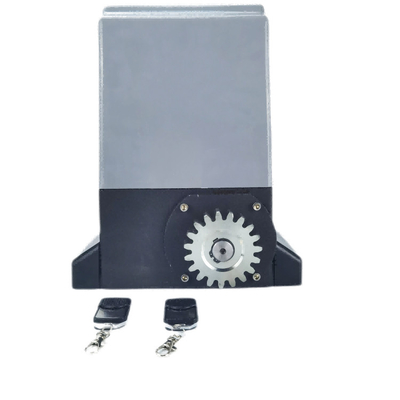

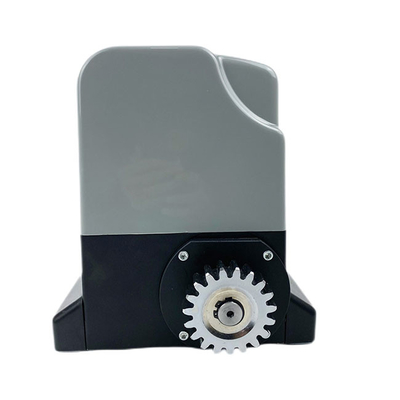

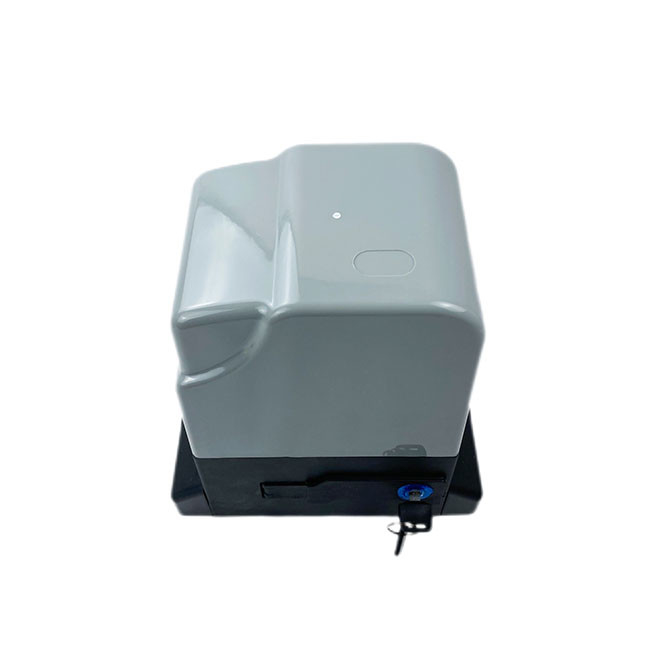

Aluminum 230V 1.5A Wifi Electric Gate Opener 50Hz 60Hz 1400 Rpm IP44

Aluminum 230V 1.5A Wifi Electric Gate Opener 50Hz 60Hz 1400 Rpm IP44

Product Details:

Place of Origin: China
Brand Name: GATECH
Certification: CE
Model Number: G8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Name: Sliding Gate Motor 800 Kg Open Style: Sliding
Color: Red,Green Material: Aluminum
Type: Entry Doors Feature: Waterproof
Frame Finishing: Powder Coated,Galvanized+PVC Coated Frame Material: Metal
Opening Pattern: Automatic Metal Type: Aluminum
Surface Treatment: Galvanized Application: Park,Farm
Usage: Factory And Hospital Size: Width 27cmX Height 32cm
Advantage: Strong, Economical And Practical Alarm Lighting: Optional
High Light:

230V 1.5A Wifi Electric Gate Opener

,

Wifi Electric Gate Opener 50Hz 60Hz

,

Sliding Gate Operator 50Hz 60Hz

Product Description

Ac 110v 800kg Automatic Door Operators Home Use



The control panel can allow partial opening of pedestrian passages up to 3m. It also offers a maximum torque option at initial thrust, providing efficient operation and long life for the system.



When asked about the size of gates that can be automated, you can rest assured that any gate weighing between 200kg and 3000 kg can be automated.



Features:



Power supply: 230 Vac(+6% to -10%) 50 (60) Hz

Electric motor: Single-phase,

Absorbed power: 370 W

Absorbed current: 1.5A

Motor rotation speed: 1400 rpm

Thermal protection on motor winding: 120°C

Clutch: twin disk in oil bath

Operating ambient temperature: -20ºC to + 55ºC

Gate max length: 40m/ 50m

Max weight of gate: 800kg

Gate speed: 9.6m/min/ 12m/min

Operator weight with oil: 14kg

Protection class: IP44





Size of sliding gate motors



Aluminum 230V 1.5A Wifi Electric Gate Opener 50Hz 60Hz 1400 Rpm IP44 0Aluminum 230V 1.5A Wifi Electric Gate Opener 50Hz 60Hz 1400 Rpm IP44 1

The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality





FAQ





What is the input voltage for this gate motors ?

110V input voltage.



What is the Max weight of gate?

Max weight supporting is 800kgs.



How many models do you have for sliding gate openers ?

G6,G8,G15,G20,G30



What is the frequncy of your remote control for this sliding gate motors?

Remote control models are 433Hz.



What is the longest remote control distance in meters?

Long range distance reach 100m.



How many gate motors can be controlled by a remote control?

4 gate motors for a remote control.



Is there a requirement for the MOQ?

One set is workable, but it is special cost for you.



What's the payment you accept?

For sample ,T/T in advance.

For customize order,35% T/T in advance,balance before shipping.

What is your warranty terms?
2 year warranty.

How about the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
